Pioneer VSX-D514 - Manual (Page 29)

Controls and displays 04
29
En
English
Italiano
Français
Nederlands
Español
Deutsch

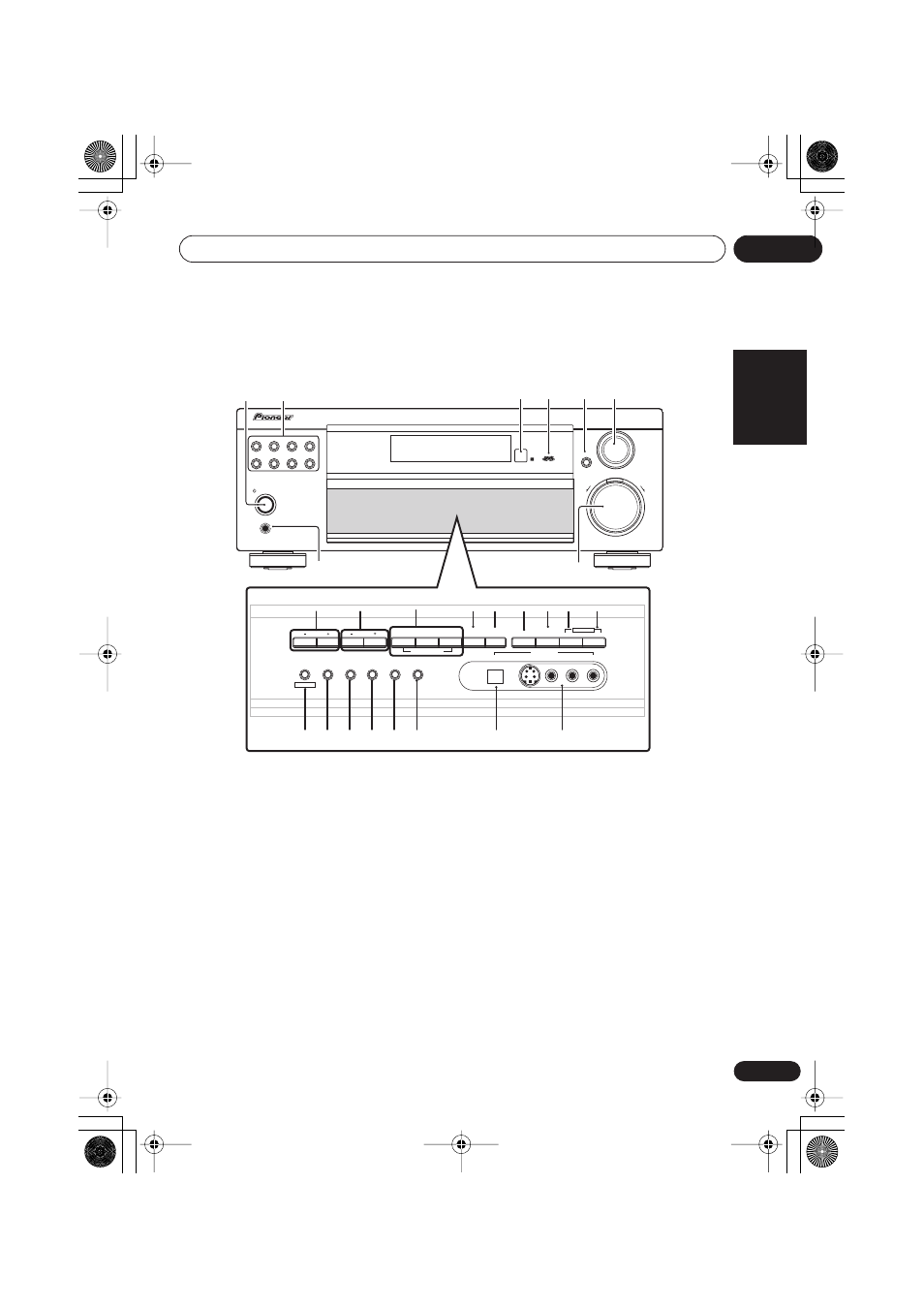

Front panel (VSX-D714/D814)
1 STANDBY/ON
Switches the receiver between on and
standby.
2 Input select buttons
Press to select an input source.
3 Remote sensor
Receives the signals from the remote control.
4 MCACC indicator
Lights after the MCACC setup is complete
(page 52).
5 ENTER
6 MULTI JOG dial
The MULTI JOG dial performs a number of
tasks. Use it to select options after pressing
TONE , QUICK SETUP or TUNER EDIT .
7 MASTER VOLUME
8 PHONES jack
Use to connect headphones. When the
headphones are connected, there is no sound
output from the speakers.
9 STATION +/– buttons
Selects station presets when using the tuner
(page 58).
10 TUNING +/– buttons
Selects the frequency when using the tuner
(page 56).
UP DOWN
MULTI JOG
MASTER VOLUME
ENTER
AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-D814
STANDBY/ON
PHONES
DVD/LD TV/SAT DVR/VCR VIDEO
CD CD-R/ TAPE/MD TUNER AUX
STATION STANDARD SPEAKERS
S-VIDEO DIGITAL IN VIDEO
VIDEO INPUT
L AUDIO R
ADVANCED
SURROUND STEREO/
DIRECT
SIGNAL
SELECT MIDNIGHT/
LOUDNESS
SB CH
MODE TUNING
LISTENING MODE
TONE QUICK SETUP
TUNER EDIT INPUT ATT FL DIMMER CLASS BAND MPX
MULTI JOG
MULTI JOG
1 2
8
5 6 3 4
7
9
25 24 23 22 21 20 18
10 11 12 13 14 15 16 17
19
