5 minute guide

02

11

En

English

Italiano

Français

Nederlands

Español

Deutsch

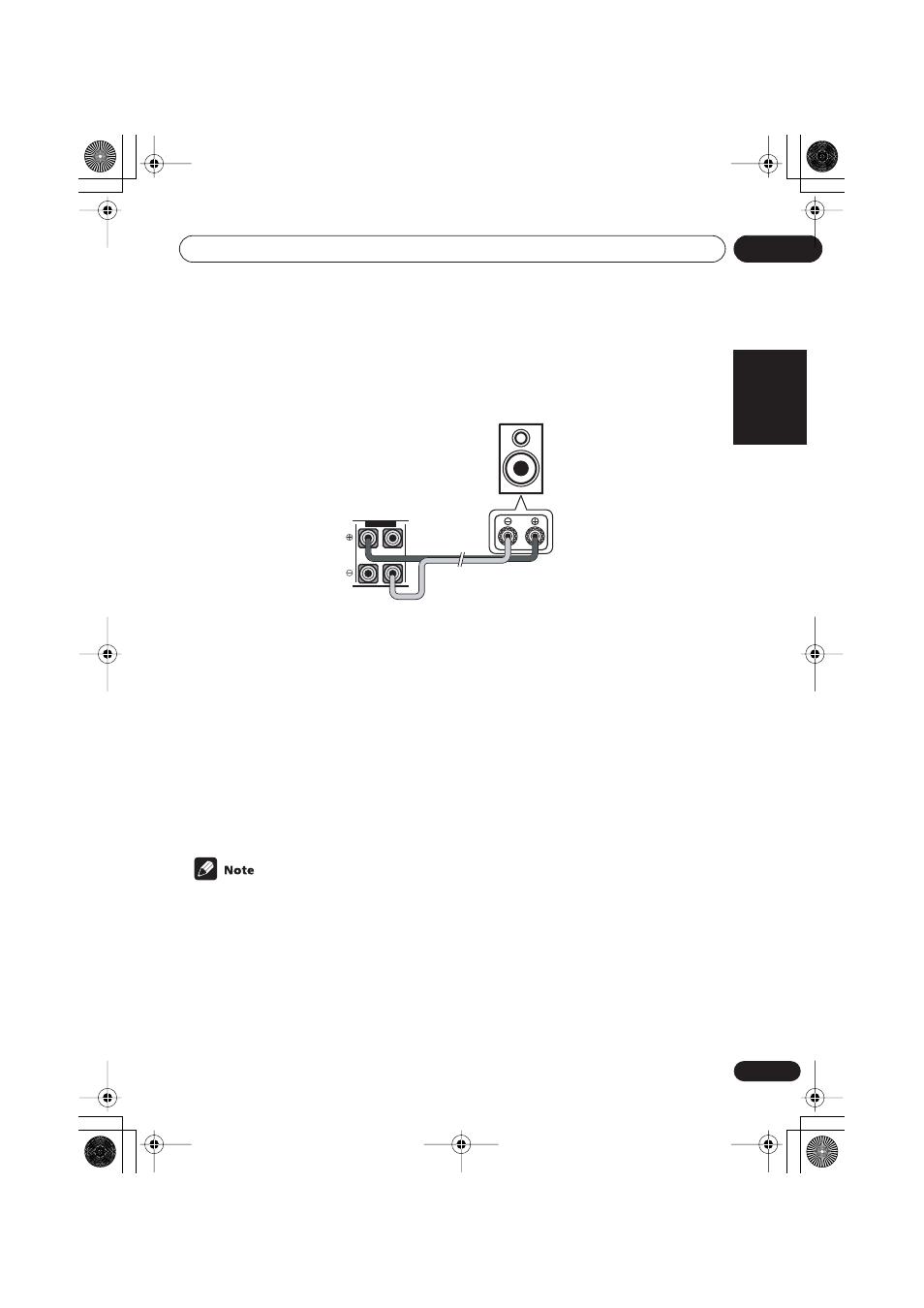

• If you select subwoofer (

SB SW

) in the

Surround back speaker setting

on page 46 you can

hook up a subwoofer instead of speakers to the surround back speaker terminals. Connect
the wires just as above (and as shown below), connecting the positive wire to the right
channel (

+

) terminal, and the negative wire to the left channel (

) terminal.

4

Plug in the receiver and switch it on, followed by your DVD player, your subwoofer

and the TV.

Make sure you’ve set the video input on your TV to this receiver. Check the manual that came
with the TV if you don’t know how to do this.

Also make sure that

DVD/LD

is showing in the receiver’s display, indicating that the DVD input

is selected. If it isn’t, press

DVD

on the remote control to set the receiver to the DVD input.

5

Press QUICK SETUP on the front panel to specify your speaker setup, room size and

listening position.

Use the

MULTI JOG

dial to select and

ENTER

to confirm your selection. See

Using the Quick

Setup

on page 12 if you’re unsure about the settings.

6

Play a DVD, and adjust the volume to your liking.

There are several other sound options you can select. See

Listening to your system

on page 36

for more on this. See also

Choosing your receiver setup

on page 44 for more setup options.

• Depending on your DVD player or source discs, you may only get digital 2 channel stereo

and analog sound. In this case, the listening mode must be set to

STANDARD

(it should

already be set—see

Listening in surround sound

on page 36 if you need to do this) if you

want multichannel surround sound.

R

L

SURROUND BACK

Surround back
speaker (or
subwoofer)

VSX-D814
