Connecting up 03
21
En
English
Italiano
Français
Nederlands
Español
Deutsch

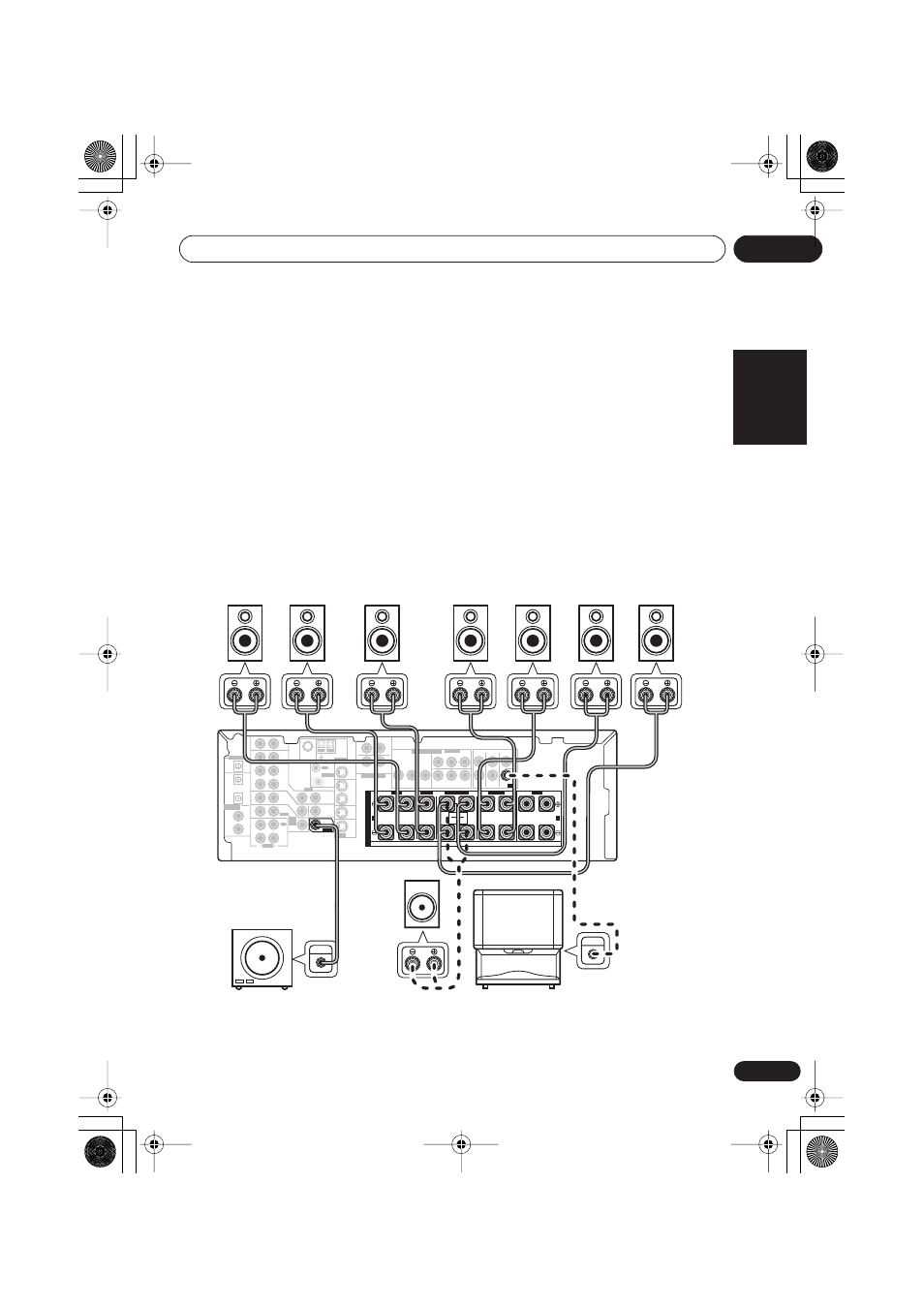

Connecting the speakers (VSX-D814)
A complete setup of eight speakers (including the subwoofer) is shown below, but everyone’s
home setup will vary. Simply connect the speakers you have in the manner shown below. The
receiver will work with just two stereo speakers (the front speakers in the diagram) but using at
least three speakers is recommended, and a complete setup is best for surround sound. If
you’re not using a subwoofer, change the front speaker setting (see
Speaker setting on page 46)
to large.
Make sure you connect the speaker on the right to the right terminal and the speaker on the left
to the left terminal. Also make sure the positive and negative (
+ / – ) terminals on the receiver
match those on the speakers. You can use speakers with a nominal impedance between 6–16 Ω
(please see Switching the speaker impedance on page 72 if you plan to use speakers with an
impedance of less than 8 Ω ).
Be sure to complete all connections before connecting this unit to the AC power source.
ASSIGNABLE
MONITOR OUT
Y P B P R Y P B P R
DVR/ VCR
T V / SAT
DVD /LD
CONTROL
OUT
IN
AM LOOP FM UNBAL 75 Ω
IN
IN
IN
IN
IN
IN
COMPONENT VIDEO
MONITOR OUT
MONITOR OUT
SUB WOOFER
SURROUND
CEN- TER
S-VIDEO
OUT
OUT
VIDEO
SUB
WOOFER
R AUDIO L
IN
IN
IN
IN
IN
OUT
DIGITAL OUT
OUT
IN
OPT
OPT
COAX
COAX
OPT
AUX
CD L R
DVR/ VCR
TV / SAT (TV / SAT)
(DVR/VCR)
(DVD /LD)
(CD)
DVD /LD
PLAY
CD-R / TAPE / MD
FRONT
PREOUT
ASSIGNABLE DIGITAL IN
REC
1
2
1
2
ø
ANTENNA
(T V / SAT) IN
DVD 5.1CH INPUT
( DVD / LD) IN ¥
PREOUT
A B
FRONT R L R
R R
L R L FRONT CENTER SURROUND R L
L L
SURROUND BACK
S I N G L E
S
P
E
A
K
E
R
S
FRONT CENTER
SURROUND BACK
SURROUND
SEE INSTRUCTION MANUAL D V D 5.1CH INPUT
INPUT
AUDIO IN
VSX-D814
Front speakers
L R C LS RS
Powered subwoofer
SW
Passive
subwoofer
or single
surround
back
speaker
TV
Surround speakers
SBL SBR
Surround back speakers Center speaker
