S P E C F I L E
PT-DW10000
3-Chip DLP™ Projector
As of November 2008 < 5 >

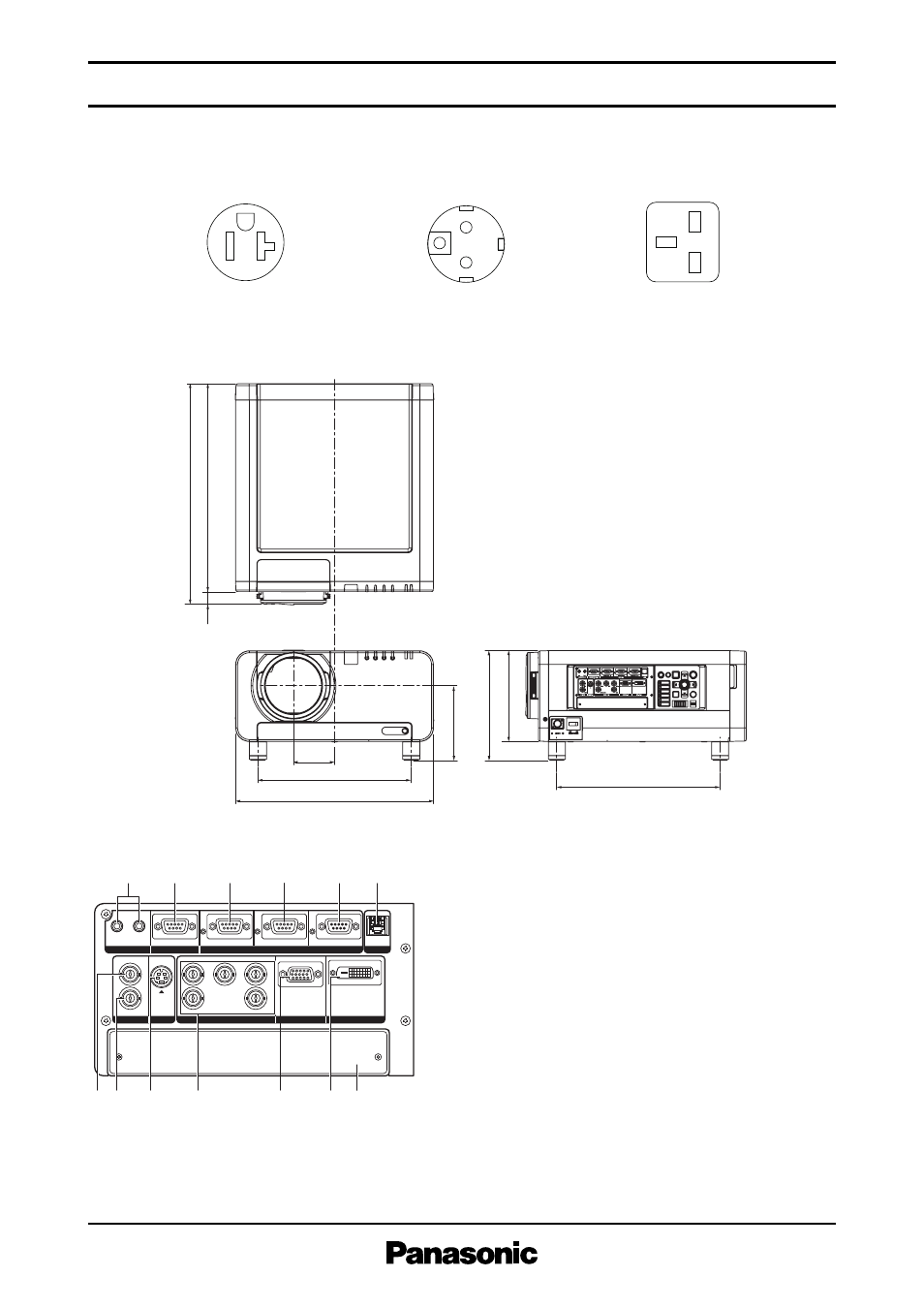

Shape of the plug receptacle
G
W
Note: Be sure to use the power plug adaptor cord supplied with the projector.
The supplied power plug adaptor can be used with the PT-DW10000 only.
120V AC, 20 A 220-240V AC, 16 A 220-240V AC, 13 A/15 A
Dimensions
Terminals
448 (17-5/8˝)
(4-23/32˝)
120
477
(18-25/32˝)
265 (10-7/16˝)
320 (12-19/32˝)
218 (8-19/32˝)
36
(1-13/32˝)
607
(23-29/32˝)
643 (25-5/16˝)
578 (22-3/4˝)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1 Remote 1 input/output
2 Remote 2 input
3 Serial input (RS-232C)
4 Serial input (RS-422)
5 Serial output (RS-422)
6 LAN connector
(10Base-T/100Base-TX)
7 Video input
8 Video output
9 S-Video input
10 RGB 1 (YP B P R ) input
11 RGB 2 Input
12 DVI-D input
13 Optional board slot
REMOTE 1 REMOTE 2 IN SERIAL LAN
VIDEO S-VIDEO IN RGB 1 IN DVI-D IN RGB 2 IN
IN
IN R/P R G/Y B/P B
SYNC/HD VD OUT
OUT RS-232C IN RS-422 IN RS-422 OUT
1
7 8 9 10 11 12 13
2 3 4 5 6
