Panasonic AG-EZ50UP User Manual
Page 9
9

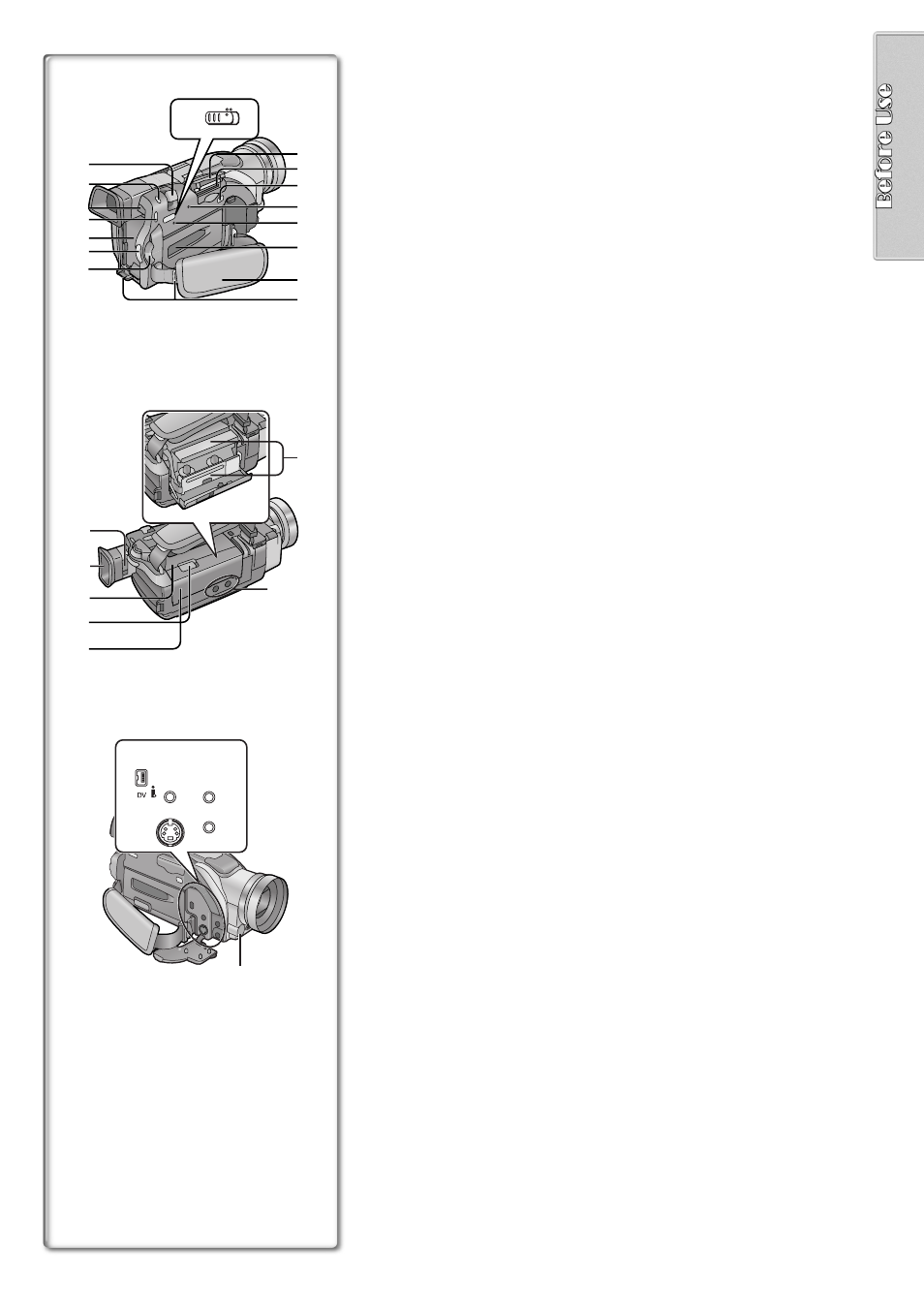

43)
44)
45)
46)
47)
25)
26)
27)
28)
29)
30)
31)
33)
34)
35)
36)
37)
38)
39)
40)
32)
TAPE
CARD
41)
42)
53)
AV IN/OUT
PHONES
MIC
AUX
S-VIDEO IN/OUT
48)
51)
52)
49)
50)
25) Zoom Lever [W/T] (
l 21, 22)
26) Photoshot Button [PHOTO SHOT] (
l 21, 34)
27) Battery Eject Button [BATT. EJECT] (
l 12)
28) Operation Mode Lamps [CAMERA/VCR/CARD P.B.] (
l 14, 20, 28, 35)
29) Battery Holder (
l 12)
30) Recording Start/Stop Button (
l 20)
31) Power Off/On Mode Selector Switch [OFF/ON/MODE] (
l 14)
32) Tape/Card Photoshot Selector [TAPE/CARD] (
l 21, 34)
33) Card Slot Cover (
l 34)
34) Card Slot (
l 34)
35) Card Slot Cover Open Lever [OPEN] (
l 34)
36) Card Access Lamp [ACCESS] (
l 34)
37) Reset Button [RESET] (
l 55)
38) Cassette Compartment Window (
l 13)
39) Grip Belt (
l 13)
40) Shoulder Strap Holders (
l 13)
41) Eyepiece Corrector Knob (
l 14)
42) Viewfinder (
l 14, 51)
.........................................................................................................................
≥Due to limitations in LCD production technology, there may be some
tiny bright or dark spots on the Viewfinder screen. However, this is not
a malfunction and does not affect the recorded picture.
.........................................................................................................................
43) Upper Cassette Compartment Cover (
l 13)
44) Cassette Eject Lever [OPEN/EJECT] (
l 13)
45) Lower Cassette Compartment Cover (
l 13)
46) Cassette Holder (
l 13)
47) Tripod Receptacle (Tripod Mounting Hole)
≥Used for mounting the Camera/Recorder on an optional tripod.
48) DV Input/Output Terminal (i.LINK) [
¥] (l 42)
≥Connect this to the digital video equipment.
49) Auxiliary Terminal [AUX]
50) Audio-Video Input/Output Jack [AV IN/OUT] (
l 33, 41)
Headphone Jack [PHONES]
(
l 48)
≥When a cable is connected to this jack, the built-in speaker of the
Camera/Recorder is disabled.
51) S-Video Input/Output Jack [S-VIDEO IN/OUT] (
l 33, 41)
52) Microphone Jack [MIC] (
l 33, 48)
≥Connect with an external microphone or audio equipment. (When this
jack is in use, the built-in microphone does not function.)
53) White Balance Sensor (
l 25, 52)
