Operations Manual (OM705-00)

10

Connecting Optional Stereo Speakers

1. Connect the supplied audio cable to the line-out port of the computer’s audio

card.

2. Connect the other end of the audio cable to the monitor’s line-in port (see

Figure 5, which also shows the video cable attached).

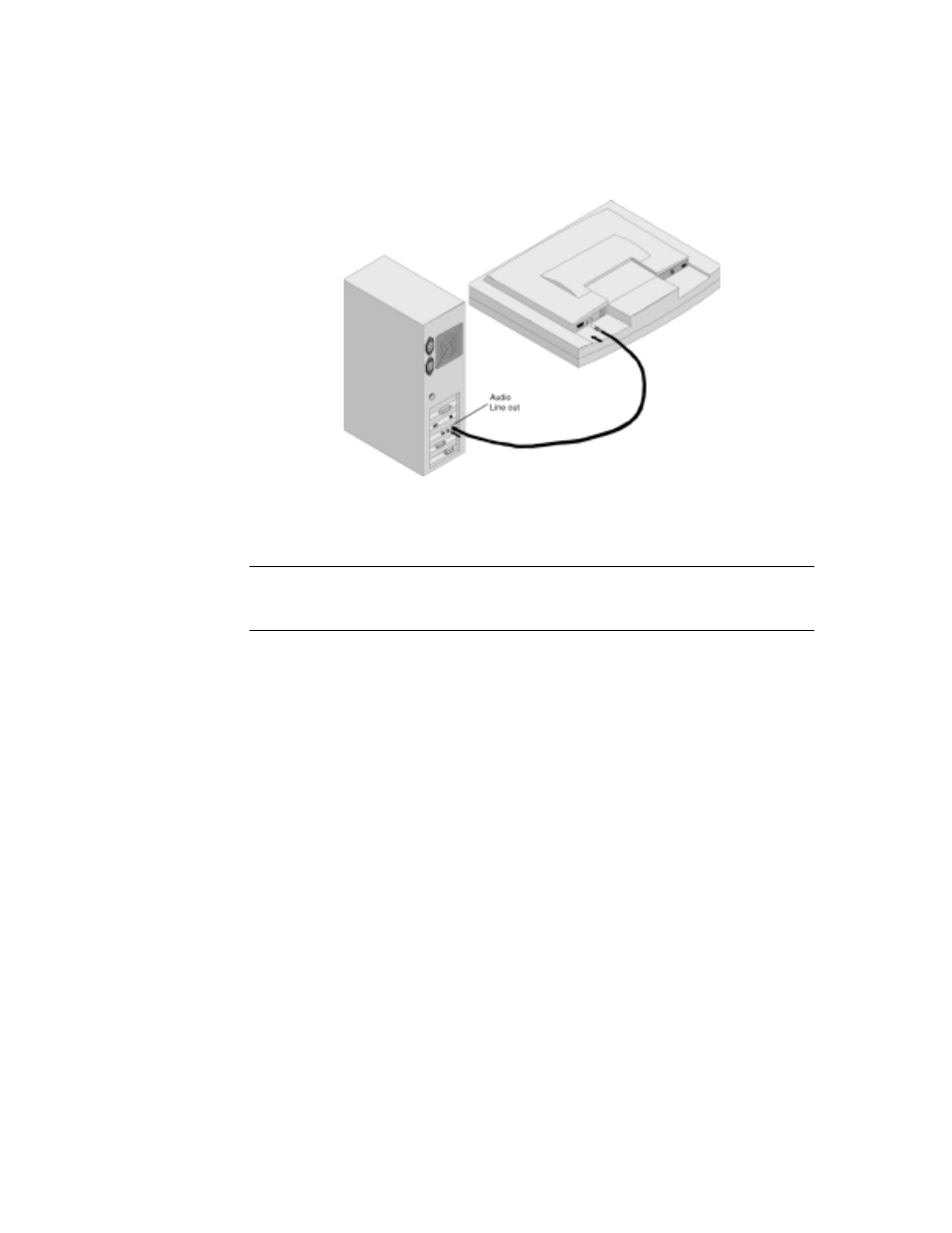

Figure 5: Connecting the Stereo Speakers

3. Adjust the sound volume of the stereo speakers by using the volume control

function on the OSD.

Note: Planar does not recommend using the audio from the monitor
speakers as the exclusive audio source in medical applications—
especially as an alarm indicator.
