28

www.pridemobility.com

Jazzy 610 Series

V . C O M F O R T A D J U S T M E N T S

Foot Platform Angle Adjustment

You can adjust the angle of the foot platform with a hex key.
See figure 19.

To adjust the foot platform angle:
1. Flip up the foot platform and locate the setscrew and

jam nut.

2. Loosen the jam nut.
3. Turn the setscrew counterclockwise to raise the front

of the platform or clockwise to lower the front of the
platform.

4. Tighten the jam nut to secure the setscrew.

Swing-away Footrests

Swing-away Footrests (SFRs) enable you to rotate the foot-
rests to the side before you transfer onto or off or your power
chair. See figure 20.

To rotate the SFRs:
1. Push in the release lever.
2. Rotate the SFRs.

To adjust the SFR length:
1. Remove the two adjustment screws from the side of

each footrest extension.

2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.

Elevating Leg Rests

Elevating Leg Rests (ELRs) offer an infinite range of adjust-
ment for the leg angle and a footrest adjustment range of
12–19 in. (30.5–48.25 cm). See figure 21.

To rotate the ELRs:
1. Push in release lever A.
2. Rotate the ELRs.

To adjust the ELR angle:
1. Push down release lever B.
2. Move the leg rest to the desired angle.

To adjust the ELR length:
1. Remove the two adjustment screws from the side of

each leg rest extension.

2. Slide the leg rest up or down to the desired length.
3. Reinstall the two adjustment screws.

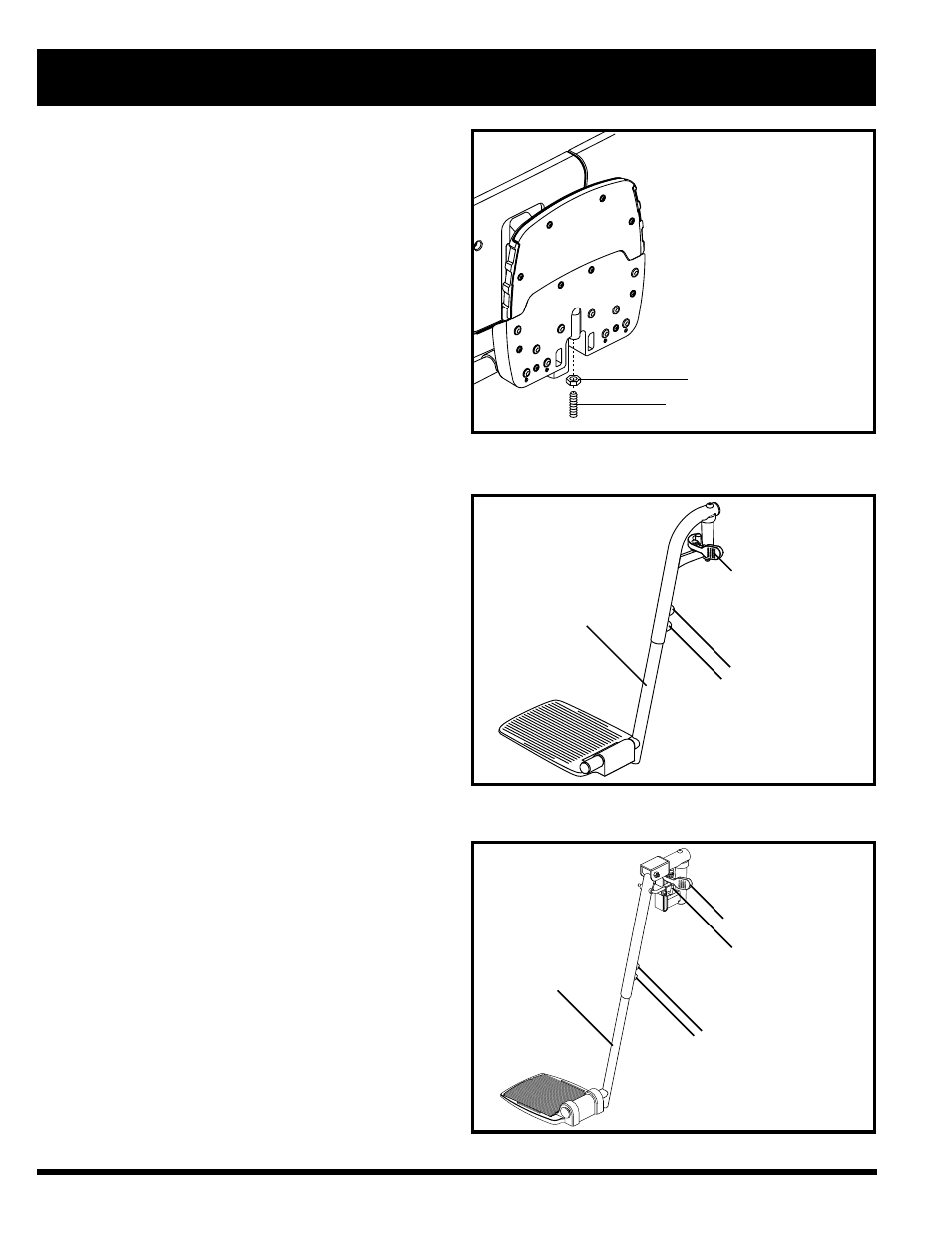

Figure 19. Underside of Foot Platform

SETSCREW

JAM NUT

Figure 20. Swing-Away Footrests

ADJUSTMENT
SCREWS

FOOTREST
EXTENSION

SFR RELEASE LEVER

ADJUSTMENT
SCREWS

RELEASE LEVER B

Figure 21. Elevating Leg Rests

RELEASE LEVER A

LEG REST
EXTENSION
