Panasonic WJ-RT208 - Manual (Page 16)

16

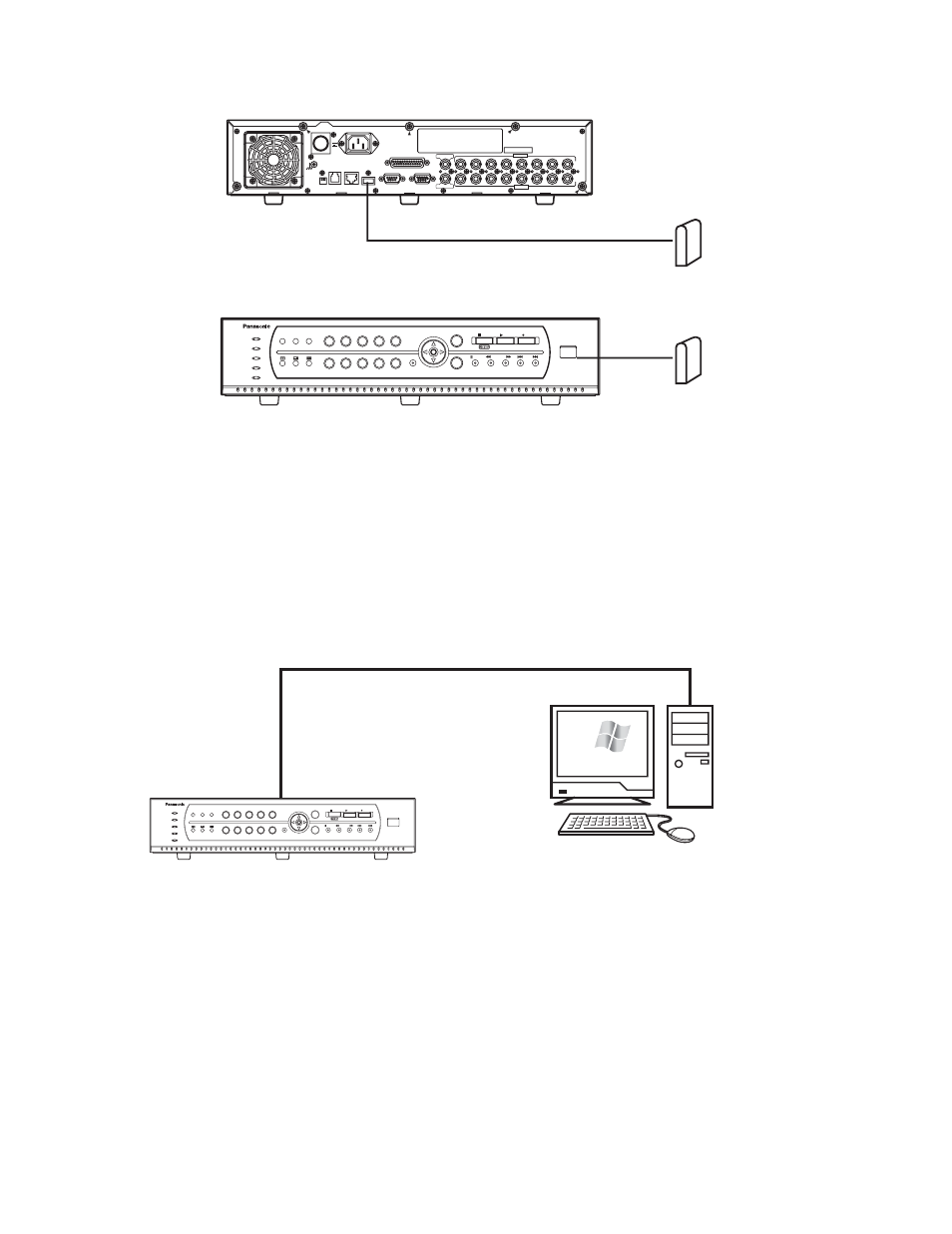

● Connection with External HDD (For Data Backup)
■ Example for Network System Connection
● Direct PC Connection
ERROR
ALARM
HDD
TIMER
OPERATE
1 2 3 4 5
6 7 8 9 0
MENU
ESC
ALARM RESET SEQUENCE STILL
PAUSE REV FWD SKIP
STOP PLAY REC
COPY 2
SET
To COPY1 port USB cable (Locally procured)
External HDD
External HDD
MODE DATA 10/100BASE-T COPY1 SERIAL MONITOR(VGA)
TERMINAL/CONTROL
AUDIO OUT
VIDEO OUT
AC IN
SIGNAL GND
POWER 1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
ON
OFF
VIDEO IN
AUDIO IN
Digital Disk Recorder WJ-RT
208 208
Windows xp
Microsoft
IP Address: 192.168.0.88
Subnet Mask: 255.255.255.0
IP Address: 192.168.0.x (except 0, 88 and 255)
Subnet Mask: 255.255.255.0
PC/AT Compatible
LAN cable (Not provided: 10Base-T/100Base-Tx, Category 5, Cross)
ERROR
ALARM
HDD
TIMER
OPERATE
1 2 3 4 5
6 7 8 9 0
MENU
ESC
ALARM RESET SEQUENCE STILL
PAUSE REV FWD SKIP
STOP PLAY REC
COPY 2
SET
Digital Disk Recorder WJ-RT
208 208
