“Large” Advantages–
• You will probably get better blending
between main speaker and subwoofer.
• The bass “attack” or “tightness” may
be better
• Imaging may be more even, seamless
and natural
HOW THE PSW1200 CAN HELP
If your system has no bass manage-
ment/speaker setup feature or if it does
not meet your needs, the PSW1200 can
help. For example, if you are torn
between setting your front main speak-
ers as “Large” or “Small”, you can use
the high pass filters on the PSW1200 to
roll off their response at 40 Hz instead
of relying on the fixed 80 Hz filter in
your receiver or processor.
Here’s another example: you have a
large full-range Center speaker like the
Polk CS1000p. You want it to play
Center bass frequencies (for better
imaging) and you also want to send
those Center bass frequencies to the
Subwoofer (to get better system
impact). But if you set your center to
“Large” and you hook up the Subwoofer
7
INPUT
CENTER PRE OUT
CENTER
SPEAKER
RECEIVER OR PROCESSOR
FULL RANGE CENTER
SPEAKER
Bass Management/
Speaker Setup
Center: LARGE (WIDE)
+ –
+ –
VARIABLE
LOW PASS
CROSSOVER
40Hz 120Hz
VARIABLE
PHASE
ALIGNMENT
0 ° 180 °
SWITCHABLE
HIGH PASS
CROSSOVER
(SPEAKER LEVEL)
SWITCHABLE
HIGH PASS
CROSSOVER
(LINE LEVEL)
ON OFF AUTO
40HZ 80HZ
40HZ
80HZ
FULL RANGE
POWER
FRONT
FRONT
LEFT
OUT
LEFT
IN
LEFT
REAR
IN
CENTER 1
IN
FRONT
RIGHT
OUT
RIGHT
FRONT
IN
RIGHT
REAR
IN
CENTER 2
IN
LFE/SUBWOOFER IN
FRONT SPEAKER LEVEL OUT
L R
+
–
L R
FRONT SPEAKER LEVEL IN
+
–

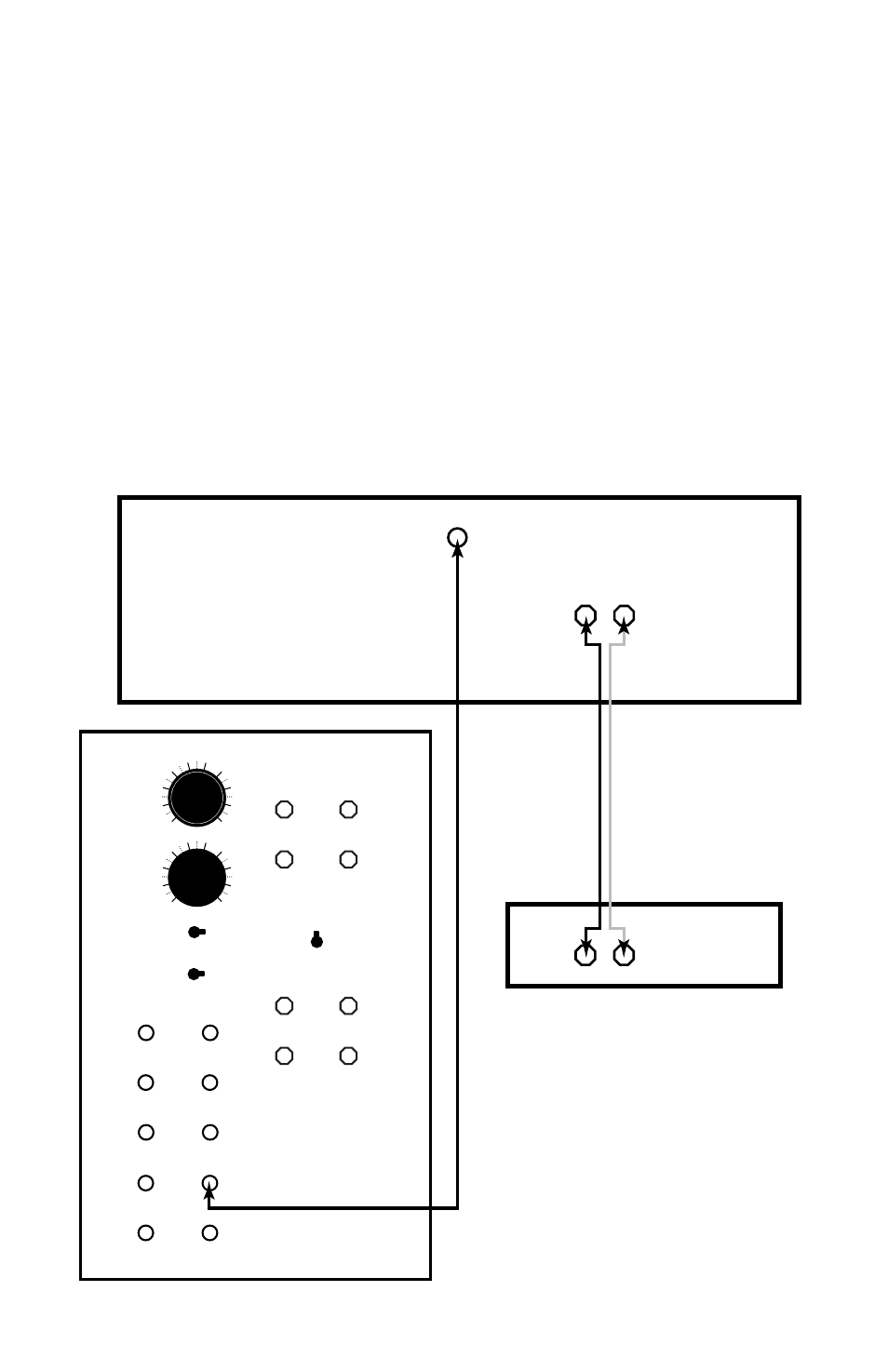

FIGURE 2.
