AC POWER
The PSW1200 has a built-in power
amplifier and must be plugged into a
standard household 110-120V AC power
source in order to operate.
The power switch has three positions:
“On,” “Off” and “Auto” (Fig. 16). In the
“Auto” position, the amplifier will auto-
matically turn on, and the green pilot
light on the front of the subwoofer will
illuminate, as soon as the speaker sens-
es a signal coming from your electron-
ics. The amplifier and the green pilot
light will turn off approximately 15 min-
utes after input signal ceases. In the
“On” position, the power amplifier will
operate and the green pilot light will
illuminate until the switch is set to “Off”
position or the AC cord is disconnected
from a power source.
SUBWOOFER ADJUSTMENTS
SUBWOOFER LEVEL
C O N T R O L –
Subwoofer level is adjustable
via the knob on the front of the sub-
woofer under the logo pod (Fig. 17).
Play a piece of music that has an aver-
age amount of bass
content. Adjust by ear using a variety of
CDs and video sources. Adjust for deep,
powerful bass, avoiding “boominess.”
VARIABLE
LOW PASS
CROSSOVER
40Hz 120Hz
VARIABLE
PHASE
ALIGNMENT
0 ° 180 °
SWITCHABLE
HIGH PASS
CROSSOVER
(SPEAKER LEVEL)
SWITCHABLE
HIGH PASS
CROSSOVER
(LINE LEVEL) 40HZ 80HZ
40HZ
80HZ
FULL RANGE
POWER
FRONT
FRONT
LEFT
OUT
LEFT
IN
LEFT
REAR
IN
CENTER 1
IN
FRONT
RIGHT
OUT
RIGHT
FRONT
IN
RIGHT
REAR
IN
CENTER 2
IN
LFE/SUBWOOFER IN
FRONT SPEAKER LEVEL OUT
L R
ON OFF AUTO
40HZ 80HZ
POWER
ON OFF AUTO
+
–
+
–

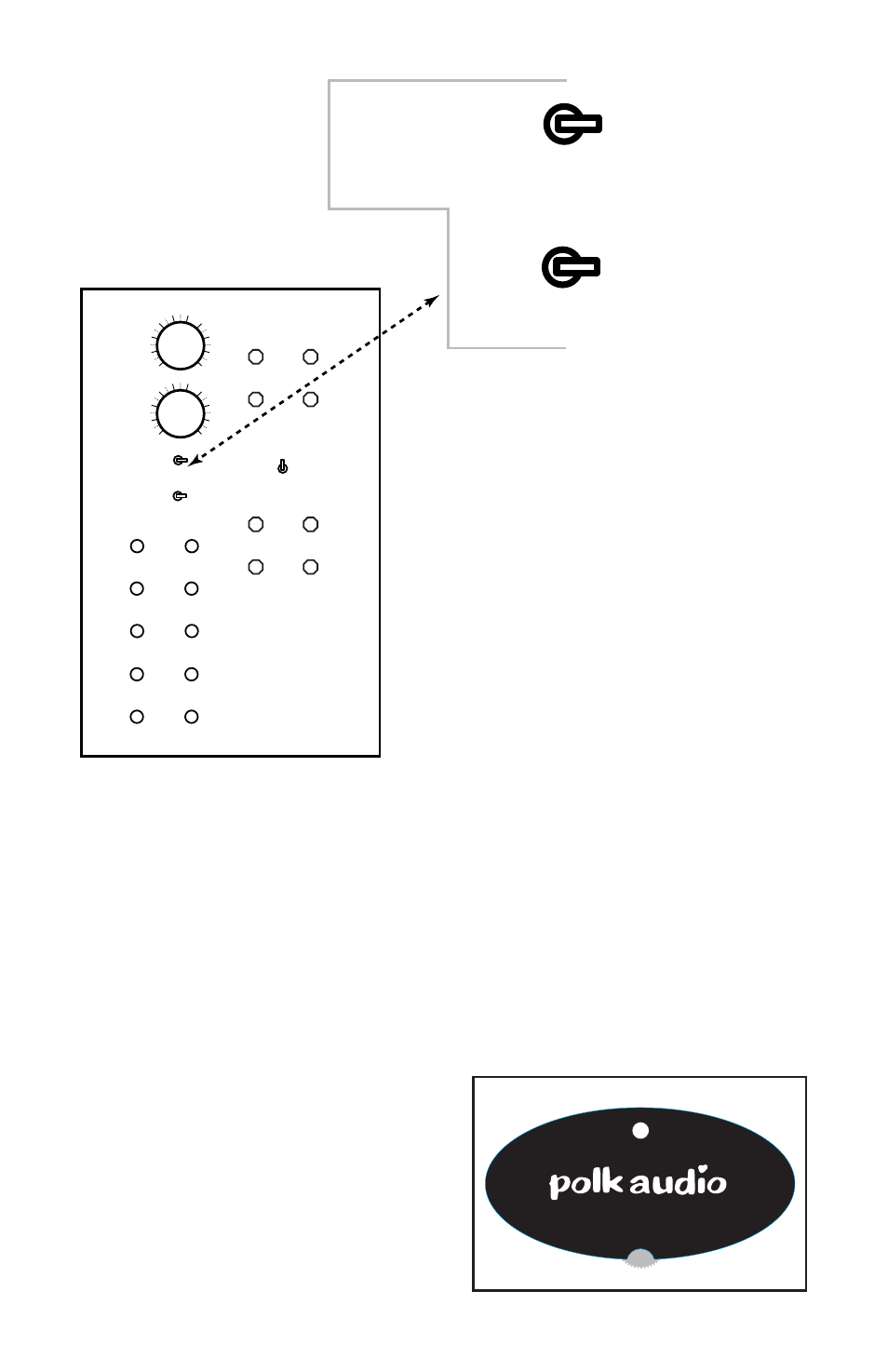

FIGURE 16.
