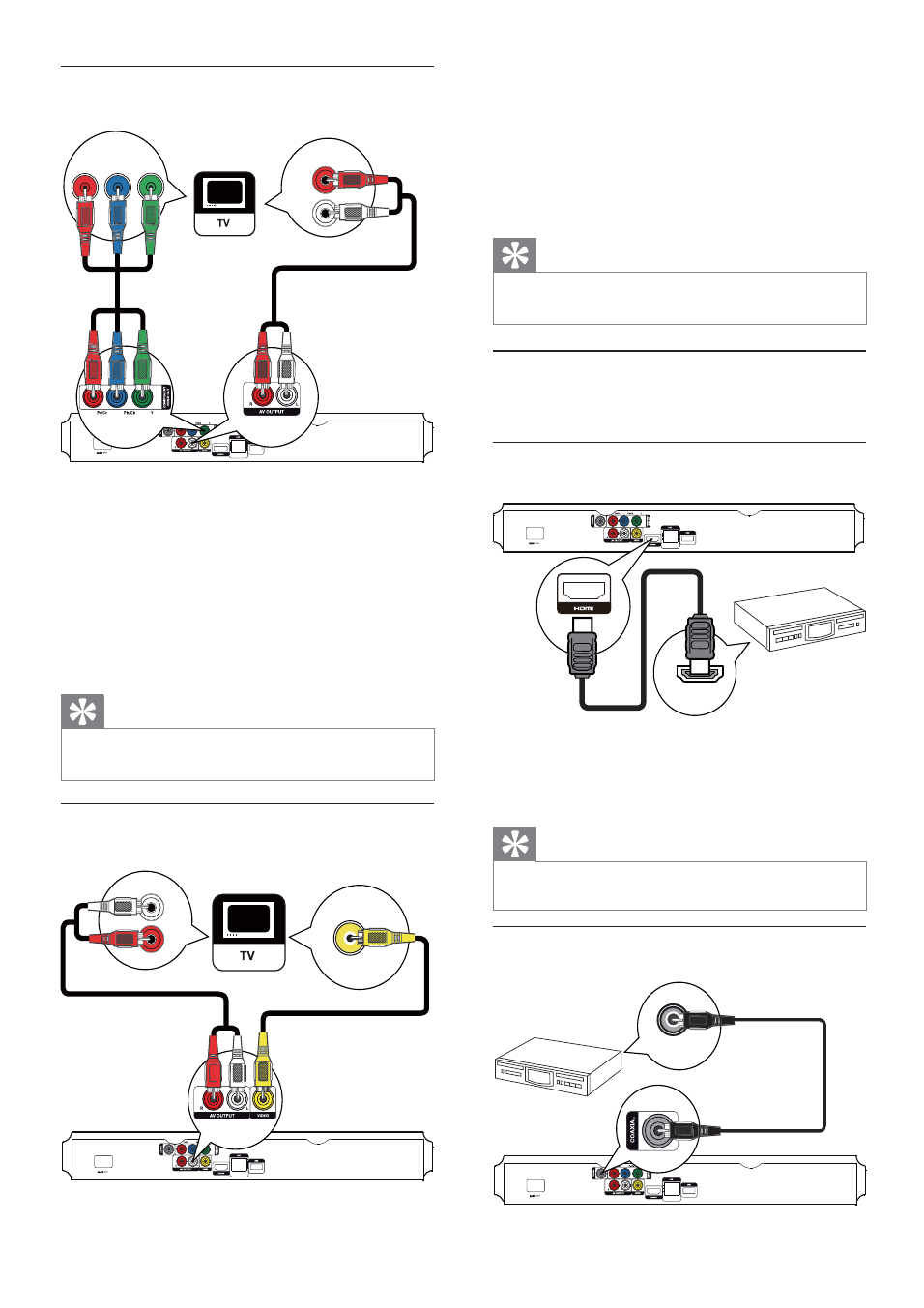

Connect a composite video cable to:

the

VIDEO jack on this product.

the VIDEO input jack on the TV.

2

Connect the audio cables to:

the

AV OUTPUT-L/R jacks on this

product.
the AUDIO input jacks on the TV.

Tip

The video input jack on the TV might be labeled as A/V

IN, VIDEO IN, COMPOSITE or BASEBAND.

Route audio to other devices

You can route the audio from this product to other
devices.

Connect to an HDMI-compliant AV
receiver/amplifier

1

Connect an HDMI cable (not supplied) to:

the

HDMI jack on this product.

the HDMI jack input jack on the device.

Tip

The HDMI connection provides best audio quality.

Connect to a digital AV amplifier/receiver

Connect to a coaxial jack

HDMI IN

COAXIAL

Option 2: Connect to the component
video jack

1

Connect the component video cables (not
supplied) to:

the

Y Pb/Cb Pr/Cr jacks on this product.

the COMPONENT VIDEO input jacks

on the TV.

2

Connect the audio cables to:

the

AV OUTPUT-L/R jacks on this

product.
the AUDIO input jacks on the TV.

Tip

The component video input jack on the TV might be

labeled as Y Pb Pr or YUV.

Option 3: Connect to the composite
video jack

Pb

Y

Pr

AUDIO IN

AUDIO IN

VIDEO IN
