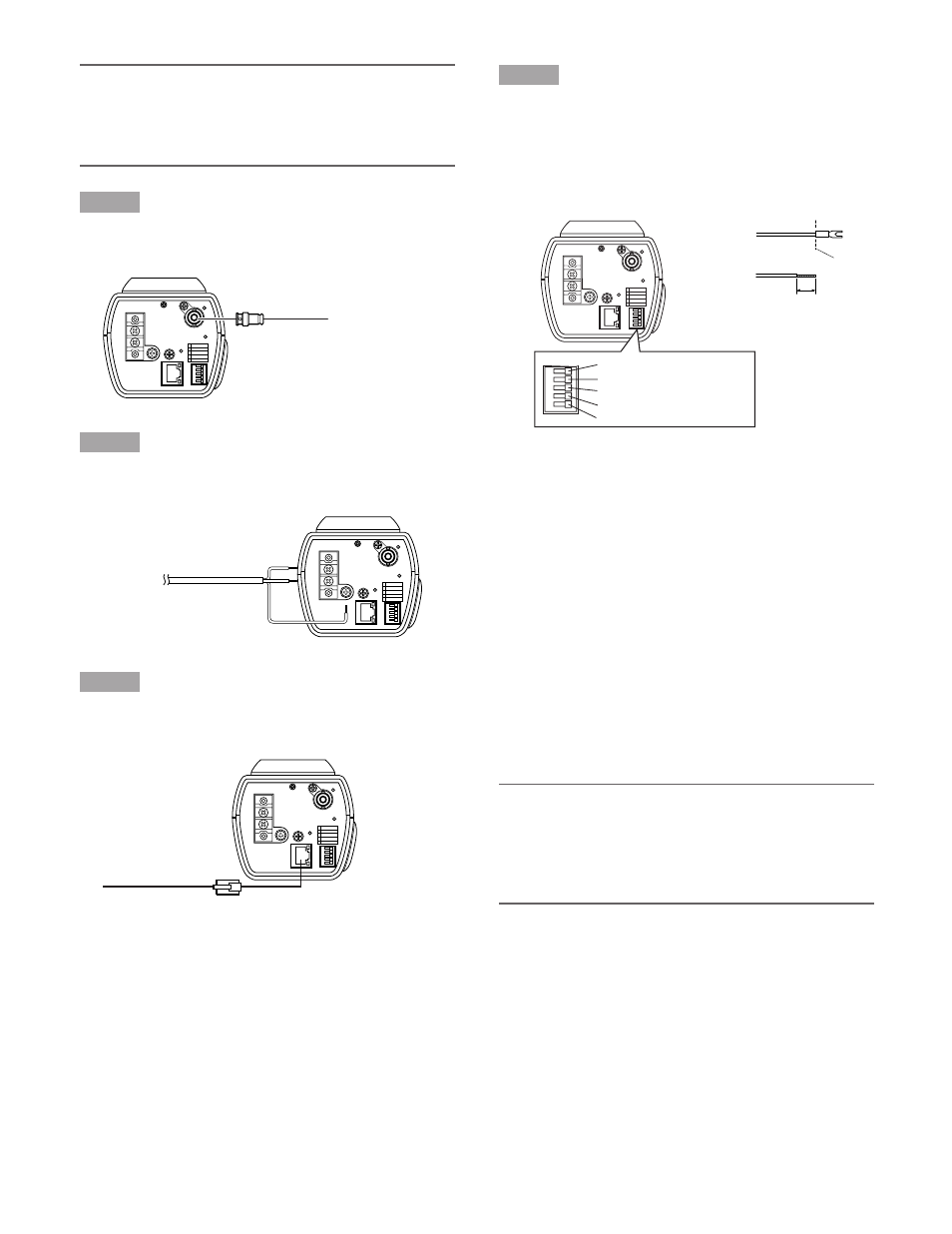

Step 6

Connect an external device to the EXT I/O connector.
When connecting an external device, remove 9 mm – 10
mm of the outer jacket of the cable and twist the cable core
to prevent the short circuit first.
Specification of cable (wire): AWG22 - AWG28

Single core, twisted

ALARM IN: 5 V DC pull-up, Drive ability 0.5 mA or more
ALARM OUT: Open collector output

OPEN: Open or DC 4 V – DC 5 V
Maximum applied voltage: 20 V
CLOSE: Make contact with GND (50 mA or less)

AUX OUT: Open collector output

OPEN: Open or DC 4 V – DC 5 V
Maximum applied voltage: 20 V
CLOSE: Make contact with GND (50 mA or less)

DAY/NIGHT IN: 5 V DC pull-up, Drive ability 0.5 mA or

more
Color: Open
BW: Short circuit

* To validate the color/BW input, select "EXT" for "BW

MODE". (

→ page 18)

Important:

• Do not connect 2 wires or more directly to a terminal.

When it is necessary to connect 2 wires or more, use a
splitter.

• Connect an external device with verifying that the rat-

ings are within the specifications above.

14

Important:

Safety wire differs depending on the model and installa-
tion height of camera mounting bracket (option).
Procure the optional safety wire kit suited for installa-
tion. Refer to "Select Safety Wire Kit." for details.

Step 3

Connect a coaxial cable (optional) to the video out connec-
tor.

Step 4

Connect the AC inlet on the rear of the camera and the AC
outlet with a power cable. (locally procured)

Step 5

Connect a LAN cable (category 5 or better) to the network
connector on the rear of the camera.

AC 24V,
60 Hz

Power cable (provided)

1
2
3
4
5

ACT

VIDEO OUT

10BASE-T/
100BASE-TX

LINK

POWER

SD CARD

GND

AC24V

IN

1-L

2-N

1
2
3
4
5

GND
DAY/NIGHT IN
AUX OUT
ALARM OUT
ALARM IN

LAN cable

1
2
3
4
5

ACT

VIDEO OUT

10BASE-T/
100BASE-TX

LINK

POWER

SD CARD

GND

AC24V

IN

1-L

2-N

1
2
3
4
5

GND
DAY/NIGHT IN
AUX OUT
ALARM OUT
ALARM IN

Cut

Approx. 9 mm - 10 mm

1
2
3
4
5

ACT

VIDEO OUT

10BASE-T/
100BASE-TX

LINK

POWER

SD CARD

GND

AC24V

IN

1-L

2-N

1
2
3
4
5

GND
DAY/NIGHT IN
AUX OUT
ALARM OUT
ALARM IN

GND
DAY/NIGHT IN (color/BW in)
AUX OUT
ALARM OUT
ALARM IN

1
2
3
4
5

ACT

VIDEO OUT

10BASE-T/
100BASE-TX

LINK

POWER

SD CARD

Coaxial cable
(optional)

Connect to the
video monitor, etc.

AC24V

IN

1-L

2-N

GND

1
2
3
4
5

GND
DAY/NIGHT IN
AUX OUT
ALARM OUT
ALARM IN
