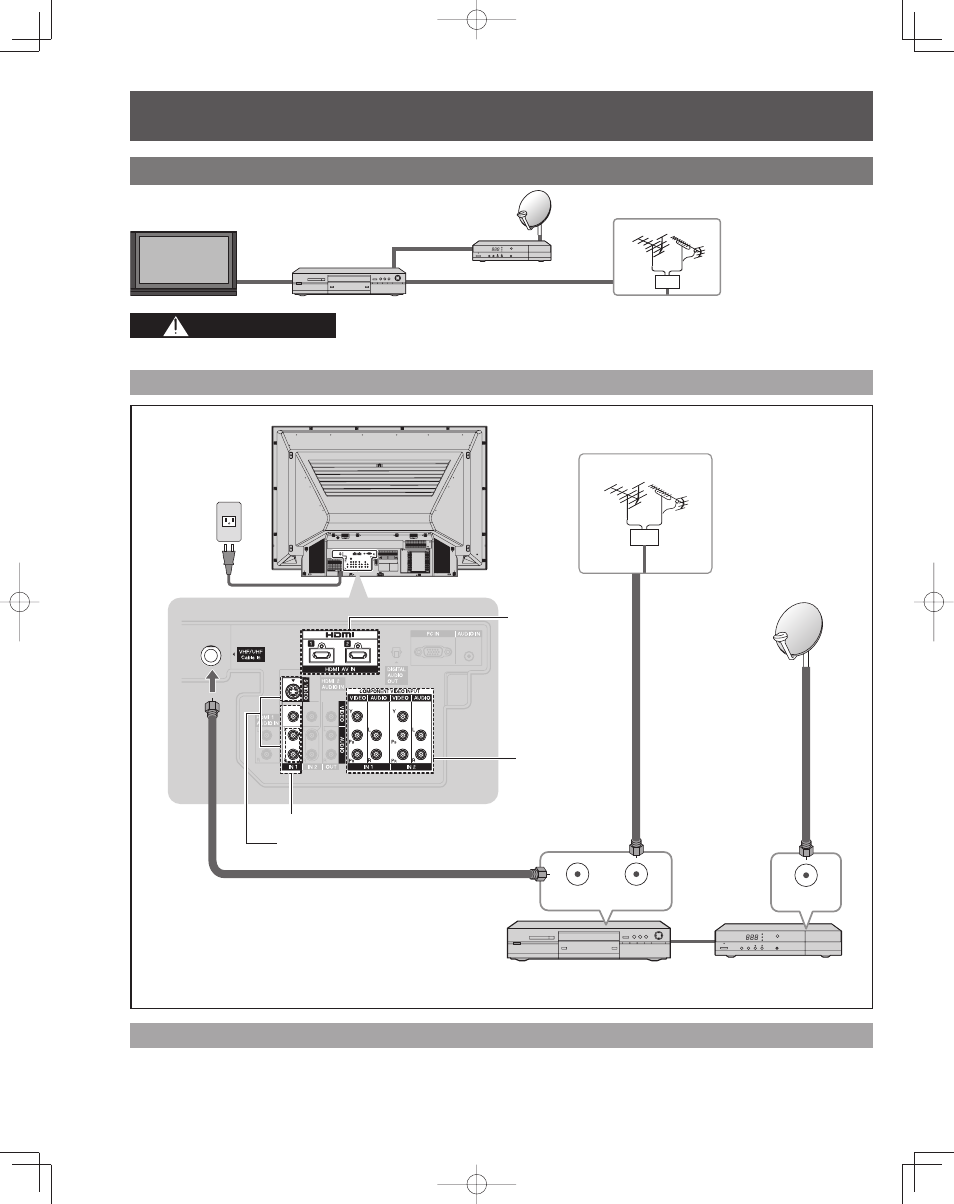

Example 3 Connecting DVD recorder (VCR) and satellite receiver
DVD Recorder
or
VCR
Projection Display
VHF/UHF Antenna
Satellite
Receiver
ANT OUT ANT IN
Antenna terminal
Back of the unit
VHF/UHF Antenna
Power Cord
To use HDMI
terminals
(p. 15)
To use
COMPONENT
terminals
(p. 15)
To use COMPOSITE terminals (p. 15)
To use S VIDEO terminals (p. 15)
DVD Recorder or VCR
(with TV tuner)
ANT IN
DTV Satellite Receiver
or
DTV Cable Receiver
Connecting this Projection Display and DVD recorder (VCR)
Connect in the same way as on page 15.
Installation (continued)
To connect antenna terminals
When using “Nut type” RF coaxial cable, tighten with fingers only. Overtightening may damage terminal.
CAUTION
AC 120 V
60 Hz
