8
S VIDEO
TV/AV STR F
Sub. Main
VIDEO L/MONO
AUDIO
R
AV3
IN
S VIDEO
VIDEO
MONO MONO
R
L
AUDIO
VIDEO
MONO
R
L
AUDIO
P B
P R
Y
DVD
[Y-P B- P R ]
P B
P R
Y
DVD
[Y-P B- P R ]
AV1
IN
AV2
IN
AV4
IN
MONITOR
OUT

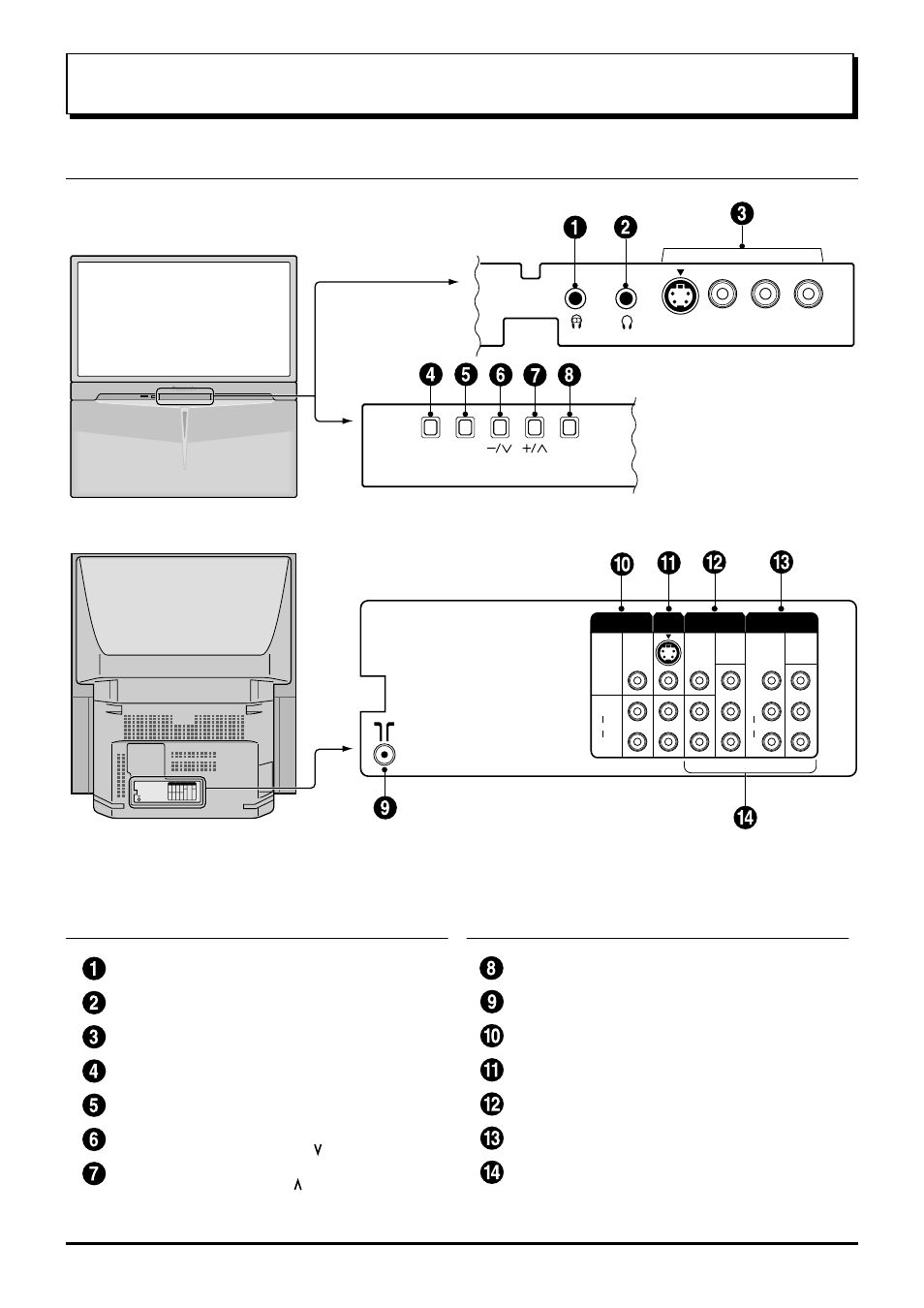

Location of Controls
Controls and Terminals on the TV
Item
No.
Function Refer to
Page
Item
No.
Function Refer to
Page
Main Headphones Jack 9
Sub Headphones Jack 9
AV3 Input Terminals 10
STR 12
Function 12
Volume Down (
−
) /
12
Volume Up (+) /
12
TV/AV Selection 12
Aerial Terminal (RF In Terminal) 9
Monitor Output Terminals 11
AV1 Input Terminals 10
AV2 Input Terminals 10
AV4 Input Terminals 10
DVD ( Y. P
B
. P
R
) Input 11
Programme Number Down ( )
Programme Number Up ( )
