14 EN

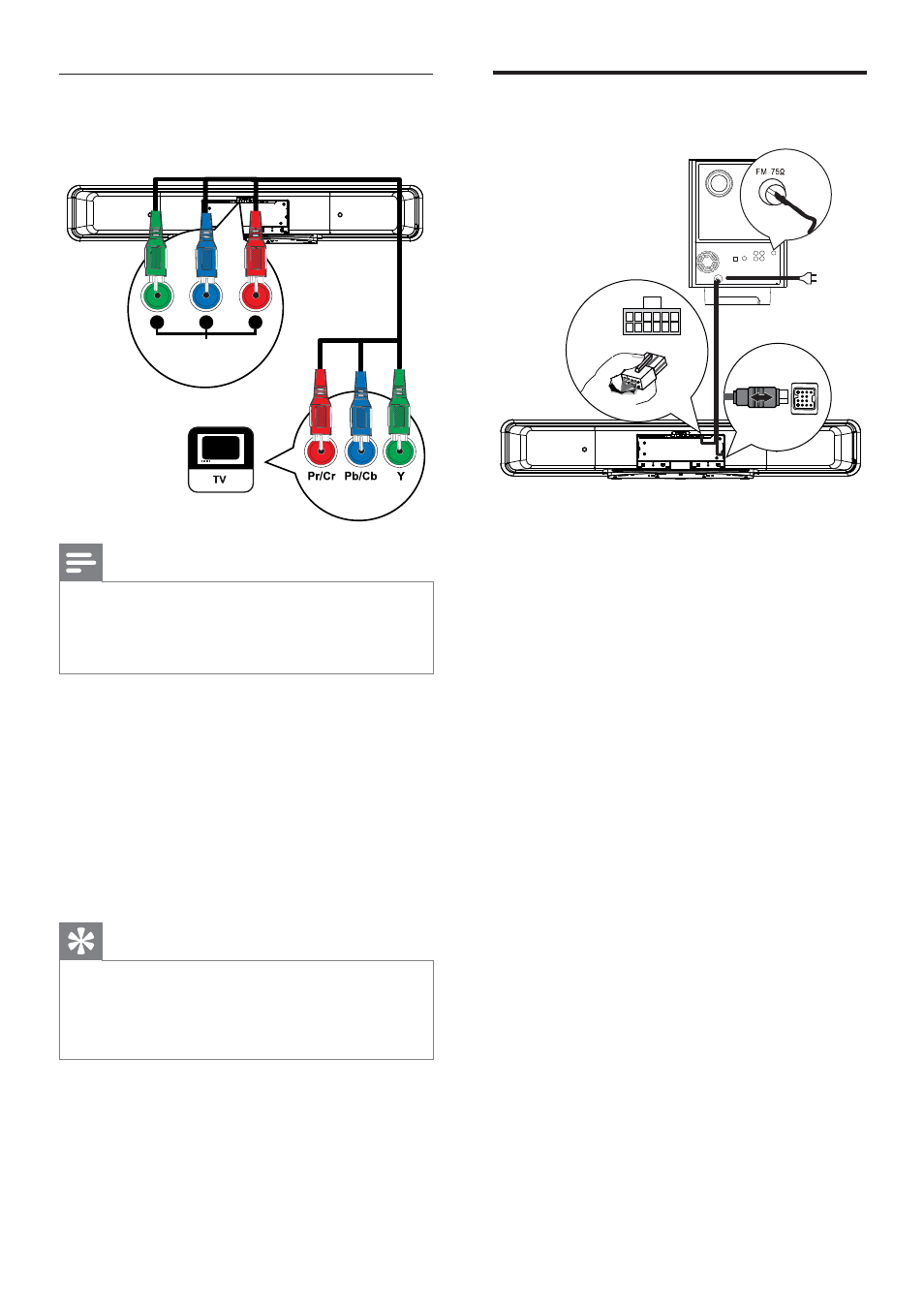

Option 3: Connect to component
video socket
COMPONENT
VIDEO OUT
Pr Pb Y
Note
Scart connection is required for À rst time setting in •
order to change the video output setting for this unit
from RGB to YUV. See chapter ‘Adjust settings’ -
[ Video Setup ] > [ Component Video ] for details.
1
Connect the component video cables (not
supplied) from the Y P
B
P
R
sockets on this
unit to the component video input sockets
on your TV.
If a progressive scan TV is used, you •
may turn on the progressive scan mode
(see chapter ‘Turn on Progressive Scan’
for details).
Tips
The component video input socket on your TV may •
be labelled as Y Pb/Cb Pr/Cr or YUV.
This type of connections provide good picture •
quality.
Connect subwoofer
LOUDSPEAKERS
TO SUBWOOFER
1
3
4
2
5
1
Unwind the subwoofer’s interconnect
cable at TO MAIN UNIT.
2
Connect the white end of the interconnect
cable to the LOUDSPEAKERS socket on
this unit.
3
Connect the grey end of the interconnect
cable to the TO SUBWOOFER socket on
this unit.
4
Connect the FM antenna (supplied) to the
FM75Ÿ socket on the subwoofer (for
some models, this cable has been
connected). Extend the FM antenna and
À x its ends to the wall.
5
Connect the power cord when all the
required connections are complete and
you are ready to enjoy this DVD Home
Theatre unit.
