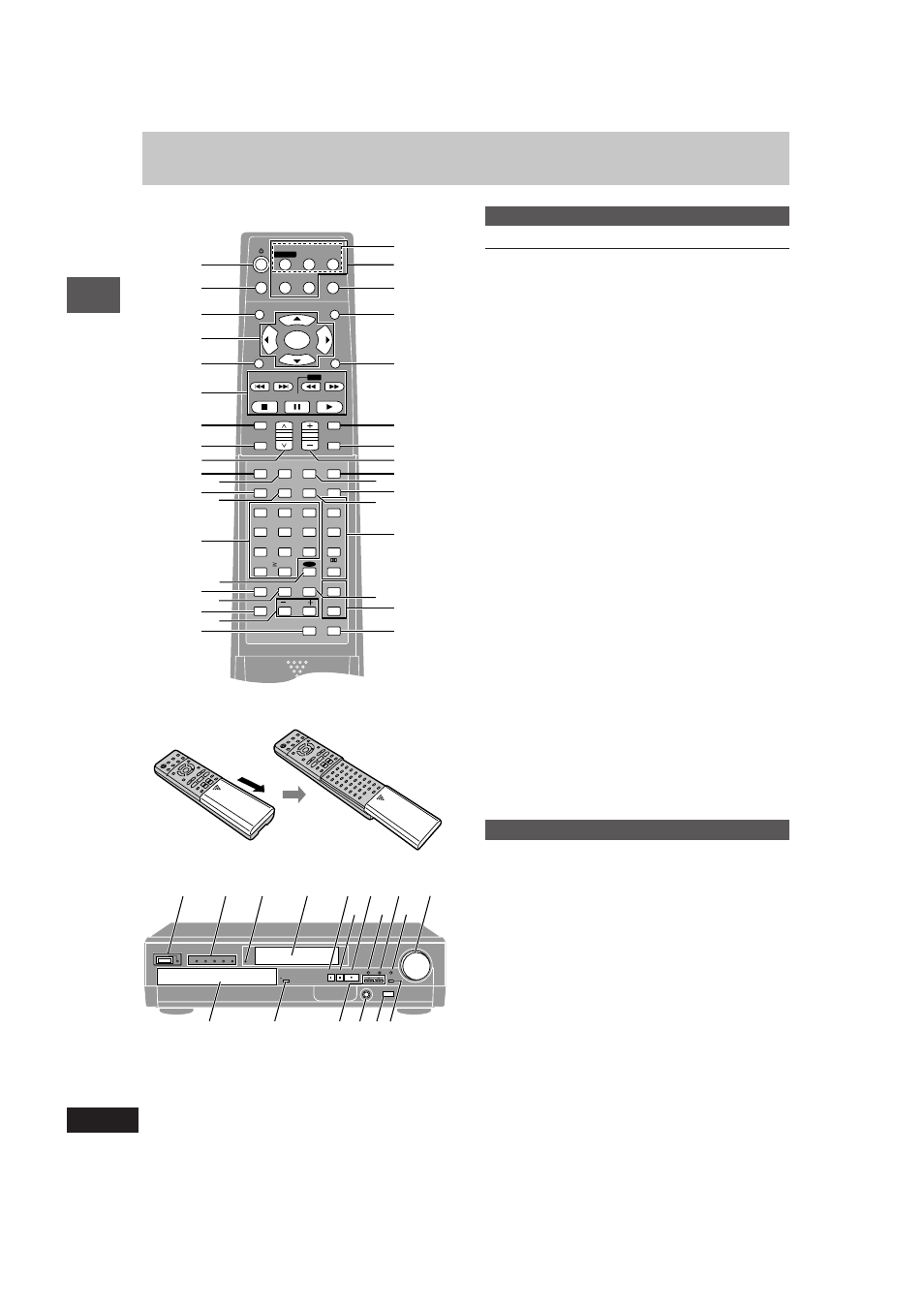

Control reference guide
Remote control
Page
1 Power button [Í] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 FL display button [FL DISPLAY] . . . . . . . . . . . . . . . . . . . . 23
3 Top menu button [TOP MENU] . . . . . . . . . . . . . . . . . . . 11, 12
4 Cursor buttons [3, 4, 2, 1]/Enter button [ENTER] . . . . . 9
5 Display button [DISPLAY] . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Basic operation buttons
7 Disc skip button [DISC SKIP] . . . . . . . . . . . . . . . . . . . . . . . 11
8 Sound field control button [SFC] . . . . . . . . . . . . . . . . . . . . 21
9 Channel select buttons [
W
W
W
W
W
,
X
X
X
X
X
, CHANNEL] . . . . . . . . . 19, 26
: Initial settings button [SETUP] . . . . . . . . . . . . . . . . . . . . 9, 25
; Subtitle button [SUB TITLE] . . . . . . . . . . . . . . . . . . . . . . . . 14
< Speaker channel select button [CH SELECT] . . . . . . . . . . 21
= Test button [TEST] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
> Numbered buttons (1–9, 0, S10/ENTER) . . . . . . . . . . . . . . 11
? Disc button [DISC] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
@ Disc manager button [DISC MANAGER] . . . . . . . . . . . . . . 15
A Play mode button [PLAY MODE] . . . . . . . . . . . . . . . . . . . . 15
B Cinema button [CINEMA] . . . . . . . . . . . . . . . . . . . . . . . . . . 13
C TV volume buttons [s
s
s
s
s
TV VOL r
r
r
r
r
] . . . . . . . . . . . . . . . . . . . 26
D Position memory button [P.MEMORY] . . . . . . . . . . . . . . . 12
E Equipment buttons and indicators
Select the equipment you want to operate.
≥
Press [DVD/CD] to operate this unit.
≥
Press [VCR] to operate a video cassette recorder.
≥
Press [TV] to operate a television.
These buttons light for a few seconds to indicate the remote
control mode.
F Input select buttons
[DVD/CD, MAIN UNIT, VCR, TV, TUNER/BAND, AUX]
Pressing [DVD/CD] or [TUNER/BAND] also turns the unit on.
[TUNER/BAND] also switches radio bands.
G TV/Video button [TV/VIDEO] . . . . . . . . . . . . . . . . . . . . . . . . . 26
H Menu button [MENU] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 12
I Return button [RETURN] . . . . . . . . . . . . . . . . . . . . . . . . 9, 25
J Muting button [MUTING] . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
K Subwoofer level button [SUBWOOFER LEVEL] . . . . . . . . 22
L Volume buttons [r
r
r
r
r
, s
s
s
s
s
, VOLUME] . . . . . . . . . . . . . . . . . 11, 18
M Angle button [ANGLE] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
N Audio button [AUDIO] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
O Marker button [MARKER] . . . . . . . . . . . . . . . . . . . . . . . . . . 13
P Mix 2ch button [MIX 2ch] . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Q Sound field and effect buttons . . . . . . . . . . . . . . . . . . . 21, 22
R Cancel button [CANCEL] . . . . . . . . . . . . . . . . . . . . . . . . . . 13
S Repeat buttons [REPEAT, A-B REPEAT] . . . . . . . . . . . . . 14
T Timer button [TIMER] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Main unit
U Standby/on switch [POWER] . . . . . . . . . . . . . . . . . . . . . . . 11
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
Standby/on indicator [Í/I]
When the unit is connected to the AC mains supply, this indicator
lights red in standby mode and lights green when the unit is turned on.
V Disc indicators [DISC 1–5] . . . . . . . . . . . . . . . . . . . . . . . . . 11
W Wake timer indicator [WAKE] . . . . . . . . . . . . . . . . . . . . . . . 23
X Display
Y Stop, tune mode button [∫, TUNE MODE] . . . . . . . . . 11, 18
Z Pause, FM mode button [;, FM MODE] . . . . . . . . . . . 11, 18
[ Play, memory button [1, MEMORY] . . . . . . . . . . . . . . 11, 19
\ Volume control [VOLUME, DOWN, UP] . . . . . . . . . . . . 11, 18
] Disc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
^ Open/close button [< OPEN/CLOSE] . . . . . . . . . . . . . . . . 11
_ Skip/search, tuning buttons
[:/6, 5/9,
X
X
X
X
X
TUNING
W
W
W
W
W
] . . . . . . . . . . . . . . . 13, 18
` Headphone jack [PHONES] . . . . . . . . . . . . . . . . . . . . . . . . 23
a Remote control signal sensor
b Input select button [SELECTOR] . . . . . . . . . . . . . . . . . . . . 11
ENTER
VCR
TV
TUNER/BAND
AUX
TV/VIDEO
FL DISPLAY
TOP MENU
MENU
SKIP
PLAY
PAUSE
DISC SKIP CHANNEL
VOLUME
SFC
MUTING
SUBWOOFER
LEVEL
STOP
RETURN
DISPLAY
SLOW
/SEARCH
DVD/CD
MAIN UNIT
DISC
MANAGER
ANGLE
AUDIO
SUB TITLE
SETUP
TV VOL
1
2
3
4
5
6
7
8
9
0
PLAY MODE
CH SELECT
TEST
MIX 2ch
DISC1
DISC2
DISC4
DISC5
DISC3
CANCEL
CINEMA
P.MEMORY
TIMER
DISC
1
2
F
3
H
G
4
5
6
<
7
:
9
@
B
D
A
?
;
=
I
J
8
K
>
L
C
E
A-B
REPEAT
SUPER
SURROUND
MARKER
REPEAT
SEAT
POSITION
CENTER
FOCUS
PRO LOGIC
M
O
N
Q
R
T
S
P
10/ENTER
Buttons 7, 8, and K function the same as the controls on the re-
mote control.
How to open the remote control
