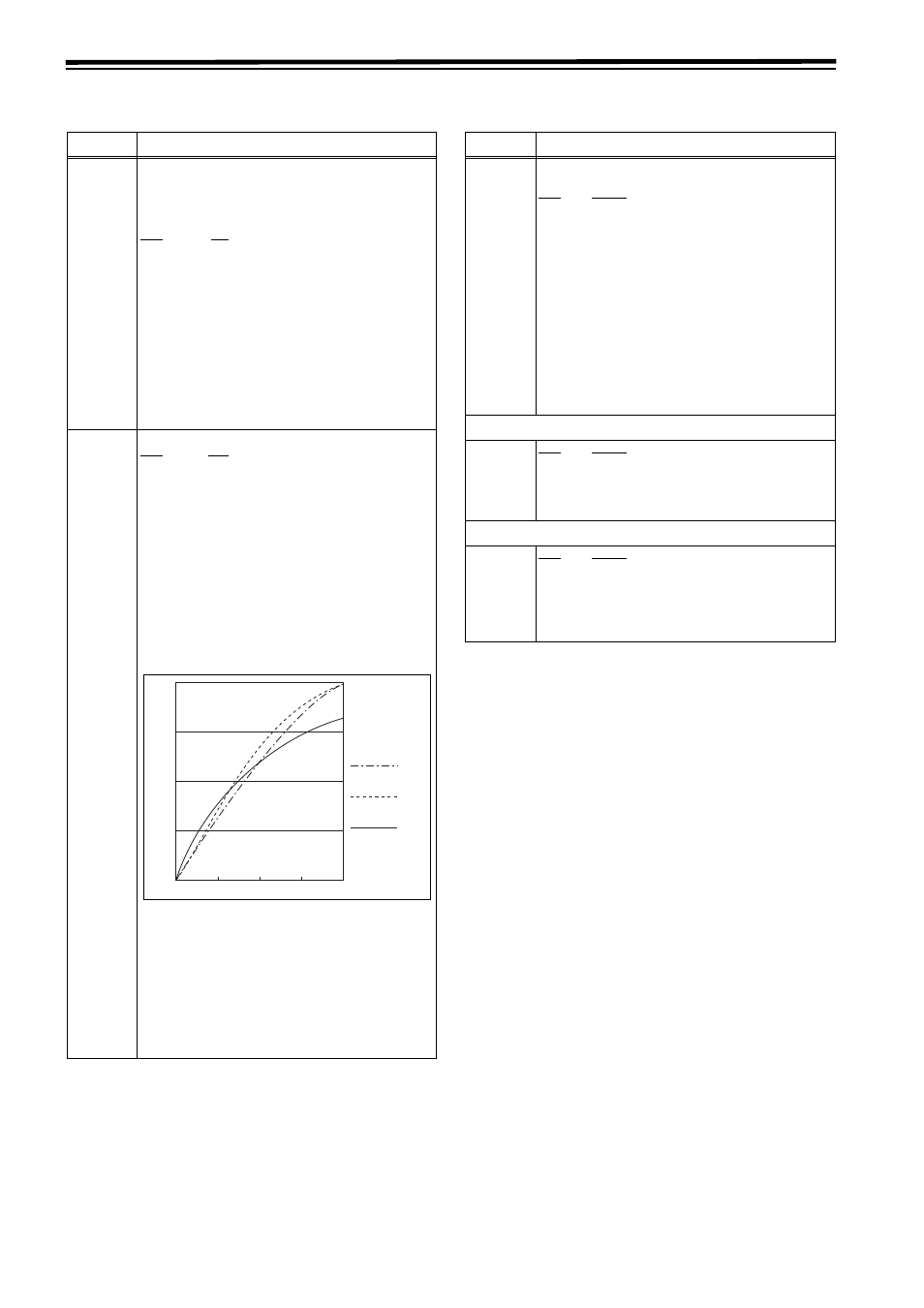

50
Setup menus
(continued)
VIDEO (continued)
*1 Displayed menus may vary depending on the settings in
menu No. 25 SYSTEM FREQ. For details, refer to
“Menus which are displayed” (page 32).
*DW: With SD output (SD tape playback or down-converted
output)
“_____” indicates the factory setting.
No./Item Description of setting
692* 1
UMID POS
This sets the line on which the UMID information is to
be superimposed.
0000
BLANK
0001 12L
: :
0006
17L
: :
0008
19L
z The line selected for the menu item No. 501 VITC
POS-1 and No. 502 VITC POS-2 settings cannot
be selected for this item.
z The default settings are not restored even if the
RESET button is pressed while holding down the
SEARCH button.
z Metadata recorded on the tape will be output giving
UMID information first priority. When metadata is
output, set to a line other than the original
multiplexed line or select “BLANK.”
693
GAMMA SEL This selects gamma correction.
0000
OFF :
Gamma correction is not carried out.
0001 GAMMA1 :
This corrects video images shot with the cine
gamma FilmREC mode of the Varicam to images
of film quality (equivalent to Telecine 5 of HD
Gamma Corrector in AJ-GBX27G).
0002 GAMMA2 :
This corrects video images shot with the cine
gamma FilmREC mode of the Varicam to images
of film quality (equivalent to Telecine 6 of HD
Gamma Corrector in AJ-GBX27G).
0003 GAMMA3 :
This converts video images shot with the cine
gamma FilmREC mode of the Varicam into the
Cineon curve appropriate for film recording.
z Gamma correction is effective in the following conditions.
Š When the VTR operation mode is VV (TAPE) and
720p is displayed in the system format.
However, during cross convert from 720p > 1080i,
gamma correction is not effective for SD output.
z When “ON” is selected, the GAMMA lamp on the
front panel is on at all times.
z When this unit is turned to OFF, this setting returns
to "OFF." The setting of user default returns to “OFF.”
z This item is not effective for 1394 output.
256
256
512
512
768
768 1023
1023
TELECINE5
TELECINE6
Cineon
No./Item Description of setting
695* 1
BLANK
LINE*
DW
For selecting the blanking ON/OFF for a period of
vertical blanking on video signals of the SD output.
0000
BLANK :
All the lines are forcibly blanked.
0001 THRU :
None of the lines are blanked.
0002 MANU :
Blanking ON or OFF is selected on a line-byline
basis.
z When setting “MANU,” if the STOP button is
pressed, the screen shifts to the sub screen and
the ON/OFF setting for each line can be adjusted.
Press the STOP button again to return to the main
screen.
z Lines that are selected as being blanked in this
menu item are similarly blanked before being up-
converted when replaying the SD tape.
Sub screen (59/60 Hz mode)
00
LINE 10&273
:
12
LINE 22&285 0000 BLANK :
Forced blanking
0001 THRU :
No blanking
Sub screen (50 Hz mode)
00
LINE
7&320
:
15
LINE 22&335 0000 BLANK :
Forced blanking
0001 THRU :
No blanking
