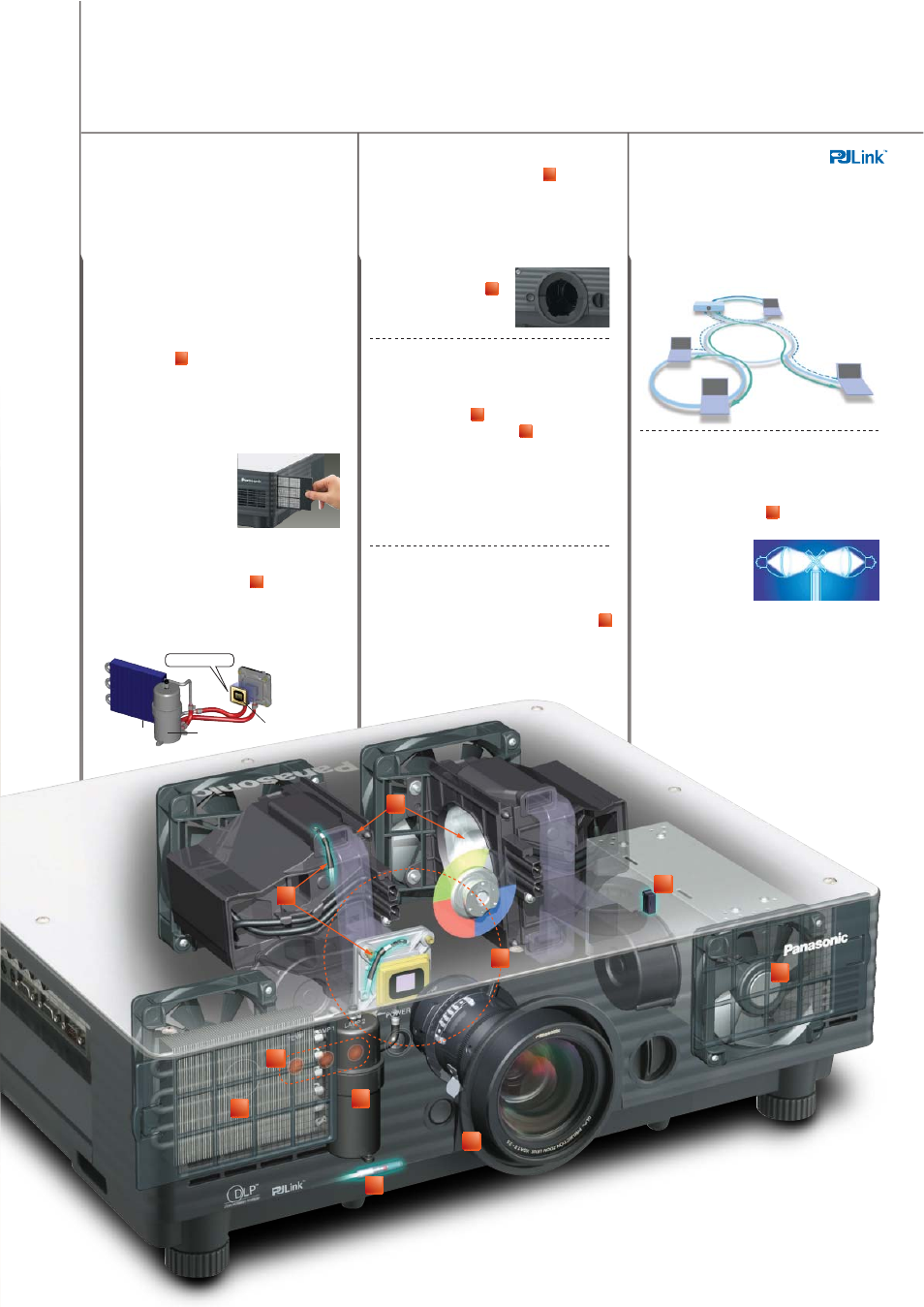

The Reliability Value Chain
Supported by Panasonic Technology
Protecting
µ
Cut Filter
(World's First in a High-Brightness Projector*)
Reporting
Lamp Lamp
ting
toring
ting
Withstands ambient temperatures up to
45˚C, and protects against dust problems.
The user is alerted instantly if an
operating problem should occur.
A new filter in the air intake section traps dust
particles that are 10 microns*
1 or larger. By
capturing approximately 7 times* 2 as much
dust as our previous filters, it guards against
optical blocks and
reduces the penetration
of dust into to the interior
to provide stable operation
by, for example, preventing
drops in brightness.
*1 10-micron dust = lint, pollen, etc.
*2 According to Panasonic in-house data
Airflow Sensor
Temperature Sensors
An airflow sensor has been added to the air
intake section to quickly detect reductions in
the intake airflow due to a clogged filter or
other reasons. Also, a temperature sensor has
been mounted to the exhaust section in
addition to the existing ones at the air intake
section and DLP™ chip.
Warning LED and On-Screen Display
The projector body is equipped with a
temperature alarm LED and a burnt lamp (for
lamp 1/lamp 2) alarm LED. Information on the
location of the error is also given in the on-
screen display.
Dual Lamp System
Optional Long-Life Lamp
A long-life lamp that stretches lamp life to 4 000
hours is available as an option. In single lamp
operation mode, the lamp relay function allows
non-stop operation 24 hours a day for up to 47
weeks without replacing the lamps. The use of
UHM™ lamps dramatically cuts operating costs.
*The brightness of the long-life lamp is half that of the
normal lamp.
Liquid-cooling System
Panasonic’s original liquid-cooling system
directly cools the DLP™ chip, which extends
the PT-D5600E/D5600EL’s performances and
attains a high level of reliability.
Dust-Tight Cover
The lens unit opening is
fitted with rubber sealing.
New Cooling Structure
In order to further enhance the cooling
efficiency, we completely revised the
placement of various internal components and
combined this with our popular cooling system
to enable use in temperatures up to 45˚C.
This allows use in a wider variety of
environments, and keeps the operation
more stable even in harsh conditions.
Dustproof Design
with Sealed Optical Block
The effect of dust has been minimised by
completely sealing the optical block.The dust-
free design helps ensure that this DLP™
projector will continue to deliver crisp, sharp,
high-resolution images over an extended
service life.
µ Cut Filter
The use of two lamp systems increases brightness
and eliminates the
need to interrupt a
presentation if a lamp
burns out (in dual
lamp operation mode).
Monitoring
A more powerful sensing performance
predicts problems with high accuracy.
Web Browser Control/
Monitoring and E-mail Message Alert
Anybody can operate the PT-D5600E/D5600EL
by remote control or monitor its status over a
LAN network, because it is all done using the
computer’s familiar Web browser. Furthermore,
the PT-D5600E/D5600EL sends an E-mail
message to notify the operator when an error
has occurred, or a lamp needs to be replaced.
Remote
control
Remote
control
Remote control
e-mail
e-mail
e-mail PC
PC
PC
PC Projector
e-mail
Internet
LAN
LAN
2
3
4
5
6
7
8
Fail-Safe Operation
Projection can still continue even when
a lamp burns out.
Radiator Reserver tank
Cooling directly
DLP™ chip
1
1
1
2
6
4
3
5
7
8
6
*As of May, 2006
