5.2 FRONT PANEL LED STATUS MONITORS
The Model 2173R features six front panel LEDs that monitor power, the
Ethernet signals, the CopperLINK connection, and the remote/local set-
ting. Figure 7 shows the front panel location of each LED. Table 2 on
page 15 describes the LED functions.

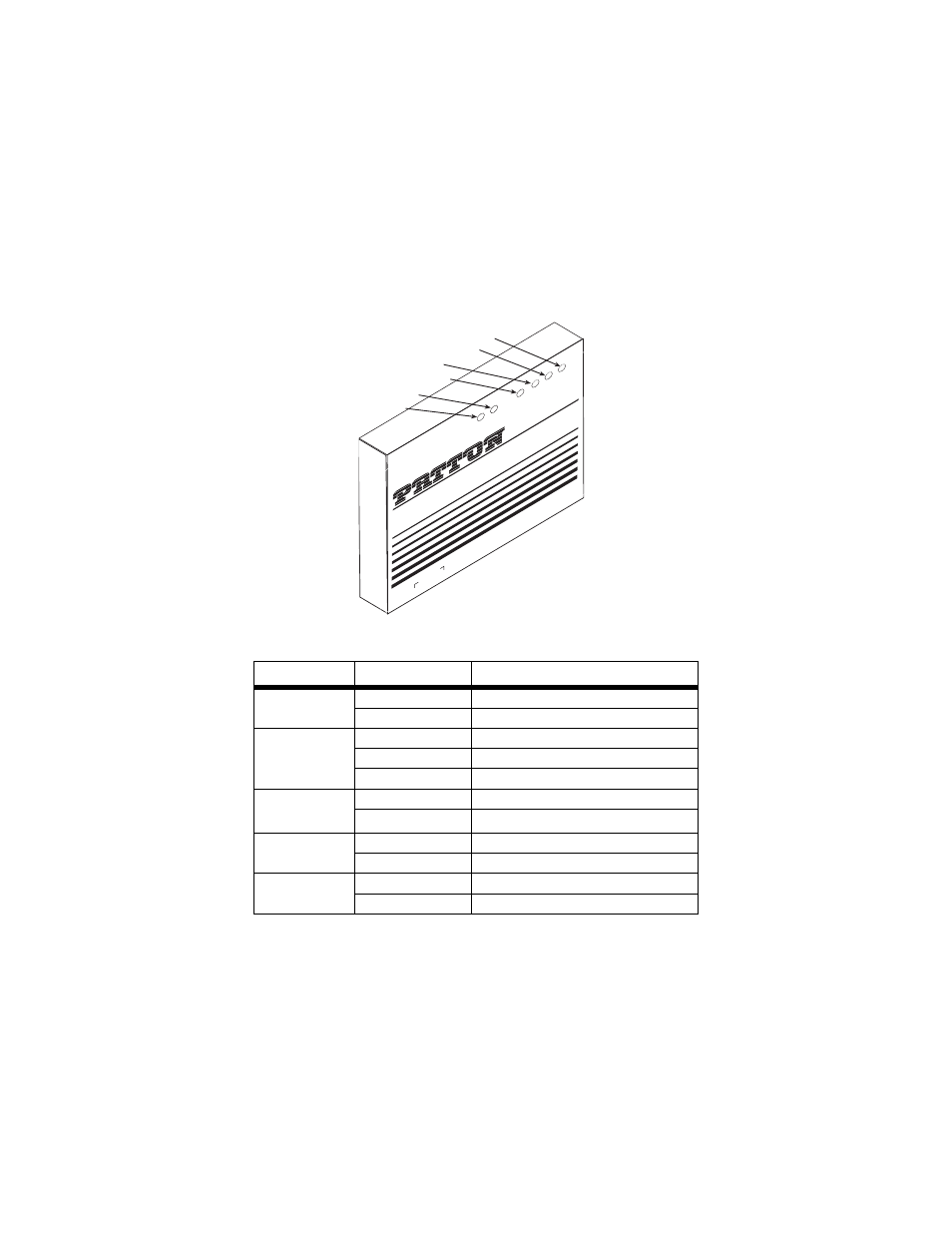

Figure 7. Model 2173R front panel
Table 2: Front panel LED description
LED Status Description
Power Green The device is powered on.
Off The device is powered off.
CopperLink Green The port is connected.
Blinking Green Data transceiving.
Off No valid link on this port.
Ethernet Green The port is connected.
*
Blinking Green
*. Once the unit connects to a power source, the Link LED will
blink as the 2173R automatically looks for the other unit in
the pair.
Data transceiving.
Local Green The device acts in Local mode.
Off Local mode is off.
Remote Green The device acts in Remote mode.
Off Remote mode is off.
Ethernet 1 LED
Link LED
Power LED
Ethernet 1
Link
Power
C
op
pe
rL
in
k 21
73
R
R
ug
ge
dize
d E
th
ern
et E
xte
nd
er
Ethernet
2 1
Power
5V ; 0.6A
Line
Ethernet 2
Remote Local
Ethernet 2 LED
Remote LED
Local LED
