EtherFast ® Cable/DSL Firewall Router with 4-Port Switch/VPN Endpoint
105
Instant Broadband ® Series
104
Tunnel 1: win->router

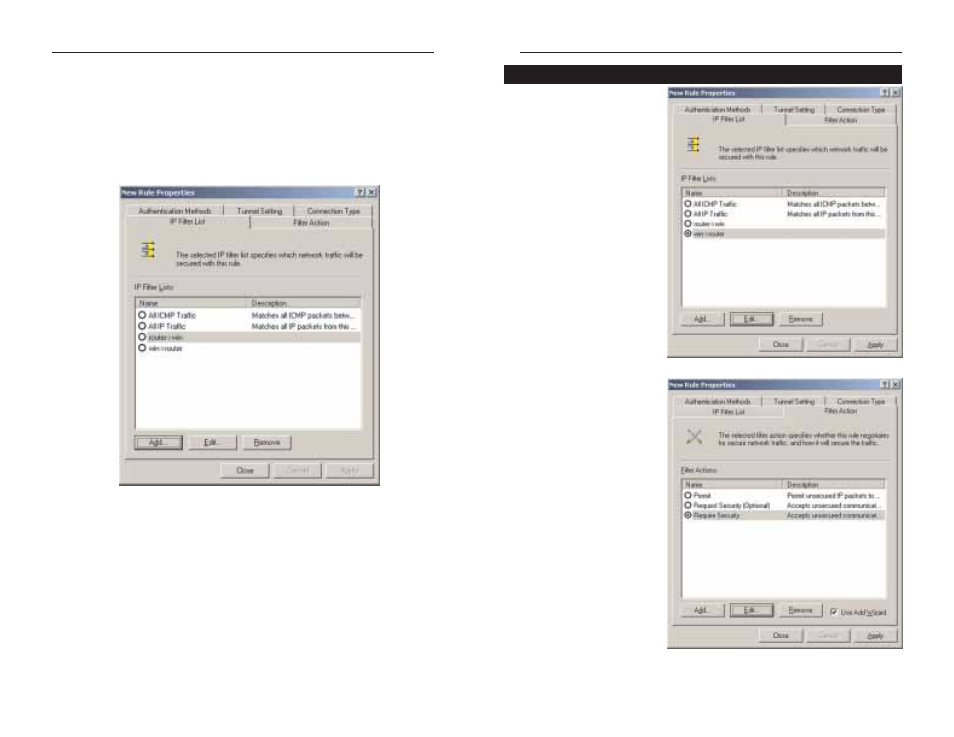

1. From the IP Filter List
tab, shown in Figure C-
10, click the filter list
win->router.
2. Click the Filter Action
tab (as in Figure C-11),
and click the filter action
Require Security radio
button. Then, click the
Edit button.
Figure C-11
Figure C-10
Step Three: Configure Individual Tunnel Rules 10. If you want to enter a description for your filter, click the Description tab
and enter the description there.
11. Click the OK button and the New Rule Properties screen should appear
with the IP Filer List tab selected, as shown in Figure C-9. There should
now be a listing for “router -> win” and “win -> router”. Click the OK (for
WinXP) or Close (for Win2000) button on the IP Filter List window.
Figure C-9
