LG STB1000 - Manual (Page 8)

8 206-4147
COMPONENT IN
VIDEO AUDIO
R L
UPDATE RESET
AUDIO
(RGB/DVI)
P B Y P R
. . . . .
. . . . ..........
2
1(DVI)
DIGITAL VIDEO IN
OPTICAL
DIGITAL
AUDIO OUT
REMOTE
CONTROL OUT
SPEAKER
OUT
8
RJP
INTERFACE
RGB IN
VIDEO R -AUDIO- L/MONO
A
V
IN 1
RGB(PC)
. . . . .
. . . . .
. . . . .
TV-LINK
CFG
MPI/GAME
CONTROL
DISPLAY CONTROL
LAN
..........
COMPONENT IN VIDEO
AUDIO R L UPD ATE
RESE T AUDIO (RGB/DVI)
P B
Y
P R
.........
.......... 2 1(DVI) DIGIT AL VIDEO IN
OPTICAL DIGIT AL AUDIO OUT REMO TE CONTROL OUT SPEAKER OUT 8
RJP INTERF ACE
RGB IN
VIDEO
R -AUDI O- L/MONO AV IN 1
RGB(PC )
.......... .....
TV-LIN K CFG
MPI/GA ME CONTR OL DISPLA Y CONTROL
LAN
..........
DIGITAL
VIDEO OUT
AC IN AC OUT
MAX 8A 960W
USB SERVICE ONLY
AV
IN 2
VIDEO L/MONO -AUDIO- R
AUDIO OUT INT PILLOW
PILLOW SPEAKER ANT
DISPLAY
IR IN
IR RECEIVER
IN
AC 120V~ 60Hz
AUDIO IN (RGB/DVI)
Audio connection for
RGB or DVI device. COMPONENT IN
Connection for component
output from external device.
LAN
For future application.
AUDIO/VIDEO IN 1
Connection for composite
audio/video output from
external device.
SPEAKER OUT (8Ω) *
Connect to 8 ohm self-powered speaker
input. Intended for special applications,
such as a powered bathroom speaker
with volume control.
REMOTE CONTROL
OUT
IR output for controlling
an auxiliary device.
RGB IN (PC)
Connection for RGB
output from PC.
TV-LINK CFG
Use for local FTG configuration.
DISPLAY CONTROL
Connect to display
panel RS-232 input.
UPDATE
Restricted to software updates.
RESET
Press to re-initialize
the STB1000.
MPI/GAME CONTROL
When the EBL is in Pass-through Mode, the
MPI function enables an external MPI control
device (i.e., clone programmer, VOD/PPV
STB, etc.) to control the STB. Game
Control—EBL in LodgeNet PPV mode only.
OPTICAL DIGITAL AUDIO OUT
Use for amps and home theater
systems. Note: In standby mode,
this port is not enabled.
RJP INTERFACE
Connection for Remote Jack
Pack (RJP) control cable.
DIGITAL VIDEO IN
Connection for HDMI/DVI
output from external device.

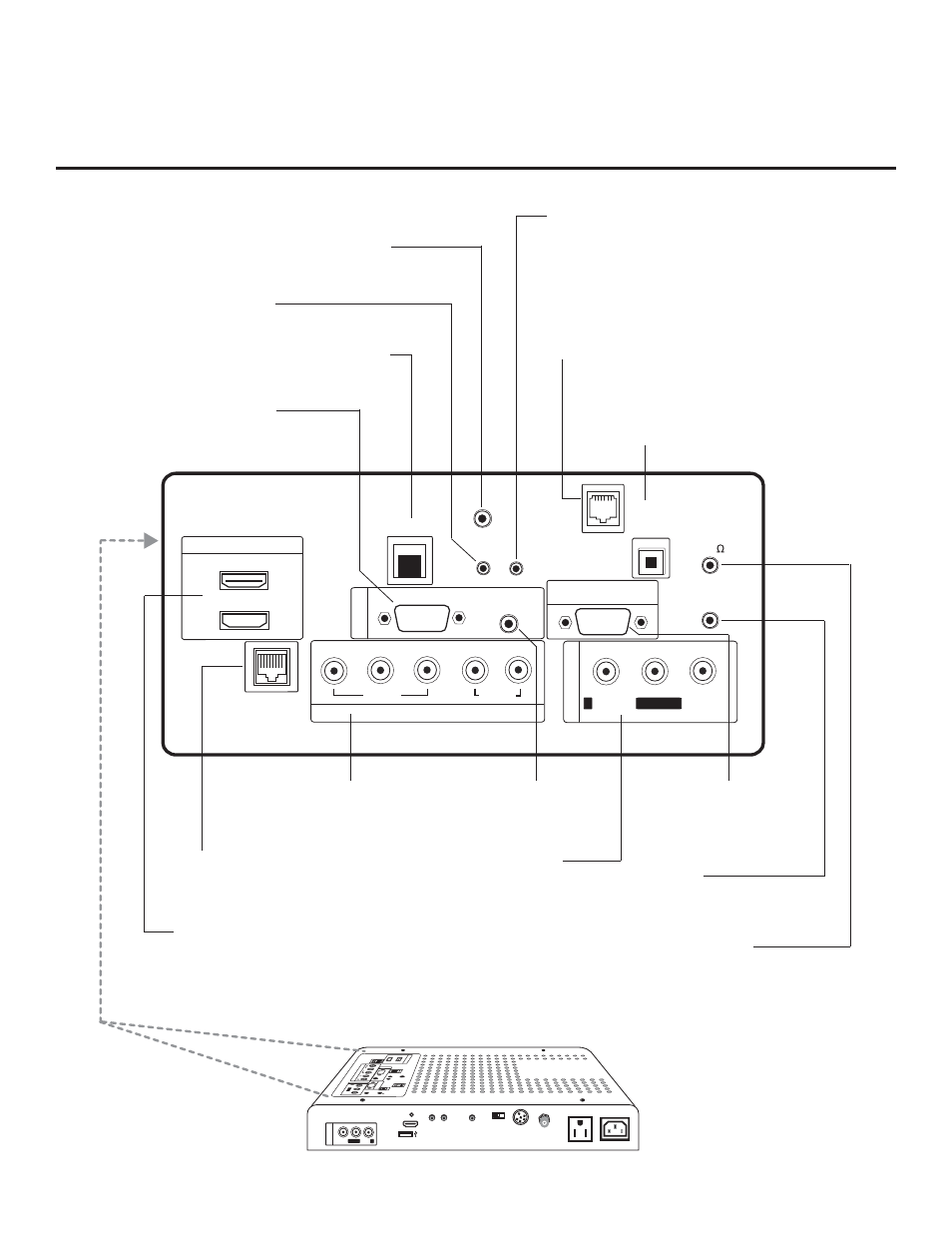

STB1000 Jack Panel Overview
* This stereo jack provides a mono speaker
fi xed-level, 1 watt output (audio +, audio -,
w/ground shield). Do NOT plug in a mono
connector, as it may damage the STB.
