7 206-4147
DIGITAL
VIDEO OUT
AC IN AC OUT
MAX 8A 960W
USB
SERVICE ONLY
AV
IN 2
VIDEO L/MONO -AUDIO- R
AUDIO OUT
INT PILLOW
PILLOW SPEAKER ANT
DISPLAY
IR IN
IR RECEIVER
IN
AC 120V~ 60Hz
COMPONENT IN VIDEO
AUDIO R L UPD ATE
RESE T AUDIO (RGB/DVI)
P B
Y
P R
.........
.......... 2 1(DVI) DIGIT AL VIDEO IN
OPTICAL DIGIT AL AUDIO OUT
REMO TE CONTROL OUT SPEAKER OUT 8
RJP INTERF ACE
RGB IN
VIDEO
R -AUD IO- L/MONO AV IN 1
RGB(PC )
.......... .....
TV-LINK CFG
MPI/GAMECONTR OL DISPLA Y CONTROL
LAN
..........
DIGITAL VIDEO OUT
AC IN AC OUT
MAX 8A 960W
USB SERVICE ONLY
AV
IN 2
VIDEO L/MONO -AUDIO- R
AUDIO OUT INT PILLOW
PILLOW SPEAKER ANT
DISPLAY
IR IN
IR RECEIVER IN
AC 120V~ 60Hz
AC OUT
Connect AC power cord
from LG display panel.
AC IN
Connect to standard 120V
60 Hz power source. AUDIO OUT
Connect to LG display panel
RGB/DVI AUDIO input.

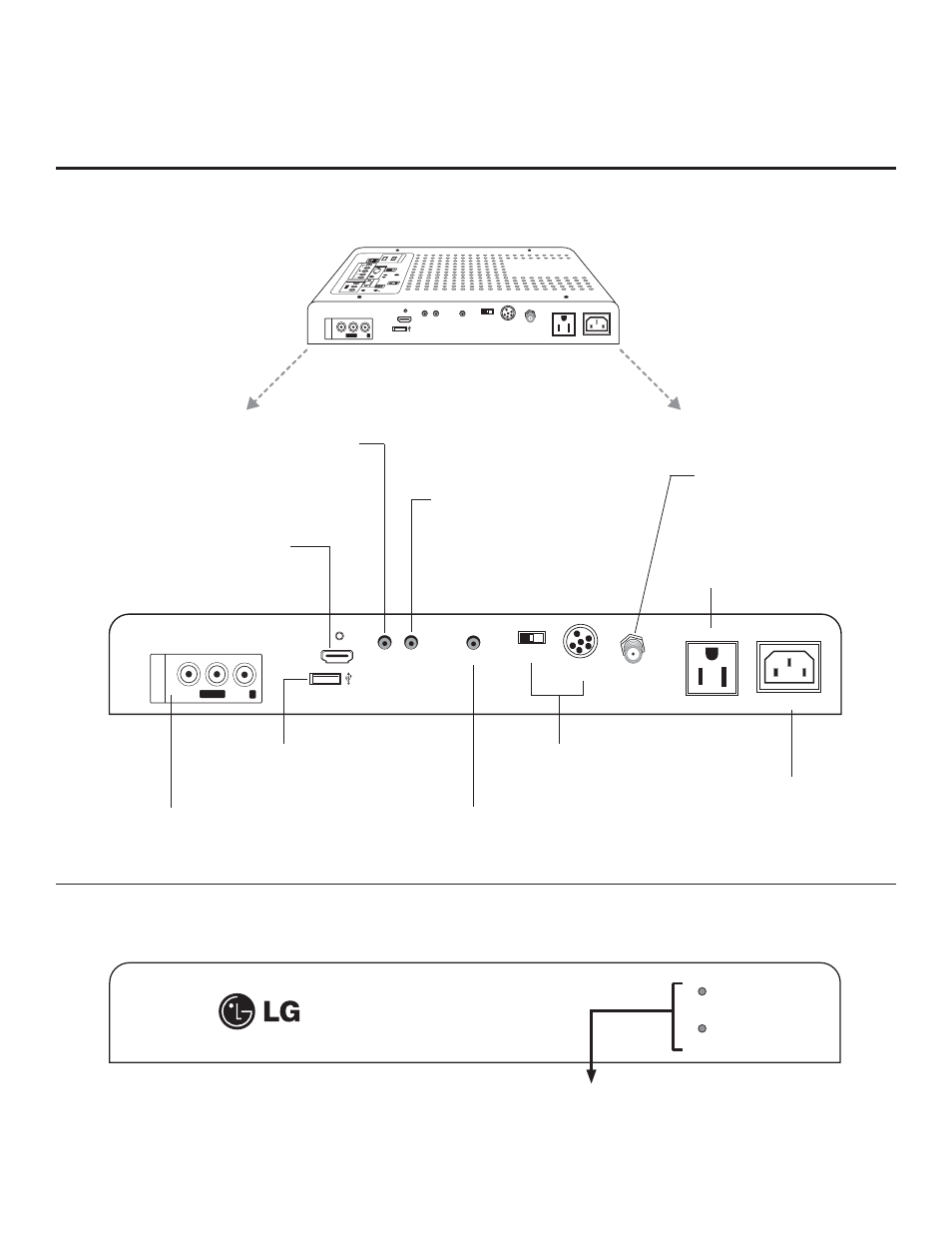

STB1000 Rear and Front Panel Overview
AUDIO/VIDEO IN 2
Connection for composite audio/
video output from external device.
ANTENNA IN
Connection for Antenna/
CATV.
USB IN
Restricted to
service use only.
IR RECEIVER IN
(Optional) 3.5 mm connection
for IR receiver. Use when IR
pass-through via RS-232 port
is not supported by LG display
panel.
DIGITAL VIDEO OUT
Connect to LG display
panel HDMI1/DVI input.
STB1000 Rear Panel
STB1000 Front Panel
POWER
STATUS
STB1000
POWER LED: Lit while the STB1000 and display panel are turned ON.
STATUS LED: Blinks rapidly if there is no Channel Map defi ned; blinks
slowly if a Channel Map is defi ned.
DISPLAY IR IN
3.5 mm connection for IR pass-through
via RS-232 port from LG display panel.
Use supplied null-modem RS-232 cable
with 3.5 mm stereo plug.
PILLOW SPEAKER
SWITCH/INPUT
Not used.
