Composite (RCA) Connection
G
If you have a mono VCR, connect the audio cable from
the VCR to the AUDIO L/MONO jack of the TV.
NOTE
!
VIDEO
AUDIO
L
R
COMPONENT IN
2
3
1
2
1
/DVI
AV IN 1
MONO
( )
AUDIO
VIDEO
L
R
L
R
S-VIDEO
VIDEO
AUDIO
OUTPUT
SWITCH
ANT IN
ANT OUT
1

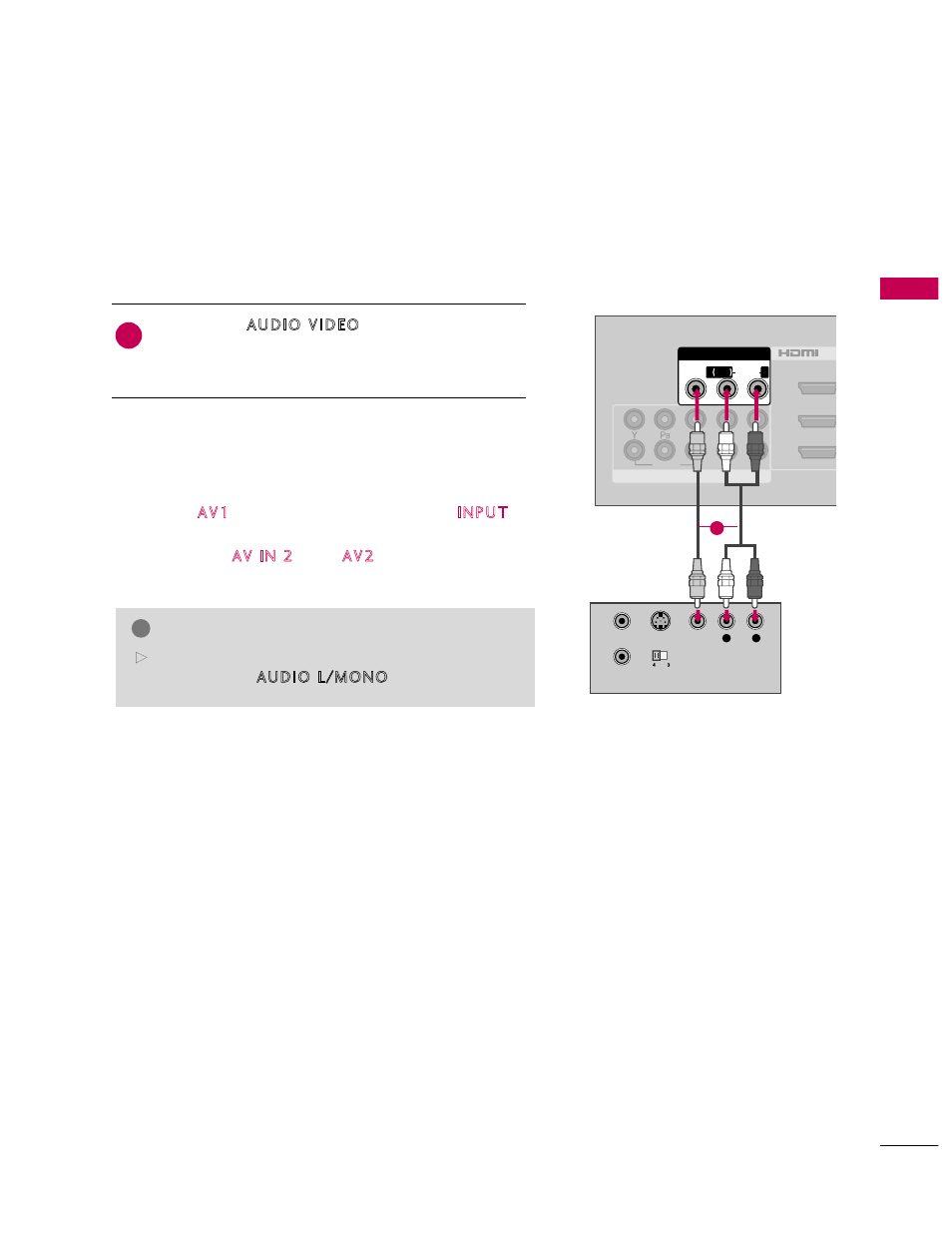

Connect the AUDIO/VIDEO jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)
■
Select the
A V 1
input source on the TV using the
INPUT
button on the remote control.
■
If connected to
AV IN 2
, select
AV2
input source on the TV.
