DVI to HDMI Connection
AUDIO
L
R
OPTICAL DIG
AUDIO OU
ANTENNA
CABLE IN
RGB IN (PC)
AV IN 1
ENT IN
1
MONO
( )
AUDIO
L
R
2
3
1
/DVI IN
AUDIO IN
(RGB/DVI)
L
R
DVI OUTPUT
AUDIO
RS-232C IN
(CONTROL&SERVICE)
1
2
G
A DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
NOTE
!

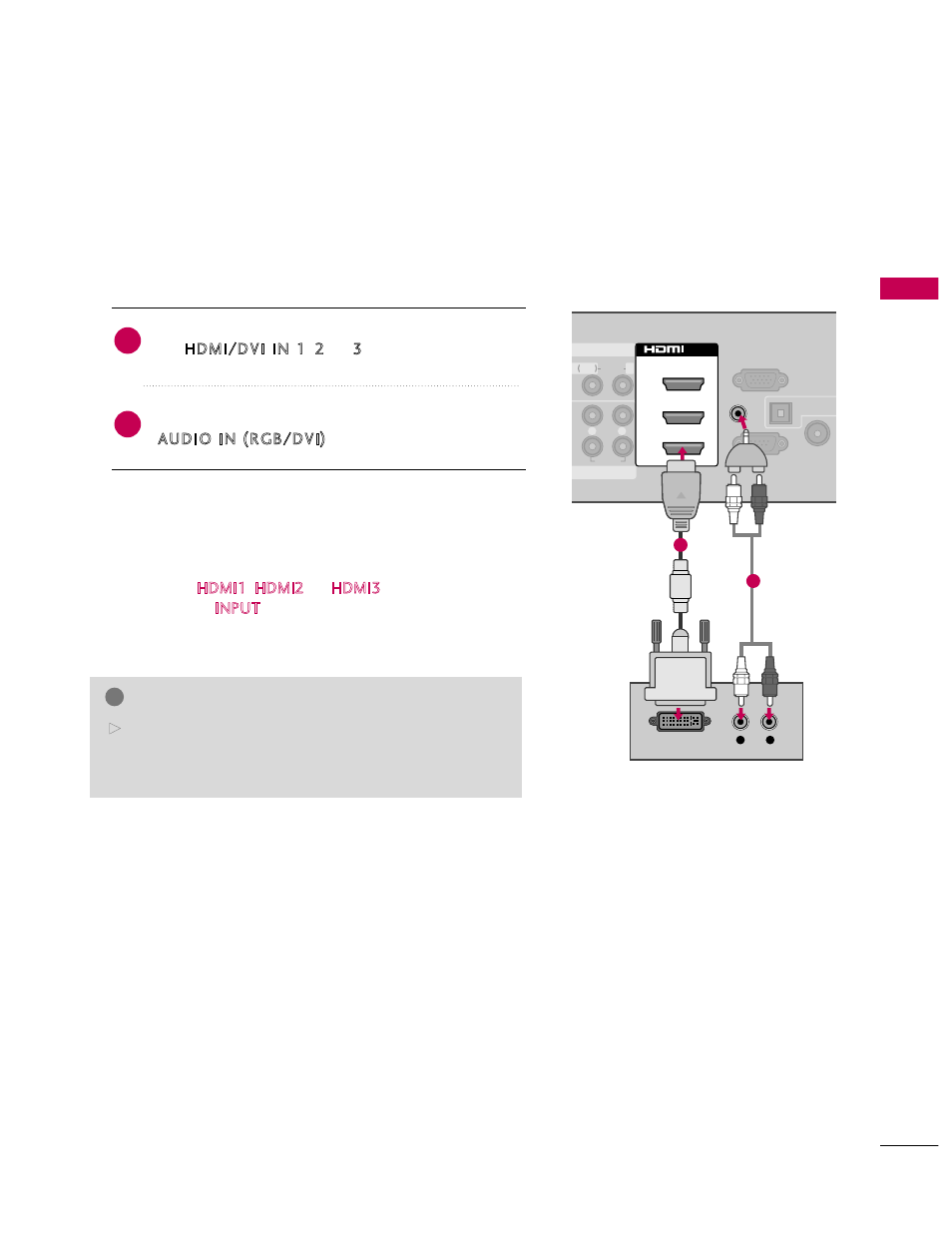

Connect the DVI output of the digital set-top box to
the HDMI/DVI IN 1, 2, or 3 jack on the TV.
Connect the digital set-top box audio output to the
AUDIO IN (RGB/DVI) jack on the TV.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■
Select the
HDMI1
,
HDMI2
, or
HDMI3
input source on the
TV using the
INPUT
button on the remote control.
2
1
