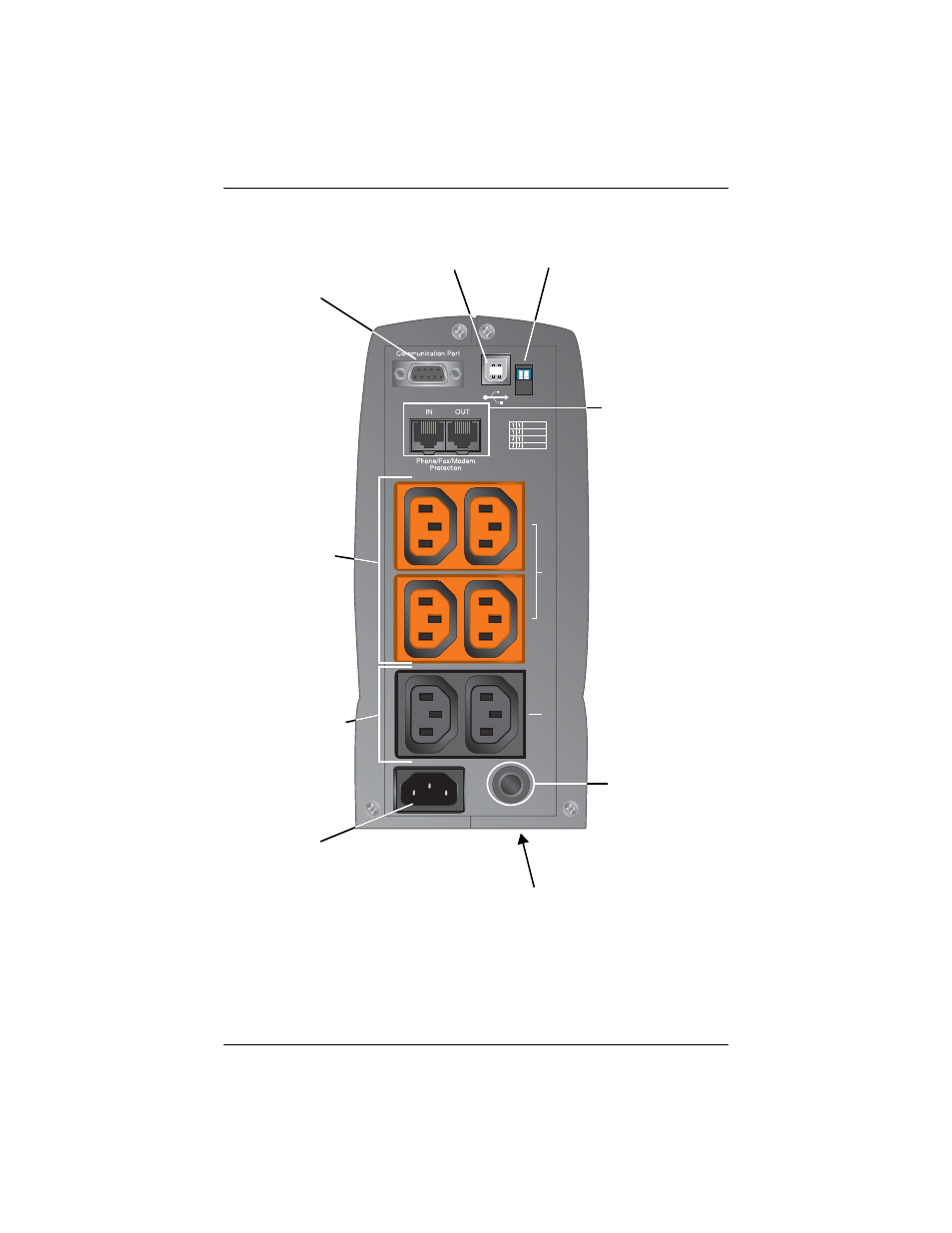

Rear View of UPS

185-270V

185-280V

175-270V

175-280V

Refer to user's manual
for voltage setting

Circuit Breaker
Push to Reset

Surge Protection Only

CAUTION: Risk of electric shock.

Refer to bottom of unit for cautionary marking.

Battery Back-up + Surge Protection

AC input

DB-9 port***

Input circuit
protector

USB port***

DIP
switches**

Orange output
receptacles (4)*

Battery backup +
surge protection

Black output
receptacles (2)*

Surge protection
only

Data Line
Protection
Connectors (2)***

Phone/Fax/DSL/
Internet/Modem
devices

Battery cover plate
(on bottom of UPS)

For details, see:
*

Installation section

** Controls and Indicators section
*** Communications section
