STEP 3:

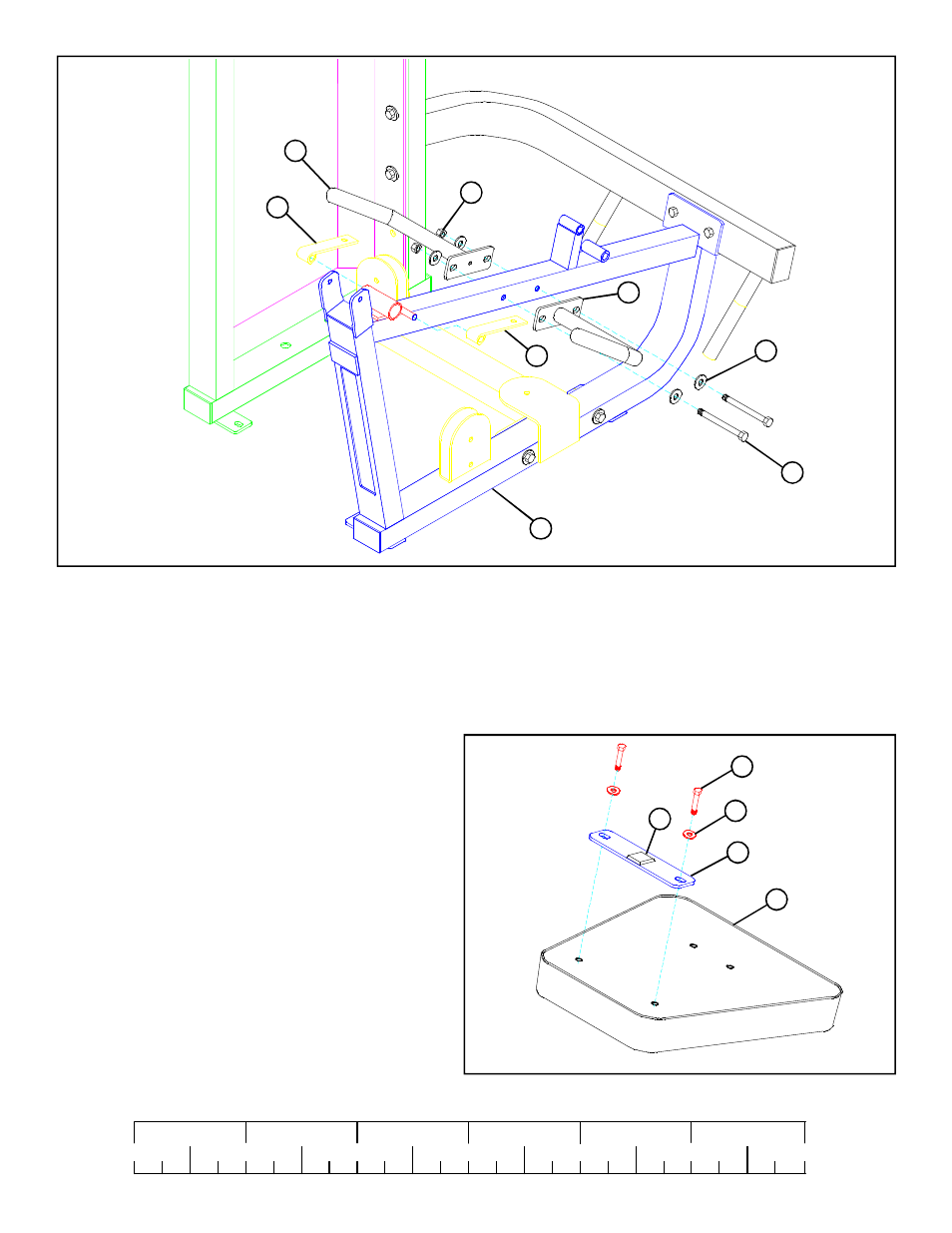

FIGURE 3
6
STEP 4:
• SECURELY assemble the LEFT (2) and RIGHT (3) LEG EXT. HANDLES to the BENCH FRAME (7) using two 3/8 X 3-1/4”
BOLTS (35), four 3/8” WASHERS (41), and two 3/8” LOCK NUTS (44). See FIGURE 3.
• Slide two HINGE TABS (45) onto the BENCH FRAME (7) as shown in FIGURE 3.
3
• SECURELY assemble one 2 X 8” PLATE (31) to the SEAT
PAD (15) using two 3/8 X 1-1/4” BOLTS (38) and two 3/8”
WASHERS (41). See FIGURE 4.
41
35 3/8 X 3-1/4”
7
44
2
45
45
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 4
41
31
15
38 3/8 X 1-1/4”
28
• Apply one 1-1/4” RUBBER BUMPER (28) to the 2 X 8”
PLATE (31) as shown in FIGURE 4.
