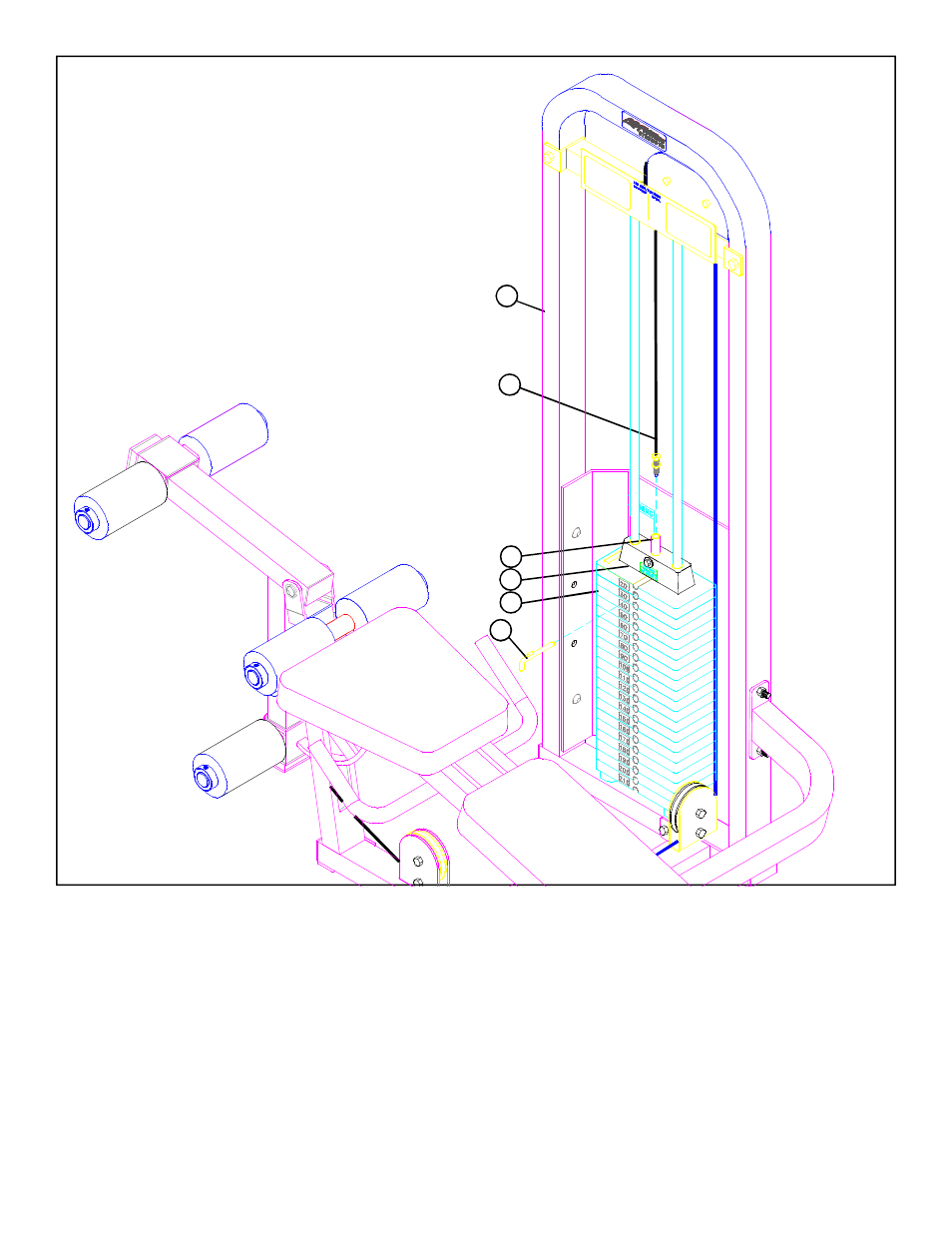

FIGURE 20
15
STEP 20:
• Screw the treaded end of the CABLE (23) approximately 3/4” into the end of the WEIGHT STACK SHAFT (19) and tighten jam
nut securely. See FIGURE 20.
• If the HEAD PLATE (20) does not sit on top of the first WEIGHT PLATE (57), push the head plate down, insert the SELECTOR
PIN (48) and perform several repetitions on the machine. This will relax the cable system and prevent the HEAD PLATE (20) from
lifting up.
• If after completing the previous step the HEAD PLATE (20) still does not sit on top of the first WEIGHT PLATE (57) or if there
is excess slack in the cable system, adjust the threaded end of the CABLE accordingly and retighten the jam nut.
23
19
48
20
57
1
Thank you for purchasing the LifeFitness 8235 LEG EXTENSION/LEG CURL. If unsure of proper use of equipment, call
your local LifeFitness distributor or call the LifeFitness customer service department at (800) 328-9714.
