Figure 15, Figure 16, Step 15 – Life Fitness 8235 User Manual
Page 12: Step 16
0
1
2
3
4
5
6
1/2
1/2
1/2
1/2
1/2
1/2
12

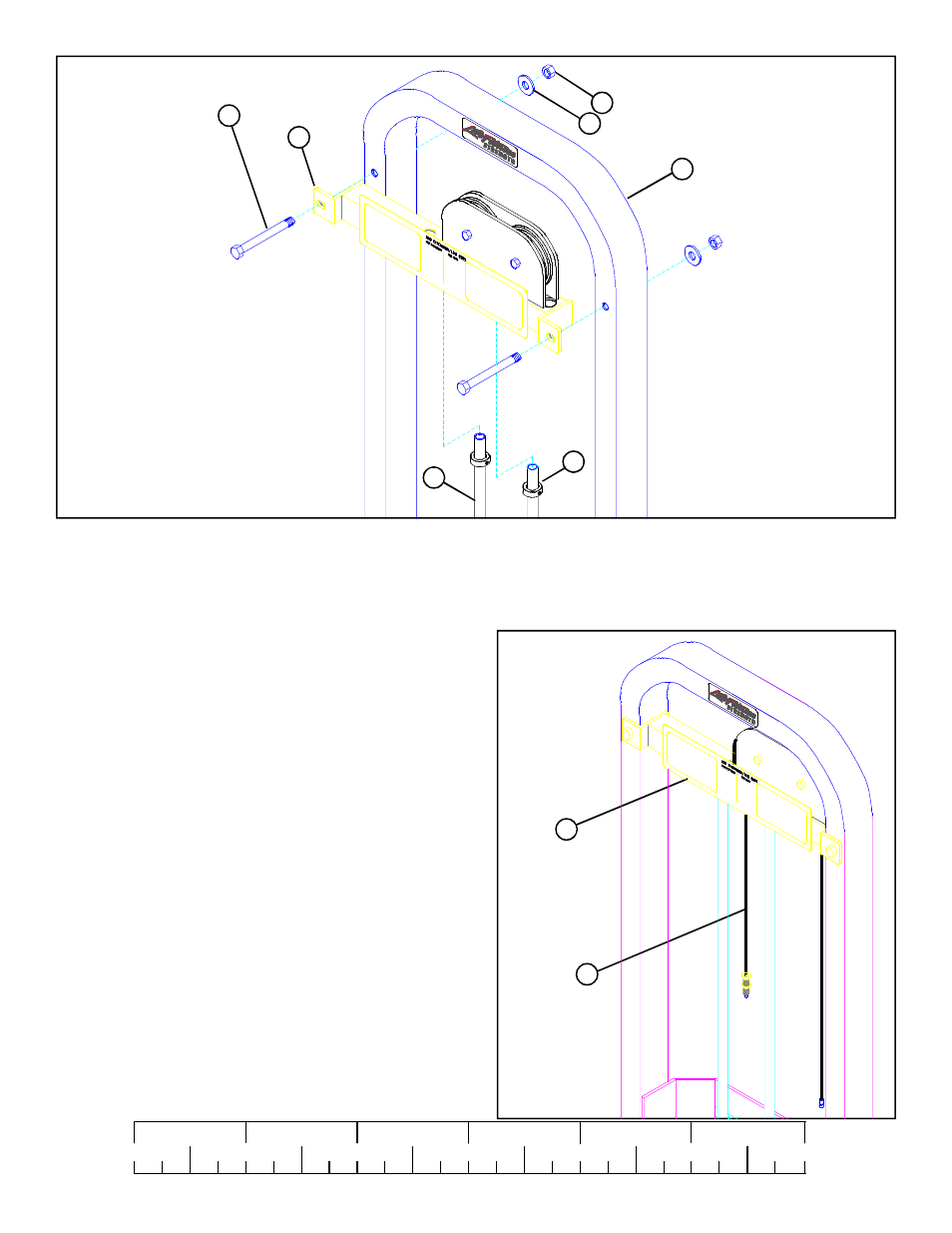

FIGURE 15
• Place TOWER BRACE (10) over the GUIDE RODS (5) and SECURELY assemble TOWER BRACE (10) to TOWER (1) using
two 1/2 X 4” BOLTS (33), two 1/2” WASHERS (40), and two 1/2” LOCK NUTS (43) as shown in FIGURE 15.
STEP 15:
40
43
10
33 1/2 X 4”
5
1
52
• Slide the 13/16” SHAFT COLLARS (52) to the top of the GUIDE RODS (5) and SECURELY tighten the SHAFT COLLAR
(52) set screws. See FIGURE 15.
FIGURE 16
• Loop the ball end of the CABLE (23) through the holes and around
the pulleys in the TOWER BRACE (10) as shown in FIGURE 16.
23
10
STEP 16:
