STEP 2:

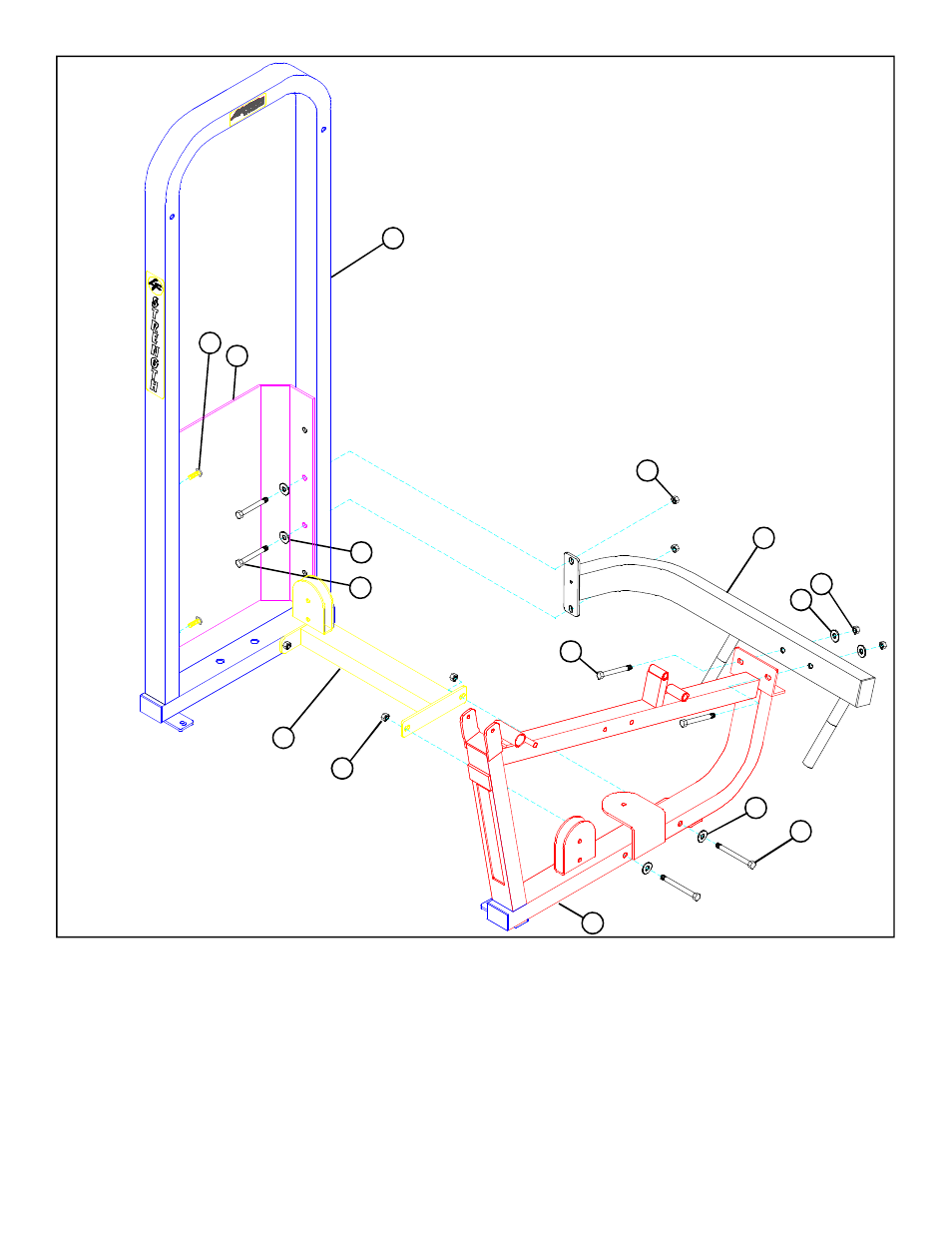

FIGURE 2
• LOOSELY assemble BENCH FRAME (7) to the LOWER CROSS SUPPORT (8) using two 1/2 X 4” BOLTS (33), two 1/2”
WASHERS (40) and two 1/2” LOCK NUTS (43). See FIGURE 2.
• LOOSELY assemble UPPER CROSS SUPPORT (11) to the TOWER (1) with SHROUD (16), and BENCH FRAME (7) using four
1/2 X 3” BOLTS (34), four 1/2” WASHERS (40) and four 1/2” LOCK NUTS (43). See FIGURE 2.
40
1
43
1/2 X 3” 34
34 1/2 X 3”
8
43
11
43
40
7
33 1/2 X 4”
40
5
3/8 X 1”
BUTTON
HEAD
CAP SCREW
39
16
• SECURELY assemble the other side of the SHROUD (16) to the TOWER (1) using two 3/8 X 1” BUTTON HEAD CAP SCREWS
(39) as shown in FIGURE 2.
• SECURELY TIGHTEN THE FRAME CONNECTIONS IN THE FOLLOWING ORDER:
1. LOWER CROSS SUPPORT (8) to the TOWER (1) and BENCH FRAME (7).
2. UPPER CROSS SUPPORT (11) to the TOWER (1) and BENCH FRAME (7).
