The following is a general description
of each component and its functions.
Please review this section carefully, as
it will give you a better understanding
as to how
Nfinity operates.
Unit Frame
Nfinity’s frame houses all of the other
system components. Looking at the
front of
Nfinity™, one will see a series
of plastic bezels. By grabbing these
bezels from the side and pulling out,
you will remove the bezel to reveal the
Battery / Power Module bays. The
bottom bezel covers the cooling fans
and the Manual Bypass Switch.
The User Interface Module is located
above the Power / Battery Module bays
for easy access. From here the user
may find out various information about
Nfinity’s condition. By moving the User
Interface and setting it on top of the
frame, you will see the System Control
Module bays.
Major Components

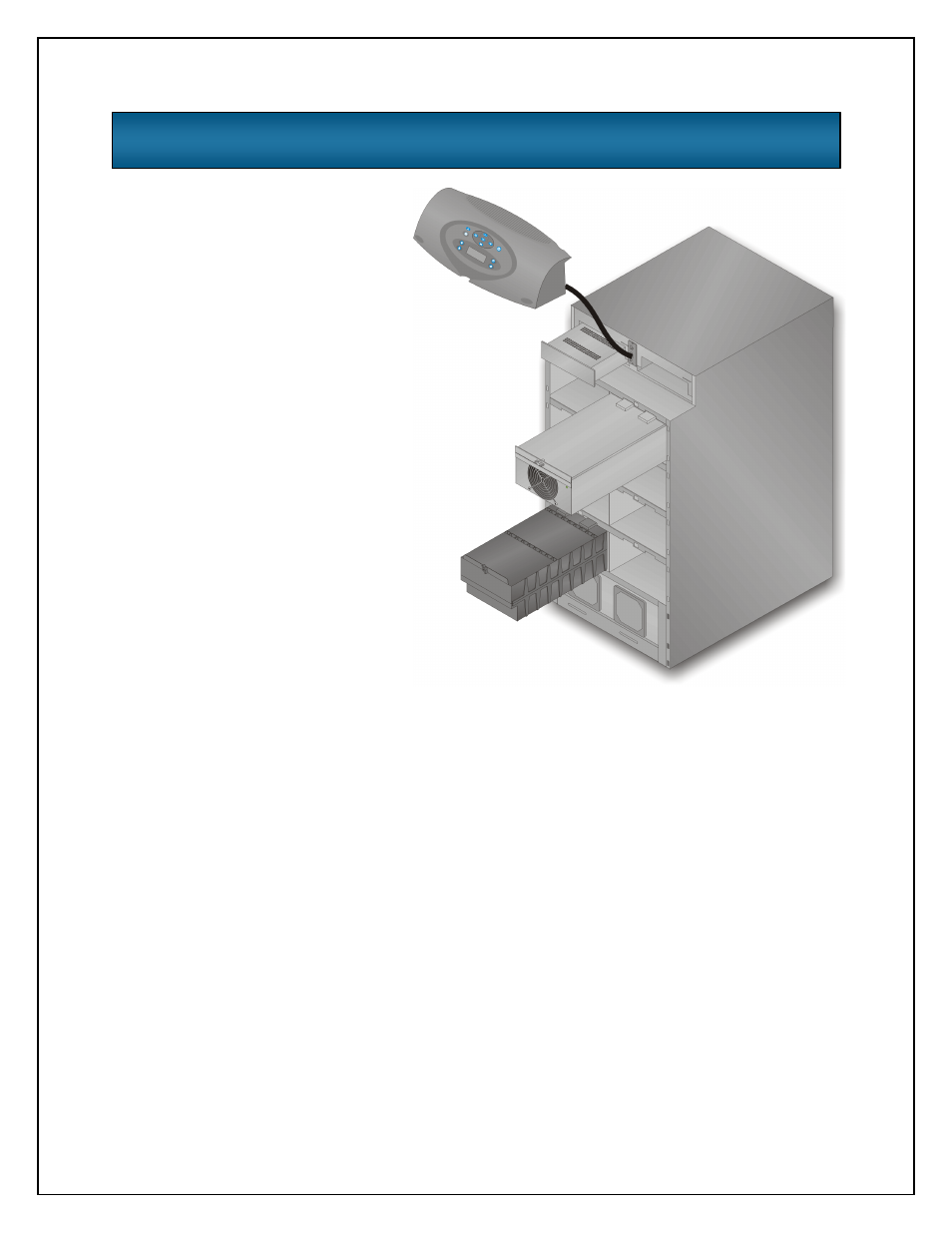

Nfinity’s frame with bezels removed
