29
PrintServer for USB with 4-Port Switch
Chapter 8: Bi-Admin Management
Starting the Bi-Admin Management Utility
Starting the Bi-Admin Management Utility

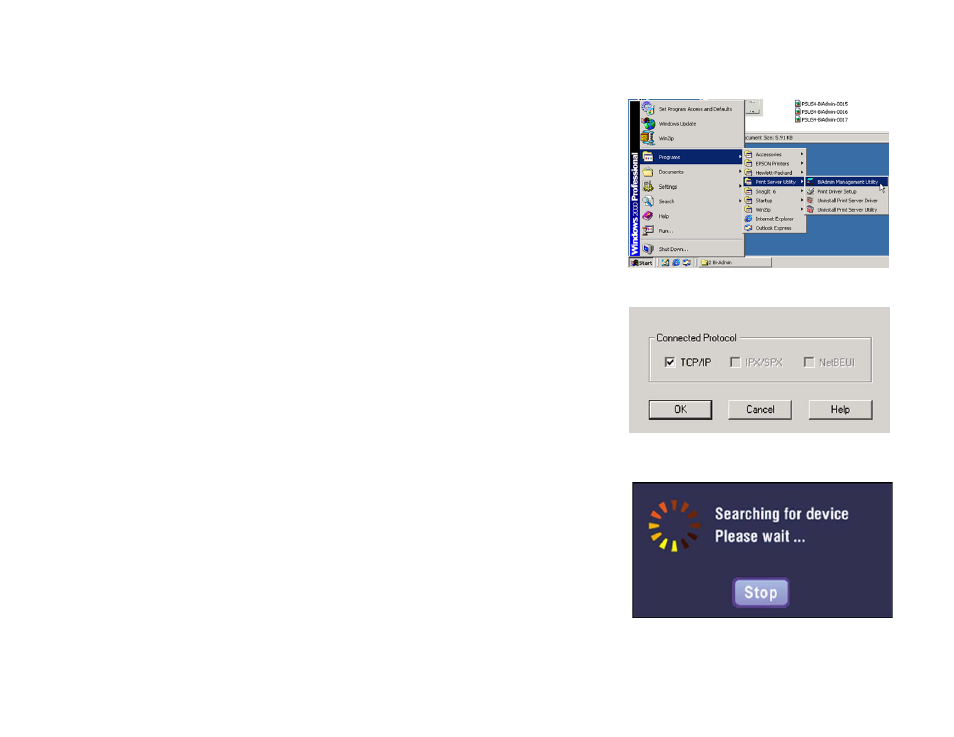

1. To start the Bi-Admin program, click on Start, Programs, Print Server Utility, and then Bi-Admin
Management Utility, as shown in Figure 8-6. If the Bi-Admin Management Utility icon has been created, you
can just double-click on it instead. You can drag the shortcut icon onto your Desktop for easy access to the
Bi-Admin Management Utility.
2. When the Bi-Admin Management Utility appears, it will ask for the Connected Protocol. (See Figure 8-7.)
Make sure the box next to TCP/IP is checked. Click the OK button.
3. Then the Bi-Admin Management Utility will automatically scan the network for the USB PrintServer. (See
Figure 8-8.)
Figure 8-6: Connected Protocol
Figure 8-7: Searching for Device
Figure 8-8: Setup Complete
