NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
7
REFRACTORY REPLACEMENT
The intense heat of the fire will normally cause
hairline cracks in the refractory. These cracks
can be minimized by proper curing as described
in “First Fires”. They will not normally dimin-
ish the effectiveness of the refractory. If large
cracks develop, then the refractory should be
replaced. To replace the refractory bricks, follow
these steps (see Figure 4):
1. Remove the baffle refractory and it’s iron angle
support;
2. Remove the front refractory;
3. Remove the bottom refractory;
4. Remove the sides refractories * ;
5. Remove the back refractory.
* Hold the back refractory when the last side refrac-
tory is removed, to prevent the back refractory to
fall in the firebox.
DOORS ADJUSTMENT
Glass doors may lose their adjustment during
transportation or installation of the fireplace.
A wrong adjustment may cause a loss in
combustion’s efficiency and control. The glass
doors must be parallel, at the same height and
must almost touch each other when closed.
Maximum spacing between the door's glass
is one sixteenth of an inch (1/16’’).
The glass doors can be adjusted by loosening
the three (3) screws of the hinges’ supports
(see fastening screws in Figure 5). If a minor
angular adjustment is needed, you may loosen
only two (2) of the three (3) screws using the
other as a pivot point.
HOW TO USE THE RETRACTABLE DOORS
AND FIRESCREENS
The Solana™ fireplace features retractable doors
and firescreens in order to allow a wider view
of the fire and save space when the doors are
opened. To retract the doors, simply open them
at 90° and push them into the opening on the
side of the firebox. The same procedure applies
for the retractable firescreens. (see Figure 3).
Note: Do not operate the fireplace with both
fire-screen and doors closed at the same time.
Figure 3 - Sliding Doors / Firescreens
WARNINGS
• Use only a Lennox Hearth Products glass doors, specifically designed
for the Solana fireplace.
• The fireplace cannot be operated without doors or firescreens.
Consult your dealer to select the correct replacement door(s) or
firescreen(s).
• Important! To assure proper alignment of glass doors: Install this
fireplace in a square and plumb condition, using shims as neces-
sary at sides and/or bottom.
Figure 5

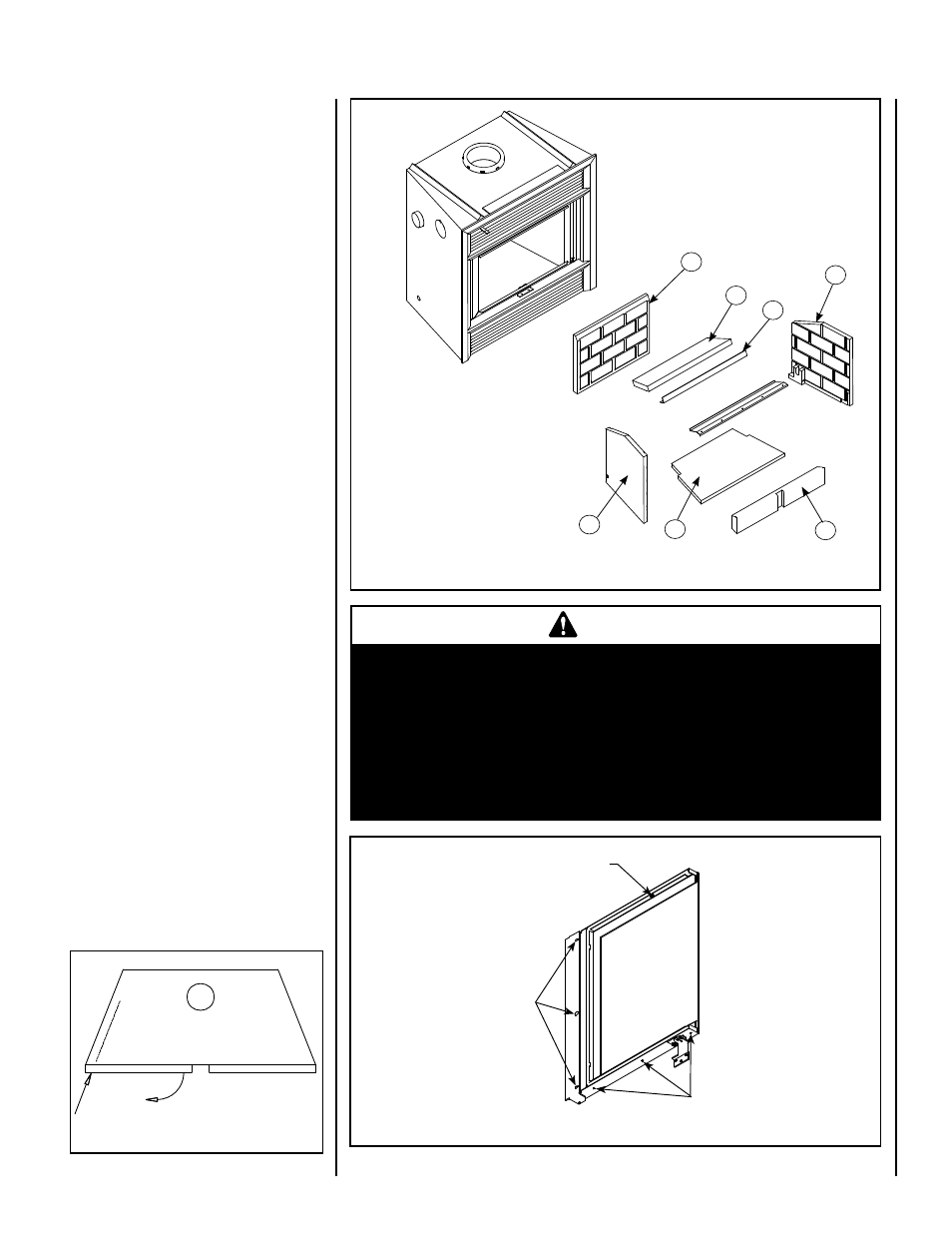

Figure 4 - Refractories Exploded View, Including Smoke Deflector
4
1 2
3
7
6
5
1. Front Refractory
2. Bottom Refractory
3. Left Side Refractory
4. Right Side Refractory
5. Back Refractory
6. Iron Angle Support
7. Baffle Refractory
Interior frame
Door to fireplace
fastening screws
Interior frame fastening
screws (10x)
