NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 1
REFLECTIONS TELEVISION
REPLACEMENT KIT
HEARTH PRODUCTS
KITS AND ACCESSORIES
INSTALLATION INSTRUCTIONS FOR THE REFLECTIONS ELECTRIC FIREPLACE
TELEVISION REPLACEMENT KIT (NUMBER: H6963)
P/N 506019-19
REV. N/C 01/2008
REPLACEMENT INSTRUCTIONS
Removal Of The Existing TV From The Reflections Electric Fireplace
Step 1. Disconnect the electrical power to the fireplace.
Step 2. Remove the doors from the fireplace.
Step 3. See Figure 1 for the location of the door track and remove it.
Keep the two (2) door clips and screws to be used again upon re-
assembly.

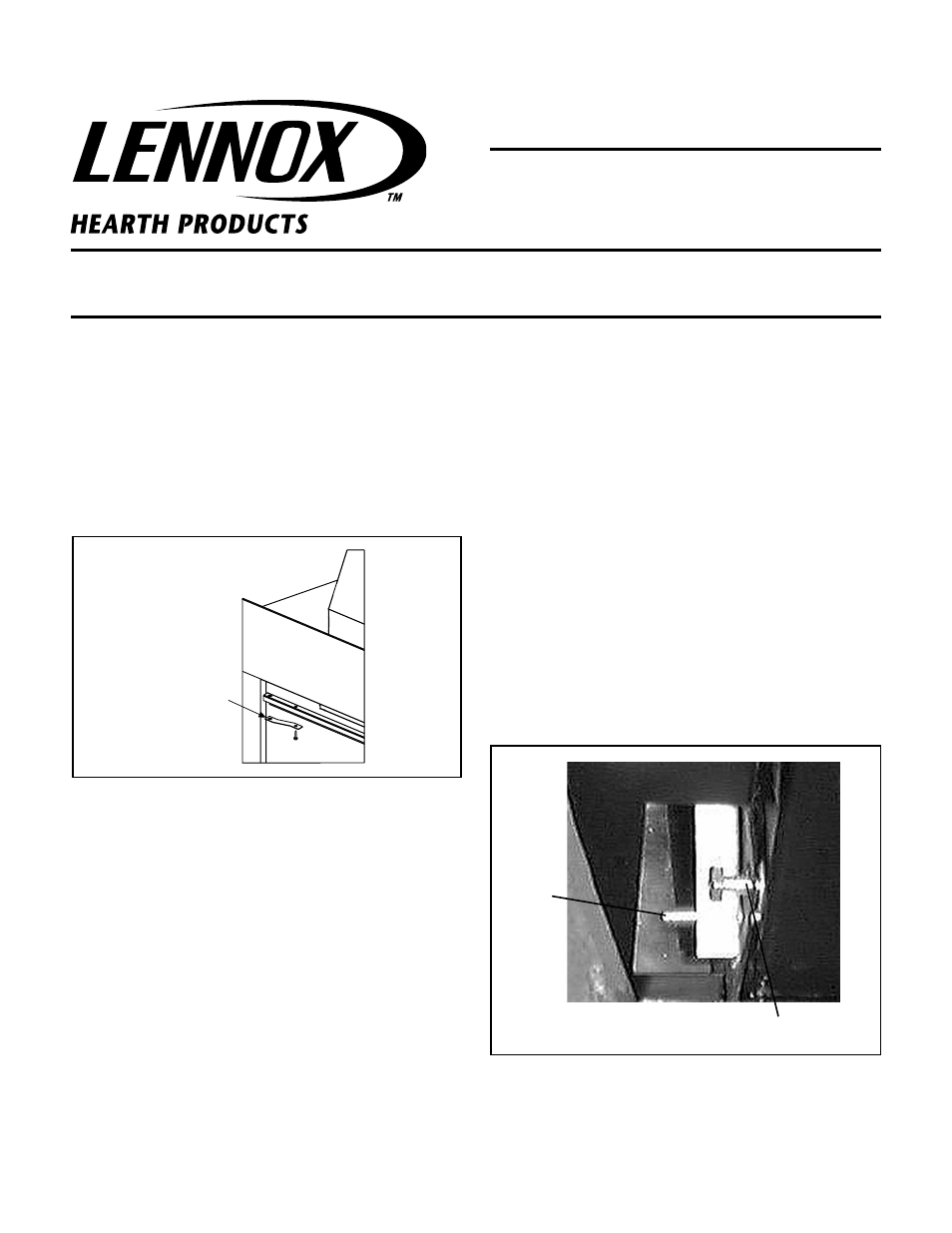

Figure 1
Door
Track
Step 4. Remove the reflective glass. To access the logs, grate embers
and lights, the glass panel needs to be removed. For an illustration of
the glass panel installation, (refer to
Figure 8, on page 4 ).
First sweep the screens inward and tie up and out of the way. The glass
is not secured by any fasteners. The back rests on two insulated tabs and
the front is hooked behind a lip.
CAUTION: WHEN REMOVING THE GLASS, DO NOT LET THE BACK
OF THE PANEL SLIP OFF OF THE INSULATED TABS IN THE BACK.
THIS COULD ALLOW THE GLASS TO DROP INTO THE REFRACTORY
PANELS OR LOGS AND BREAK THEM.
The lower front corners of the glass are exposed to provide a place
to grip the glass panel. Grip the corners firmly; lift the panel back
and up against the top of the unit.
Disengage the glass from behind the front lip and rotate the front
upwards. Slide one hand under the glass and support the panel.
Draw the glass out of the unit and set it carefully aside.
Glass Information
• This unit will not operate properly with missing or broken glass.
• Do not strike or slam the glass.
• Do not use abrasive cleaners to clean the glass.
• This appliance uses tempered glass. Replacement of the glass as
supplied by the manufacturer should be done by a qualified service
technician.
Step 5. Remove the Logs.
Step 6. Remove the Grate.
Step 7. Remove the Ember Bed.
Step 8. Disconnect and label the video and audio cables from the TV and
remove the IR module.
Step 9. Locate the two locking screws that secure the television
assembly and remove them (
see Figure 2 ).
Figure 2
Locking Screw
Latch
Rod
Step 10. Press upwards on the latching rods to free the television
assembly. Once free, the assembly will rotate down to a vertical position
hanging from the screen rods (
refer to Figure 3 ).
