4 Chapter 2: Getting to Know the ADSL Modem
The Front Panel
ADSL Modem
The Front Panel
The Modem's LEDs, where information about network activity is displayed, are located on the front panel.
Power Green. The Power LED lights up when the Modem is powered on.
Ethernet Green. The Ethernet LED serves two purposes. If the LED is continuously lit, the Modem is
successfully connected to a device through the Ethernet port. If the LED is blinking, it is an
indication of any network activity.
DSL Green. The DSL LED lights up whenever there is a successful DSL connection. The LED blinks
while establishing the DSL connection.
Internet Green. The Internet LED lights up green when an Internet connection to the Internet Service
Provider (ISP) session is established. The Internet LED lights up red when the connection to
the ISP fails.

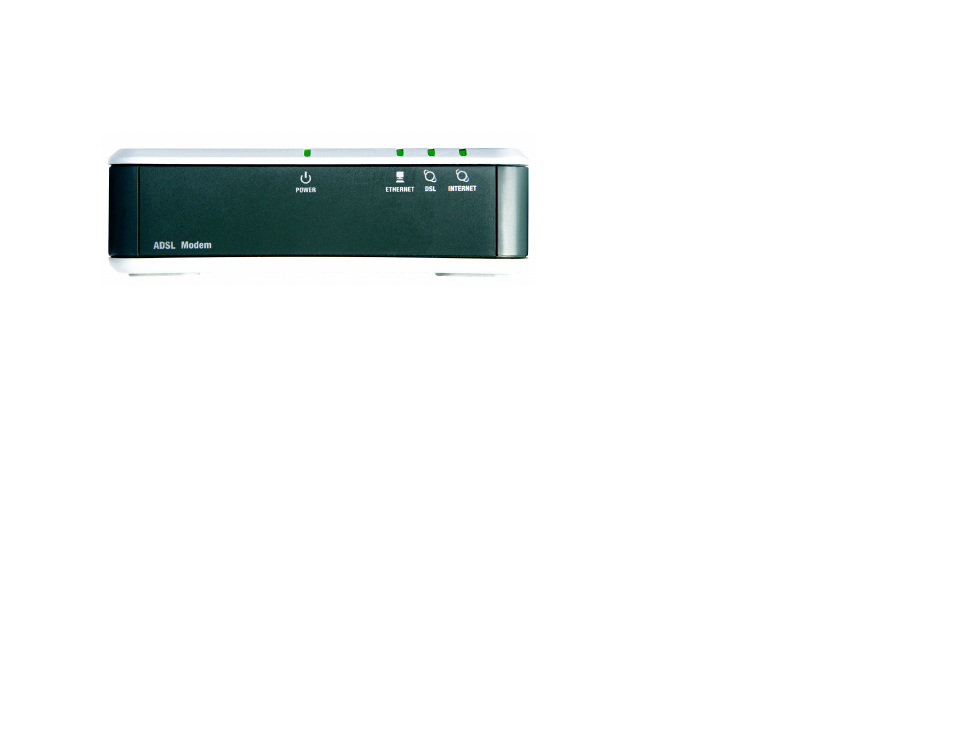

Figure 2-2: Front Panel
