24 Chapter 4: Configuring the ADSL Modem
The Status Tab
ADSL Modem
The Status Tab
Modem
This screen displays information about your Modem and its Internet connection.
Modem Information
Modem Information displays the Software Version, ADSL Version, Boot Code Version, and MAC Address.
DSL Status
The DSL Status will be displayed after connecting to the DSL. They are the DSL Status, DSL Modulation Mode,
DSL Path Mode, Downstream Rate, Upstream Rate, Downstream Margin, Upstream Margin, Downstream Line
Attenuation, Upstream Line Attenuation, Downstream Transit Power, Upstream Transit Power, and LOS Errors.
Internet Connection
The Internet Connections will be displayed after selecting the Internet connection number from the drop-down
menu. They are PPP Login, Internet IP Address, Internet Netmask, and Internet Gateway.
Local Network
The Local Network information that is displayed is the local IP Address, Subnet Mask, and DHCP Server. To view
the DHCP Clients Table, click the DHCP Clients Table button.
DHCP Clients Table. Click the DHCP Clients Table button to show the current DHCP Client data. You will see the
MAC address, computer name, IP address, and expiration date of the network clients using the DHCP server. (This
data is stored in temporary memory and changes periodically.) To delete a client from the DHCP server, select the
client, then click the Delete button.
Click the Refresh button if you want to Refresh your screen. Click the Close button to close the screen.

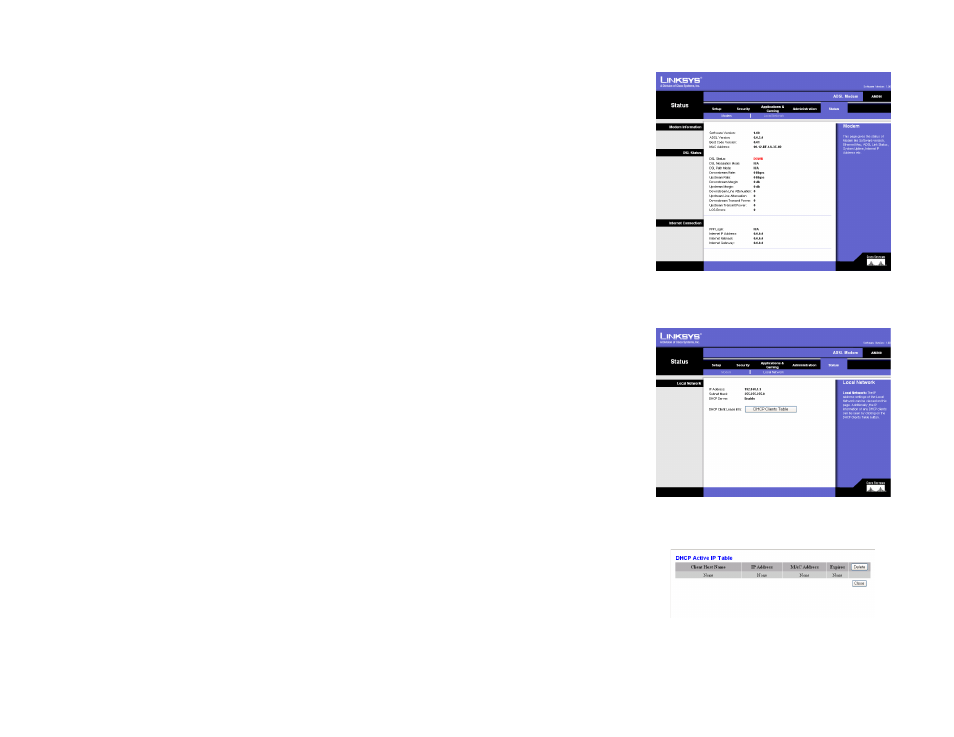

Figure 4-38: DHCP Clients Table
Figure 4-37: Local Network
Figure 4-36: Status
