6 Chapter 3: Setting Up and Connecting the ADSL Modem
Connecting the Modem
ADSL Modem
2. Connect one end of the provided Ethernet cable to your PC’s Ethernet port. Connect the other end of the
cable to the Ethernet port on the back of your Modem.
3. Connect the power adapter to your Modem and to the electrical outlet.
4. Turn on your PC.
The connection of the Modem is complete.

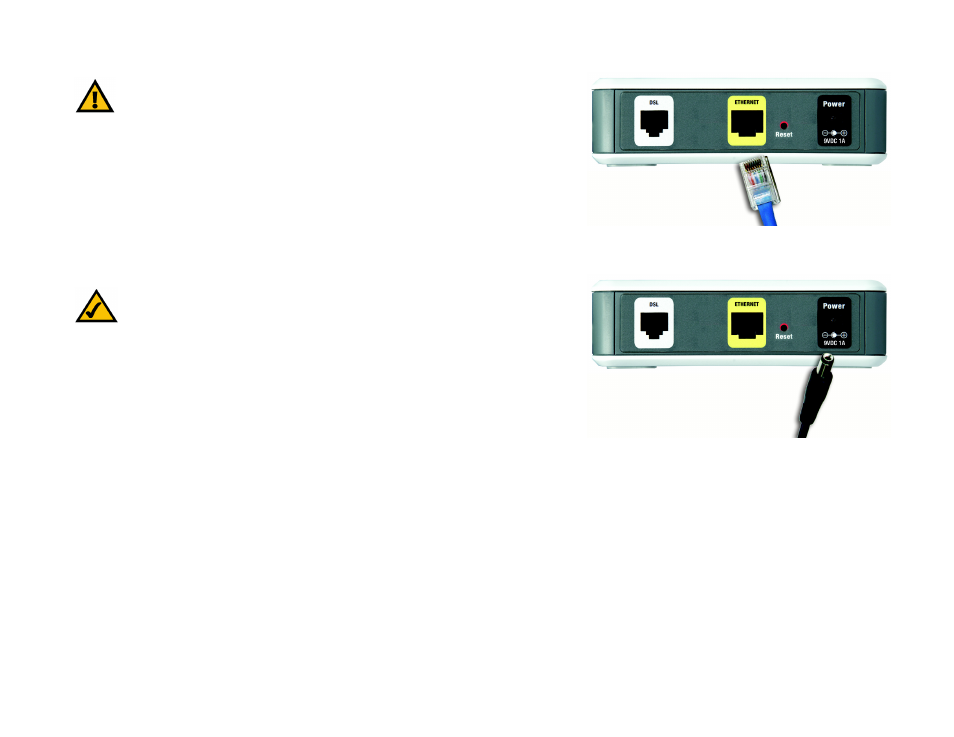

Figure 3-4: Power Connection
Figure 3-3: Ethernet Connection
IMPORTANT: For countries that have phone jacks with RJ-11 connectors, make sure to only place
the microfilters between the phone and the wall jack and not between the Modem and the wall
jack or your DSL will not connect.
For countries that do not have phone jacks with RJ-11 connectors (e.g. France, Sweden,
Switzerland, United Kingdom, etc.), except for ISDN users, the microfilter has to be used between
the modem and the wall jack, because the microfilter will have the RJ-11 connector.
NOTE: You should always plug the Modem’s power adapter into a power strip
with surge protection.
