CXS SERIES 2x2 CLEANGUARD CLASS 10,000 CLEAN ROOM
RECESSED FLUORESCENT

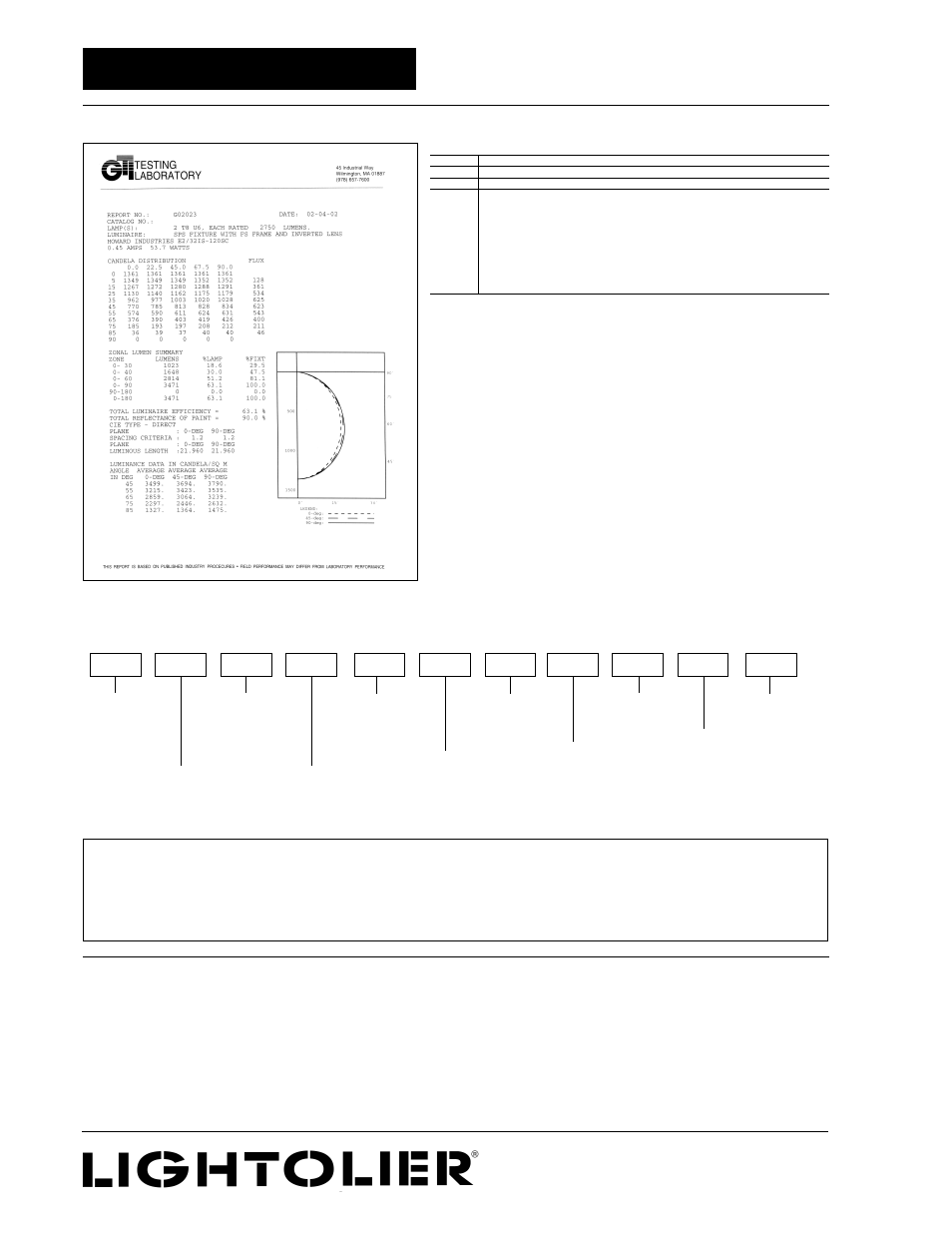

PHOTOMETRY
MODEL NO. CXS2GFSVI26U120SO
coefficients of utilization — zonal cavity method (effective floor cavity reflectance 0.20)
RF 20 20 20
RC 80 50 30
RW 70 50 30 50 30 10 50 30 10
1 69 66 63 62 60 58 59 58 56
2 63 58 54 54 51 48 52 50 47
3 57 51 46 48 44 41 46 43 40
4 53 45 40 43 38 35 41 38 34
5 48 41 35 38 34 30 37 33 30
6 45 37 31 35 30 27 34 30 26
7 42 33 28 32 27 24 31 27 23
8 39 30 25 29 24 21 28 24 21
9 36 28 23 27 22 19 26 22 19
10 34 26 21 25 20 17 24 20 17
room cavity ratio
ORDERING INFORMATION
Explanation of Catalog Number. Example: CXS2GFSVI26U120SOGLR
CLEANGUARD
WET
LOCATION
Class 10,000
or
100,000
Clean Room
STATIC
FIXTURE
WIDTH
CEILING TYPE:
G= Grid (lay-in T bar)
F=Flanged (overlap) Z spline
and plaster frame
LENS FRAME:
FS= Flat steel frame
RA=Regressed
aluminum frame
FA=Flat aluminum
frame
LENS/SHIELDING TYPE:
VI=(virgin acrylic) .125
standard. For options
consult factory.
Smooth side of
lens towards room.
LAMP
QUANTITY:
2=2 Lamp
3=3 Lamp
LAMP/
FIXTURE LENGTH:
2U=T8, 1-5/8" U Lamp
17=T8, 2' Lamp
6U=6" U Lamp (T8)
FT=Twin Tube T5
(Nominal 24")
VOLTAGE:
120 or 277
BALLAST TYPE:
< 20THD < 10THD
1-1 & 1-2 Lamp Elec. T8 SO* H I *
1-3 Lamp Elec. T8 O3* H3*
1-1 & 1-2 Lamp Elec. TT5 SB* I B*
(40 Watt)
1-3 Lamp Elec. TT5 X3* I 3*
LOL T8 Dimming PS * -
LOL TT5 Dimming PB * -
*Instant Start Standard
OPTIONS:
Add appropriate suffix
to catalog no., ie: (GLR)
SPECIFICATIONS:
MATERIALS: Chassis parts are die-formed code gauge cold rolled steel.
Housing with side rails hemmed over and housing ends turned-in for safe
handling.
FINISH: Chassis exterior–black baked polyester enamel. Cavity–white
baked polyester enamel minimum 86% reflectance. Phosphate undercoating.
LENSES: VI (standard) extruded virgin acrylic, 3/16" square based female
cones, running 45° to the panel edge, .125" nominal thickness (similar to
pattern 12).
ELECTRICAL: Thermally protected class “P” ballast C.B.M. approved, non
PCB. If K.O. is within 3" of ballast, use wire suitable for at least 90°.
LABELS: I.B.E.W./UL and ULc Listed.
We reserve the right to change design, materials and finish in any way that will not alter installed appearance or reduce function and performance.
OPTIONS/ACCESSORIES
PLASTER FRAME: Catalog Number PF24.
CONTINUOUS ROW INSTALLATION: For F
type fixtures, half width flanges are required
between fixtures. Order Catalog Number:
S2FCTRIM (each joint).
FUSING: Internal fast-blow fusing.
SUFFIX: GLR.
Internal slow-blow fusing.
SUFFIX: GMF.
ELECTRICAL/WIRING OPTIONS:
Consult factory.
PRINTED IN USA 3/02
A Genlyte Thomas Company
Other dimming options. Consult factory.
TECHNICAL INFORMATION • (978) 657-7600
631 AIRPORT ROAD, FALL RIVER, MA 02720 • (508) 679-8131
C.F.I. DIVISION OF CANLYTE, INC.
525 EDUCATION ROAD, CORNWALL, ONTARIO
CANADA K6H 6C7 • (613) 938-6221
LER = FL - 56.0 IW - 53.7 BF - 0.87
Comparative yearly lighting energy cost per 1000 lumens = $4.24
CXS2GFSVI26U120SO
CX S 2 VI
