Detailed Installation Procedure 1-5
Copyright © 2002 - 2005 by LSI Logic Corporation. All rights reserved.
Step 7. Carefully insert PCI Bus edge connector J1 (see Figure 1.1 ) of
the host adapter into the PCI slot.
Make sure the edge connector is properly aligned before
pressing the board into place, as shown in
Figure 1.2 . The
bracket around the Small Form-Factor Pluggable (SFP)
transceiver cages should fit where you removed the blank panel.

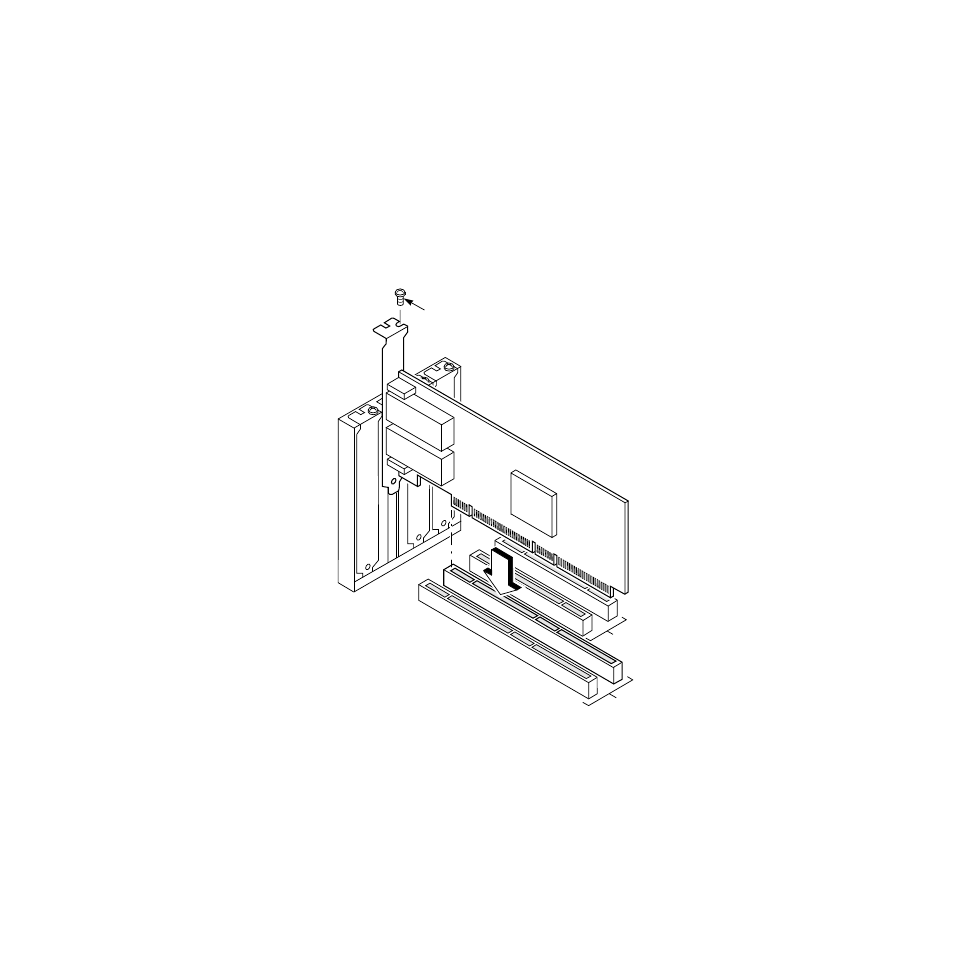

Figure 1.2 Inserting the LSI Logic Host Adapter
Step 8. Secure the board with the bracket screw (see Figure 1.2 ), then
make the external FC link connection.
Bracket Screw
32-Bit PCI Slots
64-Bit PCI Slots
