Lennox Hearth Winslow (PS40) User Manual
Page 11
11
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

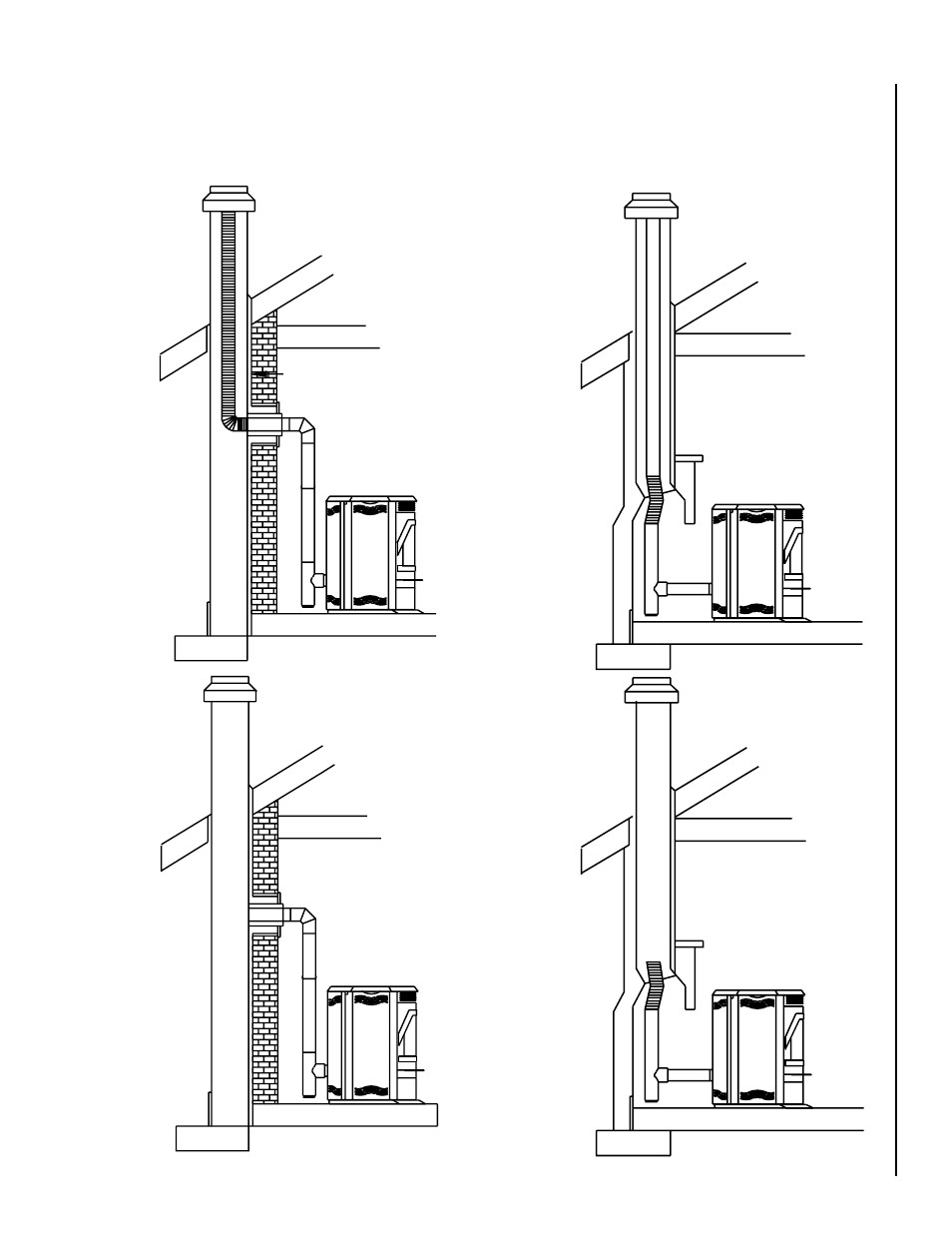

Masonry Chimney
When venting into a masonry chimney, the pellet pipe can terminate just
inside the chimney. However, it is recommended to run the pellet pipe to
the top of the chimney.
Fireplace
When venting into a fireplace chimney, the pellet pipe can terminate just
above the damper. However, it is recommended to run the pellet pipe to
the top of the chimney.
Figure 18
Figure 16
Figure 17
Figure 19
