Identifying
parts
on
the
system
board

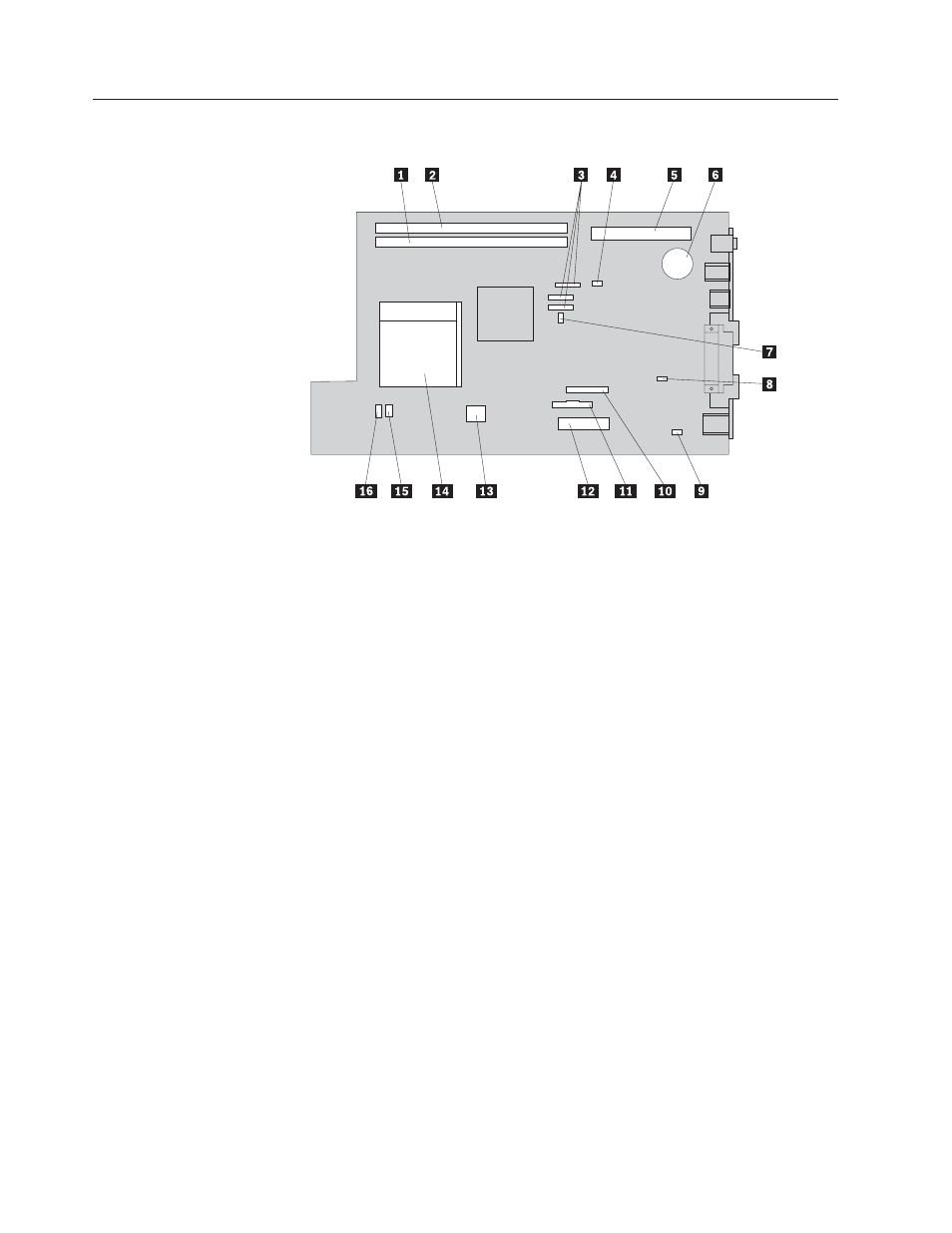

The
following
illustration
shows
the
locations
of
parts
on
the
system
board.
1
Memory
connector
1
9
Internal
speaker
connector
2
Memory
connector
2
10
Diskette
drive
connector
3
SATA
IDE
connectors
(3)
11
Front
panel
connector
4
Clear
CMOS/Recovery
jumper
12
Power
supply
connector
5
PCI
riser
connector
13
12v
power
connector
6
Battery
14
Microprocessor
7
Cover
presence
switch
(some
models)
15
Fan
connector
2
8
Temperature
sensor
connector
16
Fan
connector
1
4
Hardware
Replacement
Guide
