2.6 Relays/Alarms Tab
The “Relays/Alarms” tab configures the input alarms and associated notifications settings for the DVR.
Digital Inputs 2.6.1
Digital inputs are alarms triggered by external circuits. The input alarm can be used to trigger audio and
video recording.

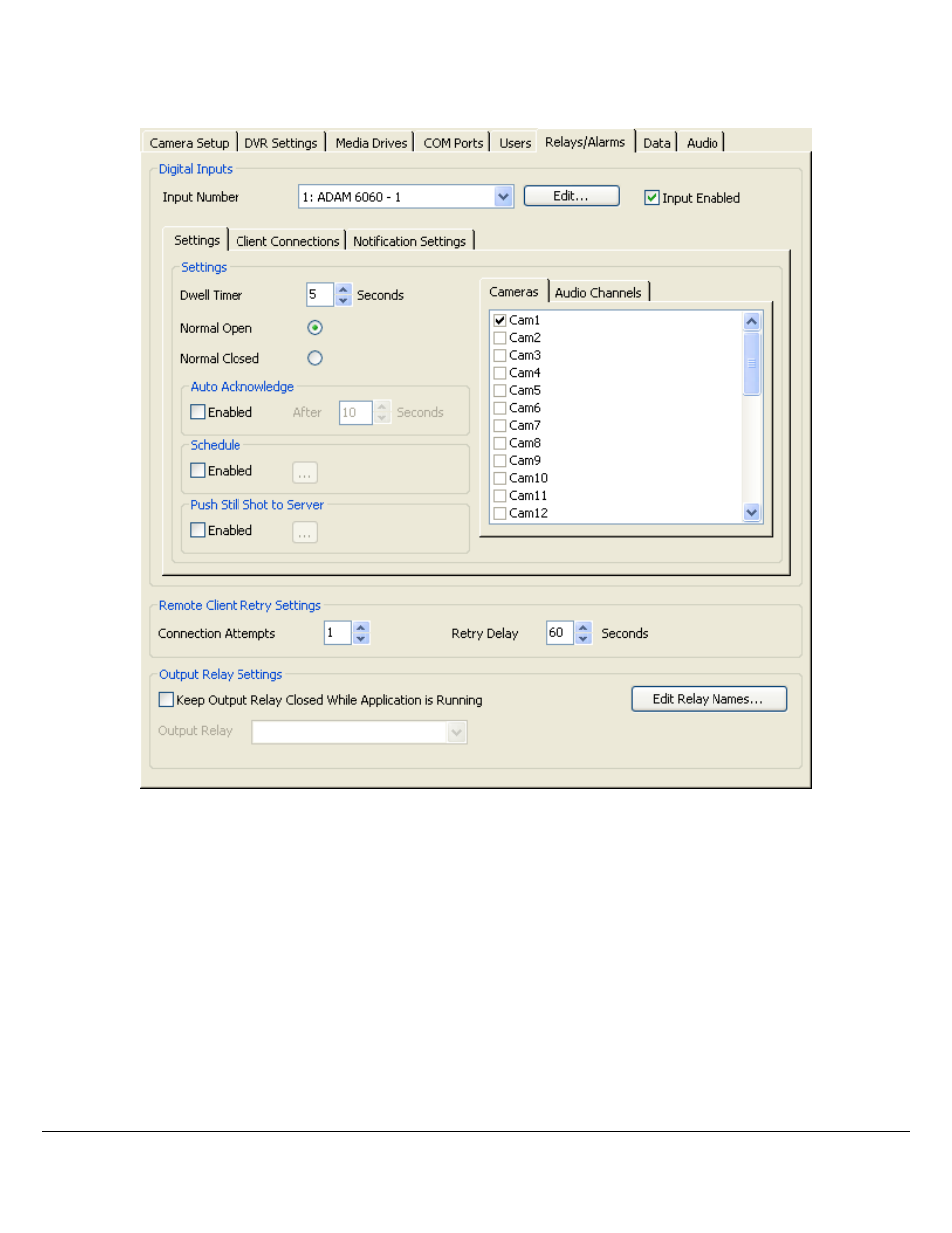

To configure a digital input, select the “Input Number” from the dropdown list and check the “Input Enabled”
box. Using the “Cameras” and/or the “Audio” sub-tabs on the right side, select which cameras/audio
channels that will begin recording during the alarm event. You may choose multiple cameras and audio
channels for each configured alarm input. See the next section for further information on configuration
settings.
You can rename individual inputs to assist in ease of use and configuration. Click the “Edit…” button near the
input number dropdown and type in a new name for your input.
