ATTENTION : The instructions in this manual describe how to operate the DVR
using a mouse (included). When using a touch screen monitor (not included),
simply touch the on-screen buttons when told to click, swipe your finger
horizontally or vertically to scroll up / down, and touch to right-click and exit
menus. All the features of this DVR can be accessed using a touch screen monitor.
14
On-screen Display
On-screen Display
16-channel model shown

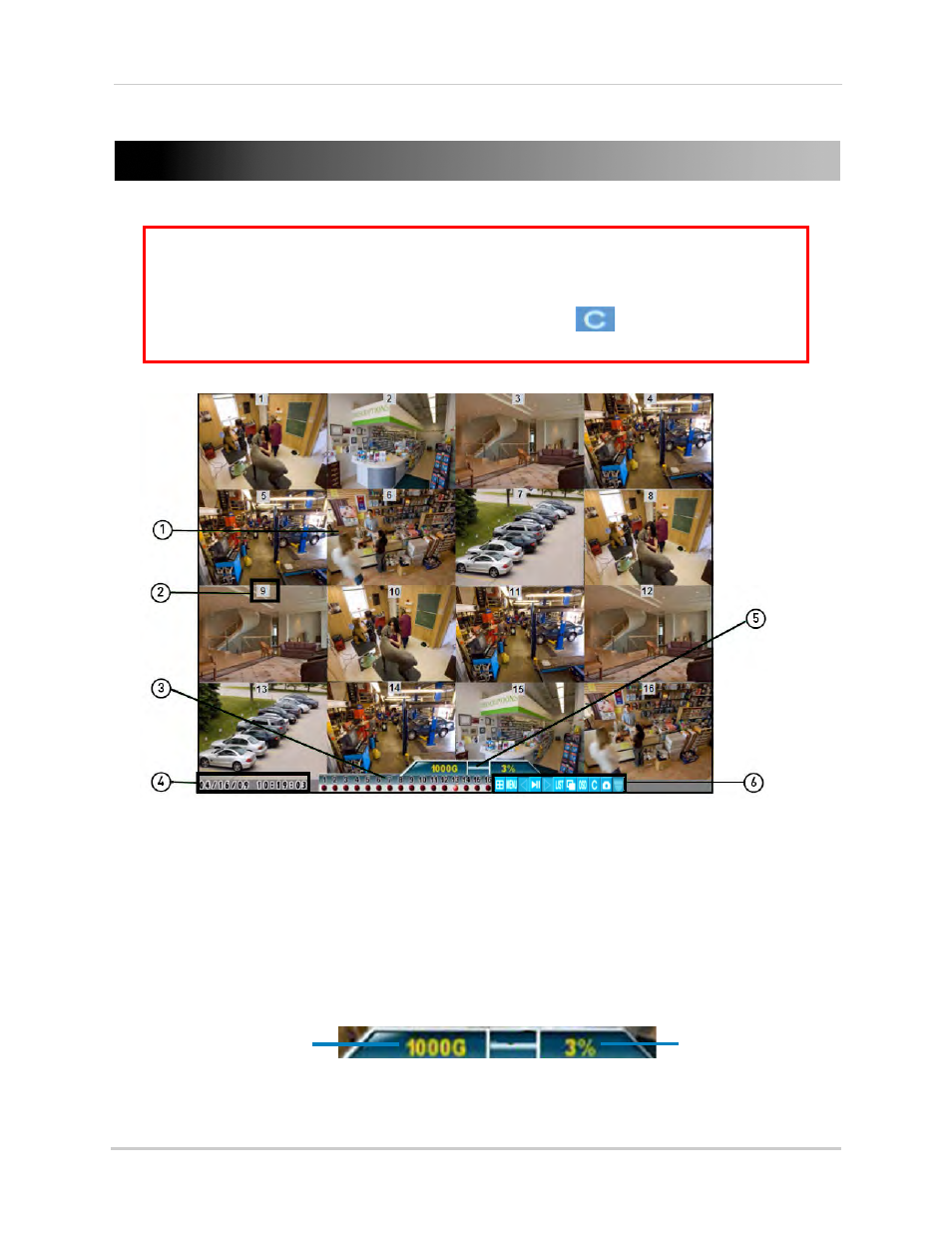

1 Display Screen: Shows live and recorded video in Full-screen / Single-Channel mode and
Split-Screen (16-way split on 16-channel model only) view.
2 Camera Number / Title: You can set the DVR to show the camera number, title, or no title.
3 Channels: Displays channels on the DVR. Icons flash red to indicate recording is in progress.
4 Date / Time: Displays the date and time on the DVR.
5 HDD Status: Displays the size of the pre-installed hard drive (for example, 1000GB) and the
recording space consumed on the hard disk (%).
Total size of hard drive Percent full
NOTE: This reading is an approximation.
