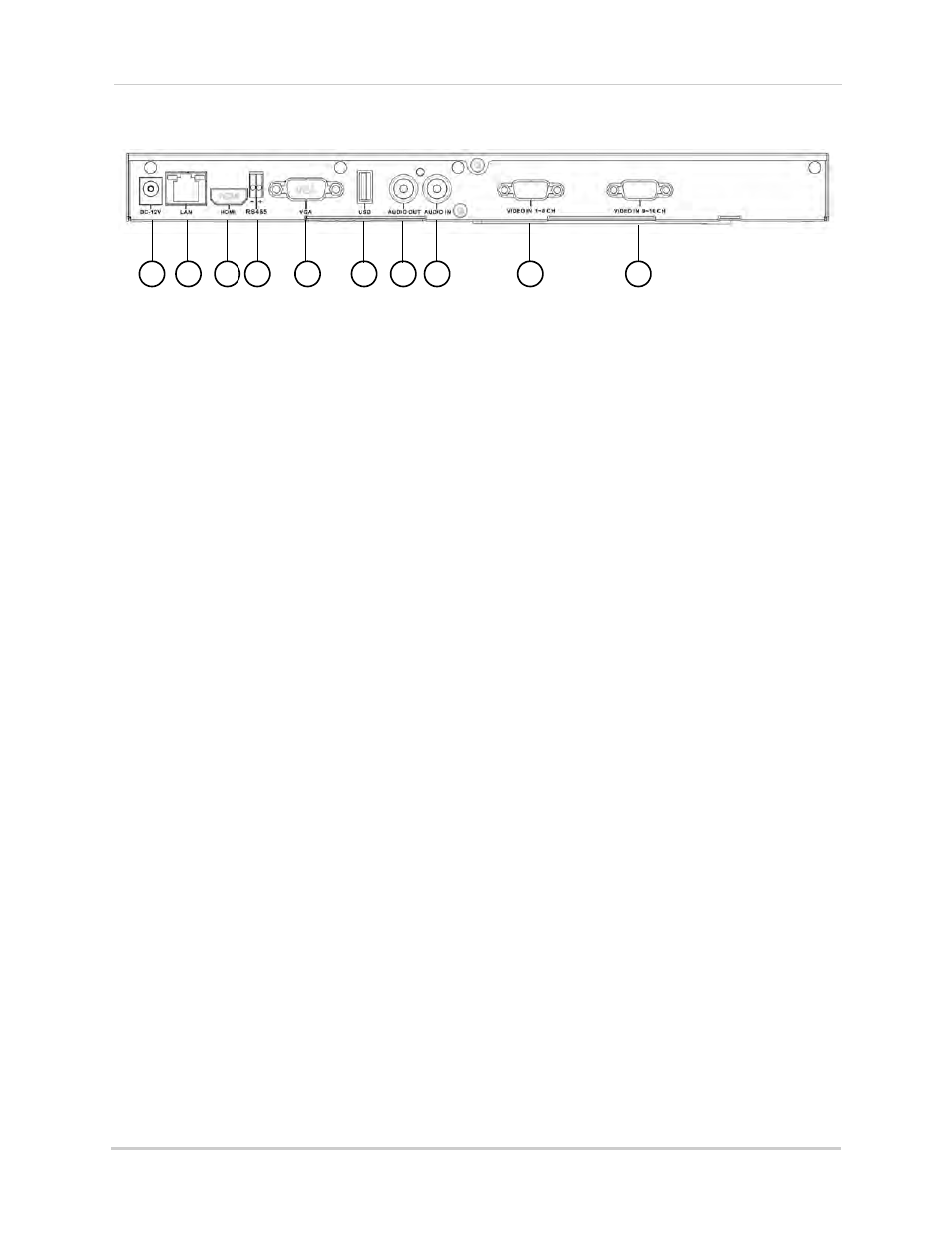

Rear Panel (16-Channel)
1
2
3
4
5
6
7
8
9
10
1
DC 12V: Connect the included DC power adapter to power on the DVR.
2
LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
3
HDMI: Connect to an HDMI-compatible TV or monitor (not included). Note that the DVR
cannot use a VGA and HDMI monitor at the same time.
4
RS485: Connect RS485 cables for compatible PTZ cameras (not included).
5
VGA: Connect to a VGA monitor (not included). Note that the DVR cannot use a VGA and HDMI
monitor at the same time.
6
USB: Connect a USB mouse (included), touch screen monitor (not included), USB flash drive
(not included) for data backup and firmware updates, or self-powered external hard drive (not
included) for disk mirroring (PC required) or expansion.
NOTE: The DVR supports a single external hard drive up to a maximum size of 2TB. The
external hard drive must be self-powered to work with the system; it cannot receive
power from the DVR’s USB port.
7
Audio Out
: Output for audio channel.
8
Audio In: Input for audio channel.
9
Video IN 1~8CH: Connect Octopus BNC connector here. Connect BNC connectors from
cameras 1-8 to Octopus BNC connector.
10
Video IN 9~16CH: Connect Octopus BNC connector here. Connect BNC connectors from
cameras 9-16 to Octopus BNC connector.
