Appendix C: Connecting PTZ Cameras
8 Click Protocol and scroll up/down to select the PTZ protocol for your camera.
9 Right-click until you have exited all menus to save your changes.
Controlling PTZ Cameras
To access PTZ controls locally on your DVR:
1 Select the channel that your PTZ camera is connected to. If your DVR is in Split-Screen view,
click the channel for your PTZ camera to view it in Full-Screen / Single-Channel mode.

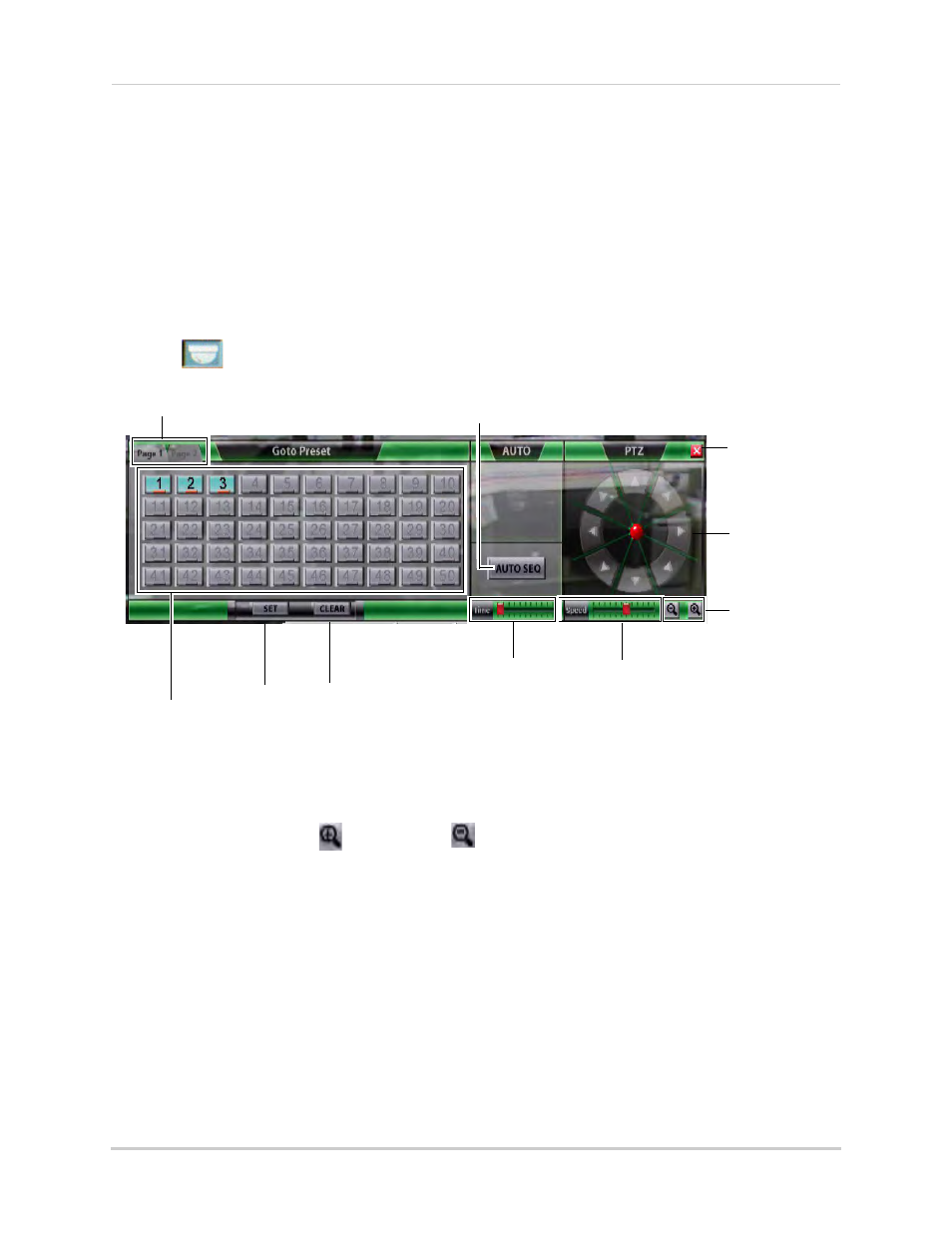

2 Click . PTZ controls appear.
Presets - 
Saved presets in blue
Available presets in gray
Close PTZ
controls
Manual pan/tilt
control
Pan/tilt speed
Zoom control
Set preset Clear preset
Start/stop Preset Auto-Sequence
Auto-Sequence
Dwell Time
Select Preset pages
To manually control the camera pan/tilt and zoom:
• Under PTZ, Click and drag the red joystick in the middle or click the arrows to adjust the
camera pan/tilt. Click to zoom in or to zoom out.
To adjust pan/tilt speed:
• Click inside the pan/tilt Speed adjuster.
NOTE: This setting only applies to manual pan/tilt control. It does not affect Preset
Auto-Sequence.
Using PTZ Presets
PTZ presets allow you to save PTZ camera positions for quick retrieval later. The DVR can
support up to 100 preset points. You can also use Preset Auto-Sequence to have the
camera automatically cycle through created presets.
NOTE: Click Page 2 to view presets 51~100.
