Appendix C: Connecting PTZ Cameras
Appendix C: Connecting PTZ Cameras
You can connect RS-485 PTZ cameras (not included) to the RS-485 port on the rear panel.

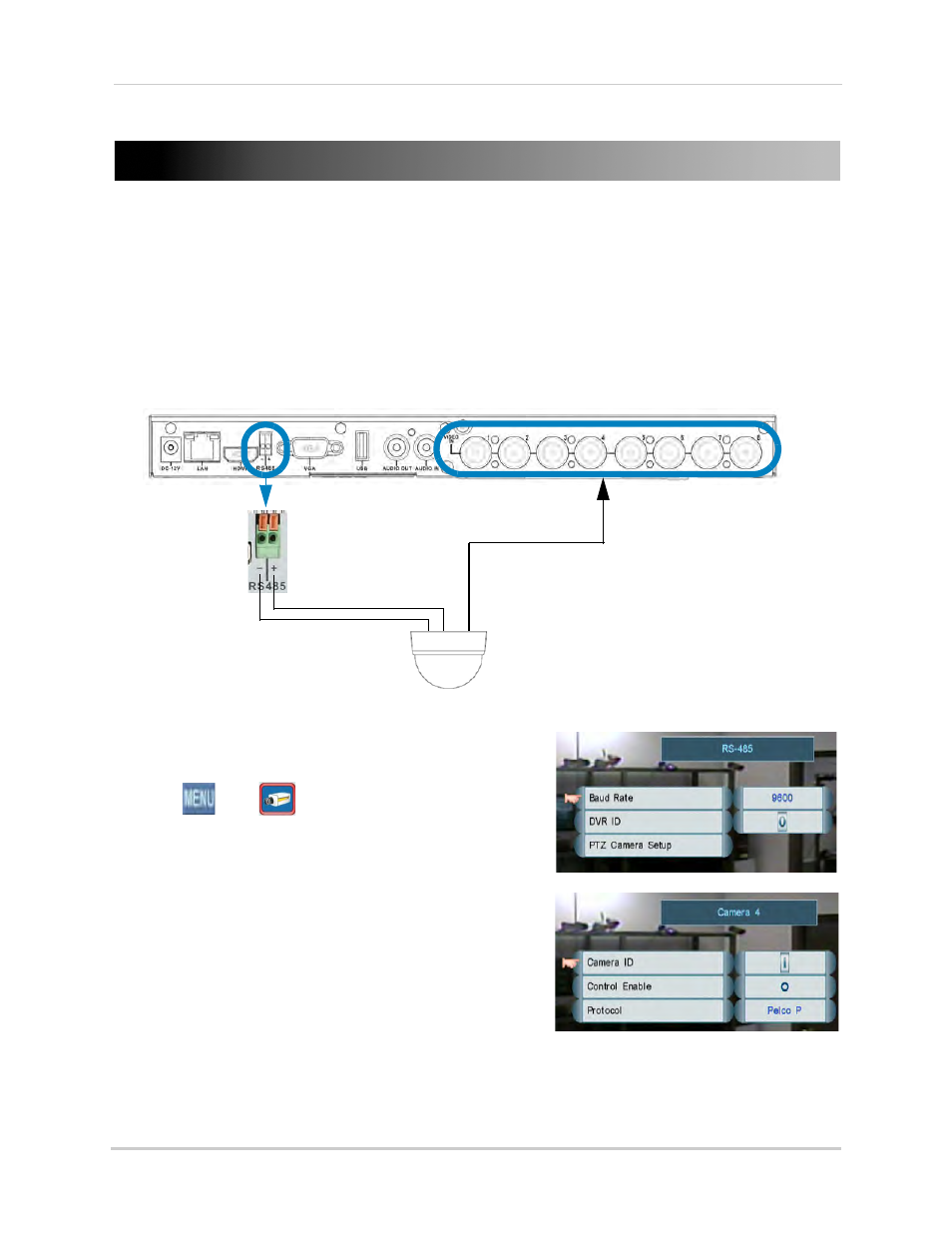

To connect a PTZ camera to the DVR:
1 Connect the Transmit+ (TX+) cable to the + side of the RS-485 port on the rear panel.
2 Connect the Transmit- (TX-) cable to the - side of the RS-485 port on the rear panel.
3 Connect the video cable to an available BNC port (8-channel) or an available connector on
one of the BNC Octopus connectors (16-channel).
BNC
TX+
TX-
8-channel model shown
To enter PTZ camera settings in the DVR:
1 Obtain the PTZ protocol details for your camera.
Check your camera’s instruction manual for details.
RS-485 Menu
2 Click then .
3 Click RS-485. The RS-485 Menu opens.
4 Click Baud Rate and scroll up/down to select the
baud rate for your camera.
PTZ Camera Setup Menu
5 Click PTZ Camera Setup. Select the channel your PTZ
camera is connected to. The PTZ Camera Setup Menu
opens.
6 Click Camera ID and scroll up/down to select the ID
for your camera.
7 Click Control Enable and select O to enable PTZ controls for the selected channel.
