48
Section 8: Maintenance & Lubrication
RCP2660, RCPM2660, RCP3060 and RCPM3060 Parallel Arm Rotary Cutter 316-111M 1/11/13
Table of Contents

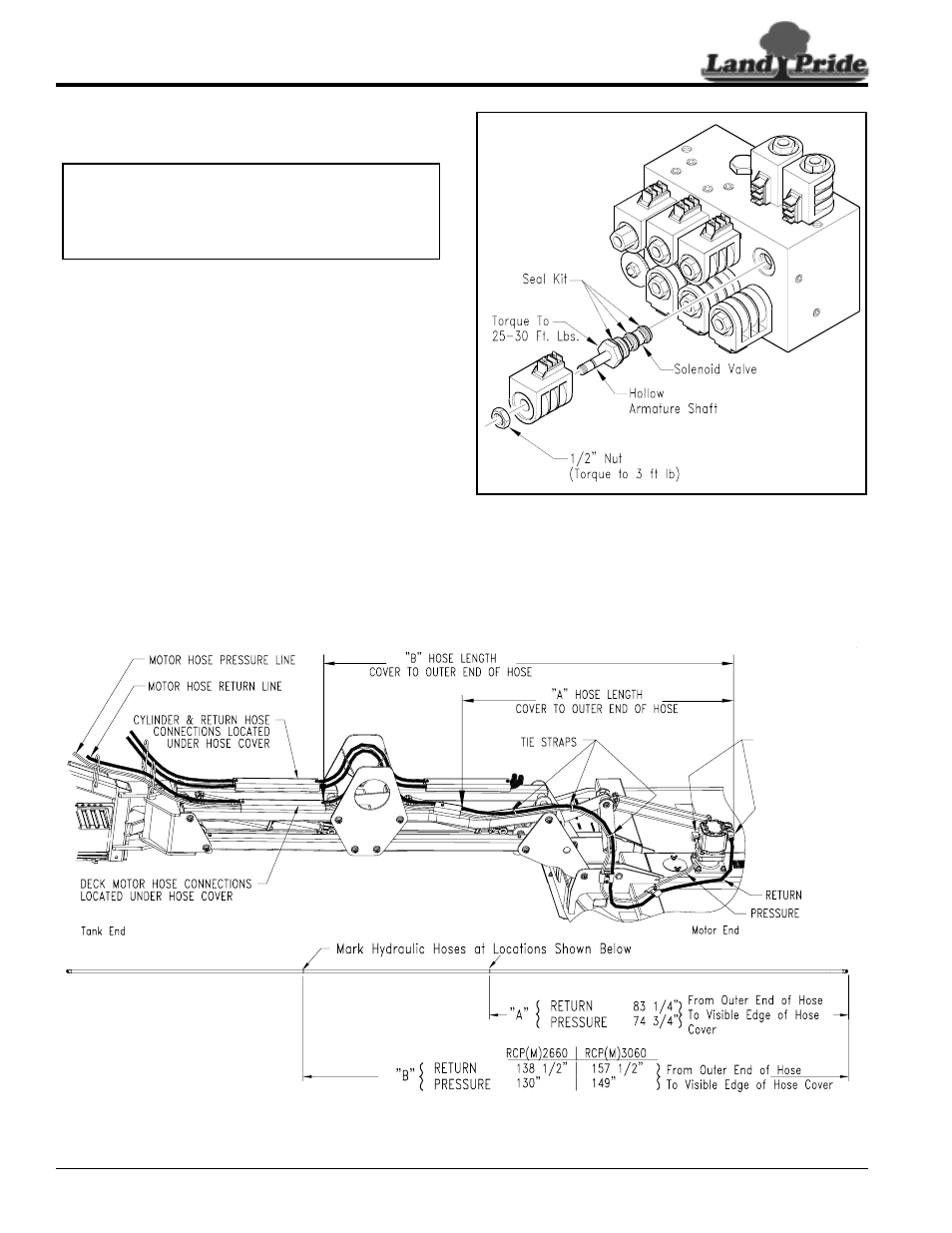

Solenoid Valve Block
Refer to Figure 8-4:
The 1/2" hex nut on the end of the solenoid armature
shaft must be removed to remove a solenoid valve from
the valve block. Use care when removing and replacing
this nut. Do not tighten nut with more than 3 ft. lbs. of
torque.
See your nearest Land Pride Dealer to purchase new
solenoid vales and/or seal kits.
Hydraulic Hose Replacement
Refer to Figure 8-5:
Replacement hydraulic hoses should be measured and
marked before installing to the parallel arm. Install each
hose with the mark located on the parallel arm in the
positions shown.
IMPORTANT: DO NOT exert more than 3 ft. lbs. of
torque on the hex nut securing the solenoid
armature. Remember, 3 ft. lbs. is slightly more than
finger tight! Overtightening this nut will distort hollow
armature shaft and may result in valve break down.
Solenoid Valve Block
Figure 8-4
24628
Hose Locations for Hydraulic Pump and Motor
Figure 8-5
**Twist return hose (811-404C)
counter-clockwise until it follows the
same contour as pressure hose
(811-403C).
*Orient 811-411C
Hyd. Fittings so they
are 45˚ down
towards deck
22001
