Operator Setup
Controller Access
The Controller in models SWR, SWC and SWD is hinged for
access and can be removed without taking off the operator’s
cover. It swings down for installation, programming,
and troubleshooting access (see Figure 8). Under most
circumstances you will not need to remove the Controller.
To access the Controller, lift the metal tab below the AC
power switch and swing the Controller down. The Controller
is protected by a plastic dust cover. To remove the dust
cover, loosen the cover’s wing-screw and lift the cover off.
To remove the Controller from the operator, slide the
assembly to the right until the hinges release. Once freed,
you can turn the Controller slightly and remove it from the
operator. Be careful not to pull on the cables too hard.
AC Power Connection
All Linear gate operators are supplied with a power
disconnect switch to turn on and off the power available to
the operator (see Figure 9). Following wiring specifi cations
on Page 2, incoming power should be brought into the
operator and connected to the labeled pigtails from the
disconnect box. A wiring connections print can be found on
the label inside the cover of the operator.
✓ NOTE: FOR SOLAR POWERED UNITS ONLY: The
APeX Controller’s AC power disconnect switch does not
turn off the Apex DC power when connected to solar
panels. It will however, disconnect DC motor power.
Unplug the solar panel input on the front of the Apex
Controller prior to servicing the unit.
Proper thermal protection is supplied with the operator. The
motor contains a thermal overload protector to guard from
overheating the motor due to overload or high-frequency
operation. This overload protector will reset automatically
after the motor cools down.
Earth Ground
Install a ground rod and connect it to the operator’s frame
in every gate operator installation. A good earth ground is
necessary to allow the Controller’s built-in surge and lightning
protection circuitry to work effectively. The physical bolting
of the operator to the mounting pad is not suffi cient for
a good earth ground.
✓ NOTE: Do not splice the ground wire. Use a single piece of solid
copper 12 AWG wire between the ground rod and the operator.
1. Install an 8-foot long copper ground rod next to the operator mounting
pad within three feet of the operator.
2. Use a clamp to connect a solid copper 12 AWG ground wire to the
ground rod.
3. Route the ground wire to the operator.
4. Connect the ground wire to the operator’s frame.
LIFT UP ON TAB
CONTROLLER SWINGS DOWN
UNSCREW KNOB
TO REMOVE
CONTROLLER
COVER

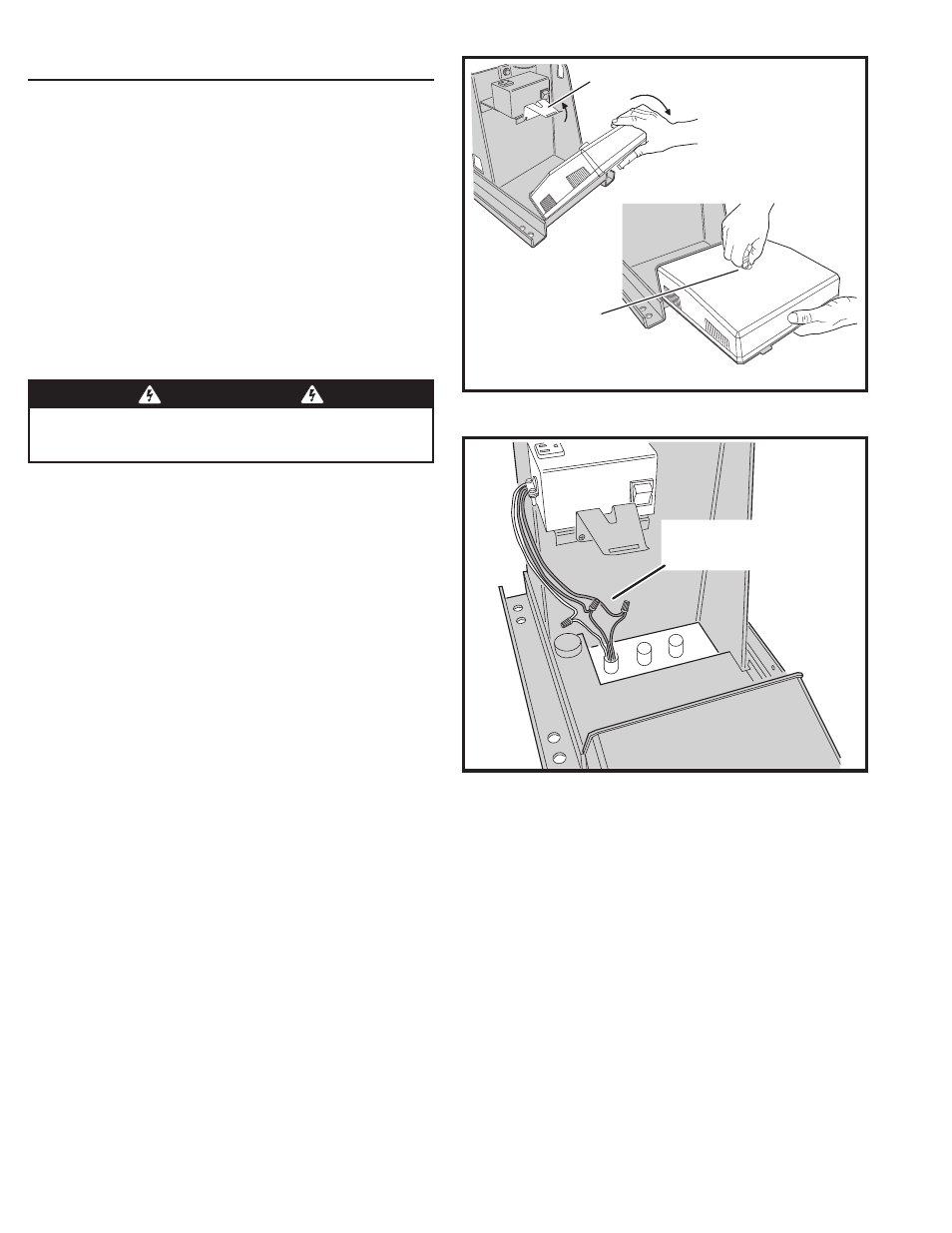

Figure 8. Controller Access
Figure 9. Power Disconnect Box Wiring
CONNECT AC POWER
PIGTAIL LEADS TO
THE AC SOURCE
115 VAC WIRING
GREEN - GROUND
BLACK - HOT
WHITE - NEUTRAL
230 VAC WIRING
GREEN - GROUND
BLACK - LINE 1
BLACK - LINE 2
WARNING
ALL AC ELECTRICAL CONNECTIONS TO THE POWER SOURCE AND
THE OPERATOR MUST BE MADE BY A LICENSED ELECTRICIAN AND
MUST OBSERVE ALL NATIONAL AND LOCAL ELECTRICAL CODES
