SWR • SWC • SWD Swing Gate Operator Installation Guide
- 3 -
227965 Revision X22 8-11-2011
Mounting Pad Installation
The gate operator mounts bolted to a custom poured
concrete mounting pad. The pad supports the operator and
prevents it from twisting during operation.
An optional post mount kit is also available (P/N 2120-483)
which allows installation without a concrete mounting pad.
Mounting Pad Specifi cations
Recommended pad size is 24” x 20” x 18” deep minimum.
Pad depth should be set according to local codes and at
least as deep as frost line.
If soil conditions may cause the operator and pad to shift or
twist during operation, anti-rotation legs may be required.
Use two 6” diameter, 10” deep legs to counteract this
problem as shown.
5/8” J-bolts may be set into the concrete before it sets
following the dimensions shown, or drilled after the concrete
sets.
✓ NOTE: Maximum gate opening angle is approximately 95 degrees,
depending on gate width. If larger opening angle is required,
non-standard positioning of the operator and modifi ed articulating
arms may be required. Contact the factory for technical information,
pricing, and availability.
14-1/2"
14" 24"
20"
2-3/4"
5"
10-1/2"
5"
8-1/2" 6-3/4"
CONDUIT
ENTRY ZONE
GATE LINE ON THIS SIDE GATE TOP VIEW
GATE HINGE
GATE POST
INSTALLER TIP:
MAKE A WOOD JIG TO
ALIGN AND HOLD J-BOLTS
AND CONDUITS UNTIL
THE CONCRETE SETS
5/8" x 8"
J-BOLTS (4)
1/2" FLEX
CONDUIT
18"
IN SOFT SOIL, POUR
TWO 6" DIAMETER
10" DEEP "LEGS" TO
PREVENT ROTATION
TOP OF GATE PLATE
24-7/8" ABOVE THE
TOP OF THE PAD
INSIDE VIEW OF GATE
GATE ARM
OPERATOR
CONCRETE
OPERATOR
PAD 3D VIEW
W
(TYP. 33")
GATE PLATE
ARM HOLE
2-3/4" BEHIND
CENTERLINE
OF GATE
2-3/4" 17"
7" W
W
MINUS
12"
OPERATOR
ACCESS DOOR
FACES AWAY
FROM GATE LINE
24-7/8"
"W" DIMENSION IS 33" FOR
STANDARD APPLICATIONS
(GATE ARM ACCOMODATES
TO 40" "W" IF EXTRA SPACE
IS REQUIRED)
EARTH
GROUND
STAKE
25" - 30"
BACKSPACE REQUIREMENT
FOR ARM SWING IS 25" STANDARD OR
UP TO 30" WITH FULL ARM EXTENSION
"RIGHT-HAND"
INSTALLATION

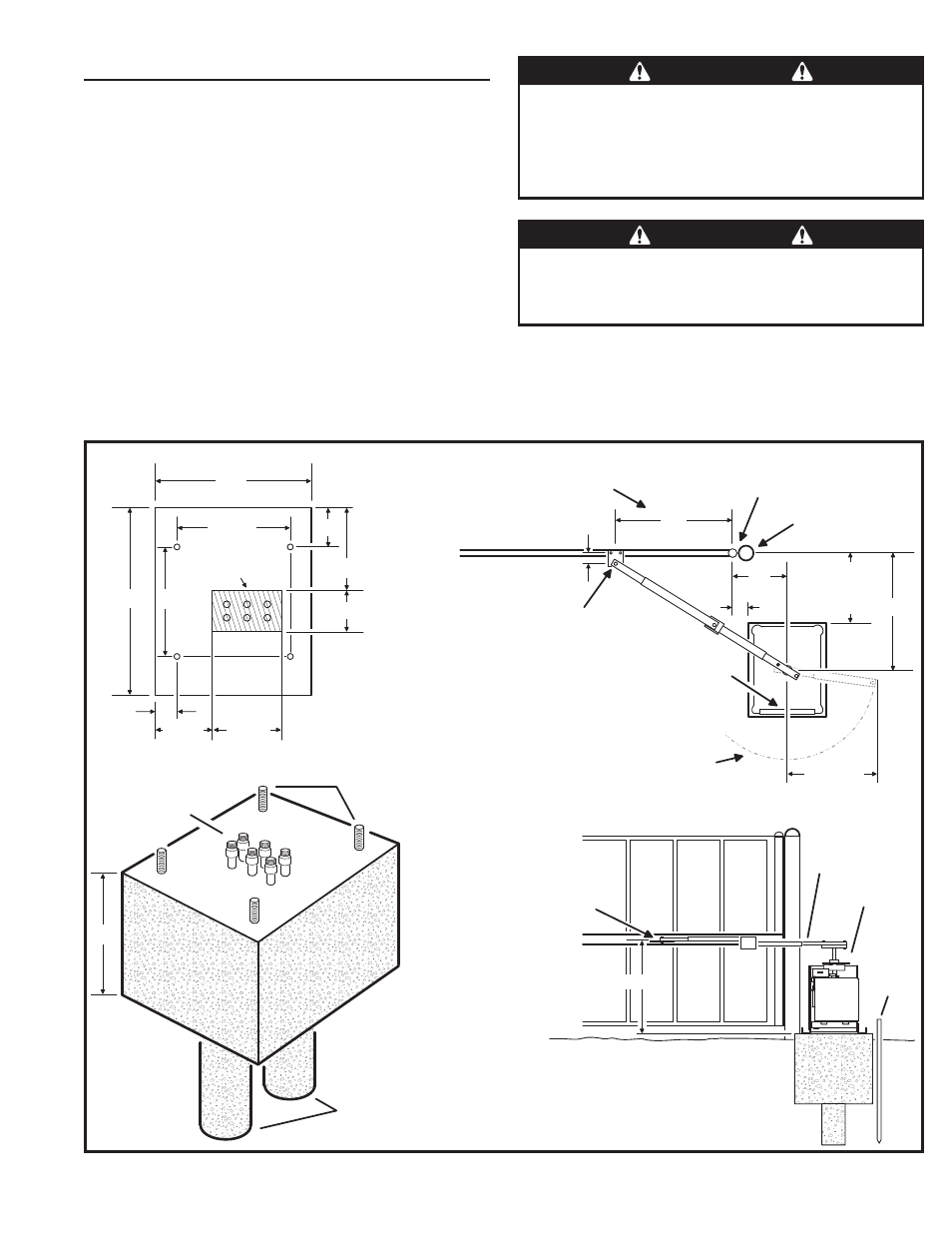

Figure 1. Mounting Pad Specifi cations
WARNING
The operator is intended for installation only on gates used for
vehicles. Pedestrians must be supplied with a separate access
opening. The pedestrian access opening shall be designed to
promote pedestrian usage. Locate the gate such that persons
will not come into contact with the vehicular gate during the
entire path of travel of the vehicular gate.
WARNING
The gate must be installed in a location so that enough
clearance is supplied between the gate and adjacent structures
when opening and closing to reduce the risk of entrapment.
Swing gates shall not open into public areas.
