System board LEDs

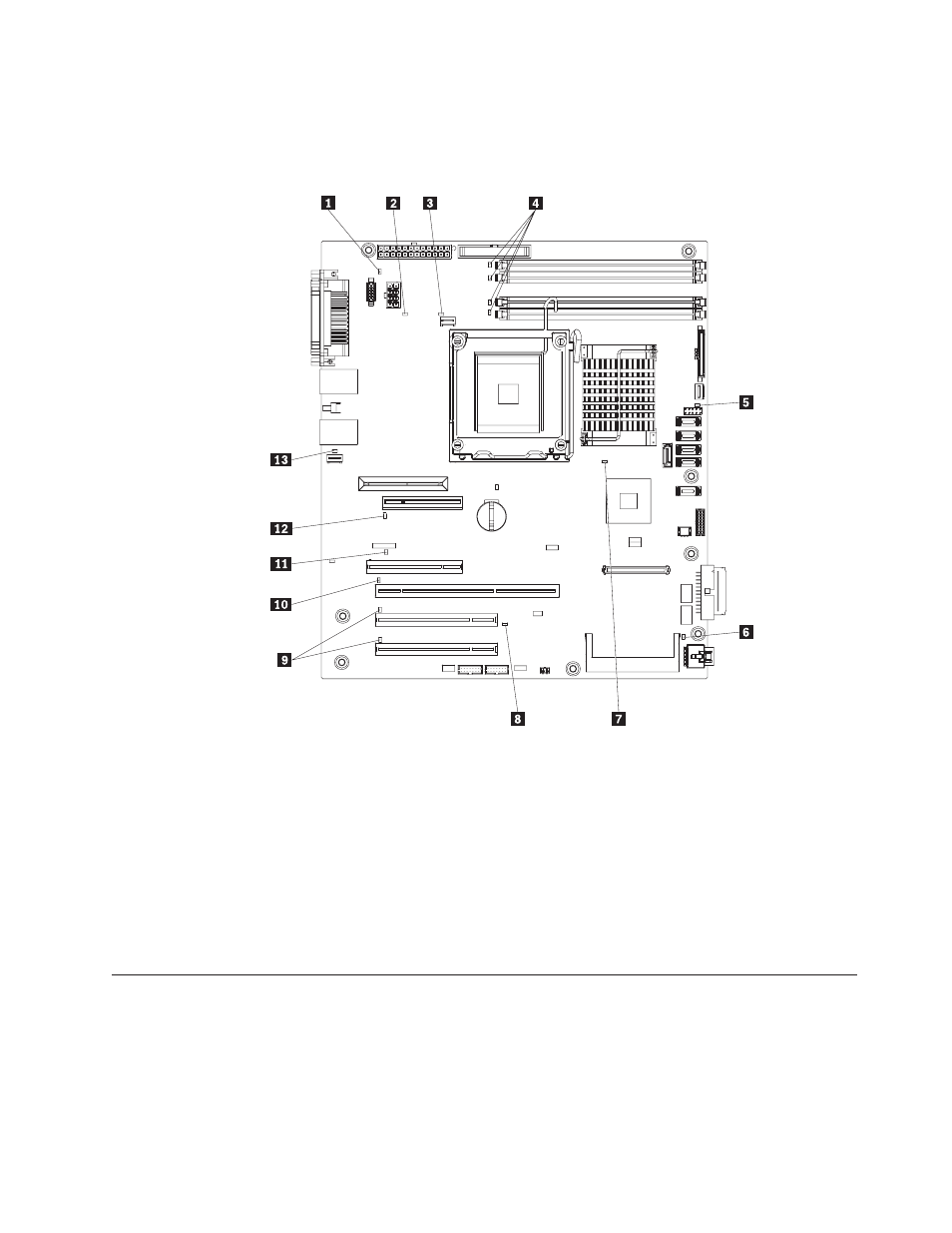

The following illustration shows the light-emitting diodes (LEDs) on the system
board.
1 Standby power LED 8 Mini-BMC heartbeat LED
2 Board VRD fault LED 9 PCI 32-bit 33 MHz LED
3 Microprocessor fan LED 10 PCI-X 64-bit 133 MHz LED
4 DIMM LED 11 PCI Express x4 LED
5 Hard drive fan LED 12 PCI Express x8 LED
6 Mini-PCI slot LED 13 System fan LED
7 Microprocessor LED
For more information about the system board LEDs, see the Hardware Maintenance
Manual , which is available on the Lenovo Support Web site.
Installation guidelines
Important: Before you install optional hardware devices, make sure that the server
is working correctly. Start the server, and make sure that the operating system
starts, if an operating system is installed, or that a 19990305 error code is
displayed, indicating that an operating system was not found but the server is
otherwise working correctly. If the server is not working correctly, see "Solving
Problems" in the Installation Guide for diagnostic information.
Chapter 2. Installing optional devices 19
