Working It Connecting External Speakers
2• 12

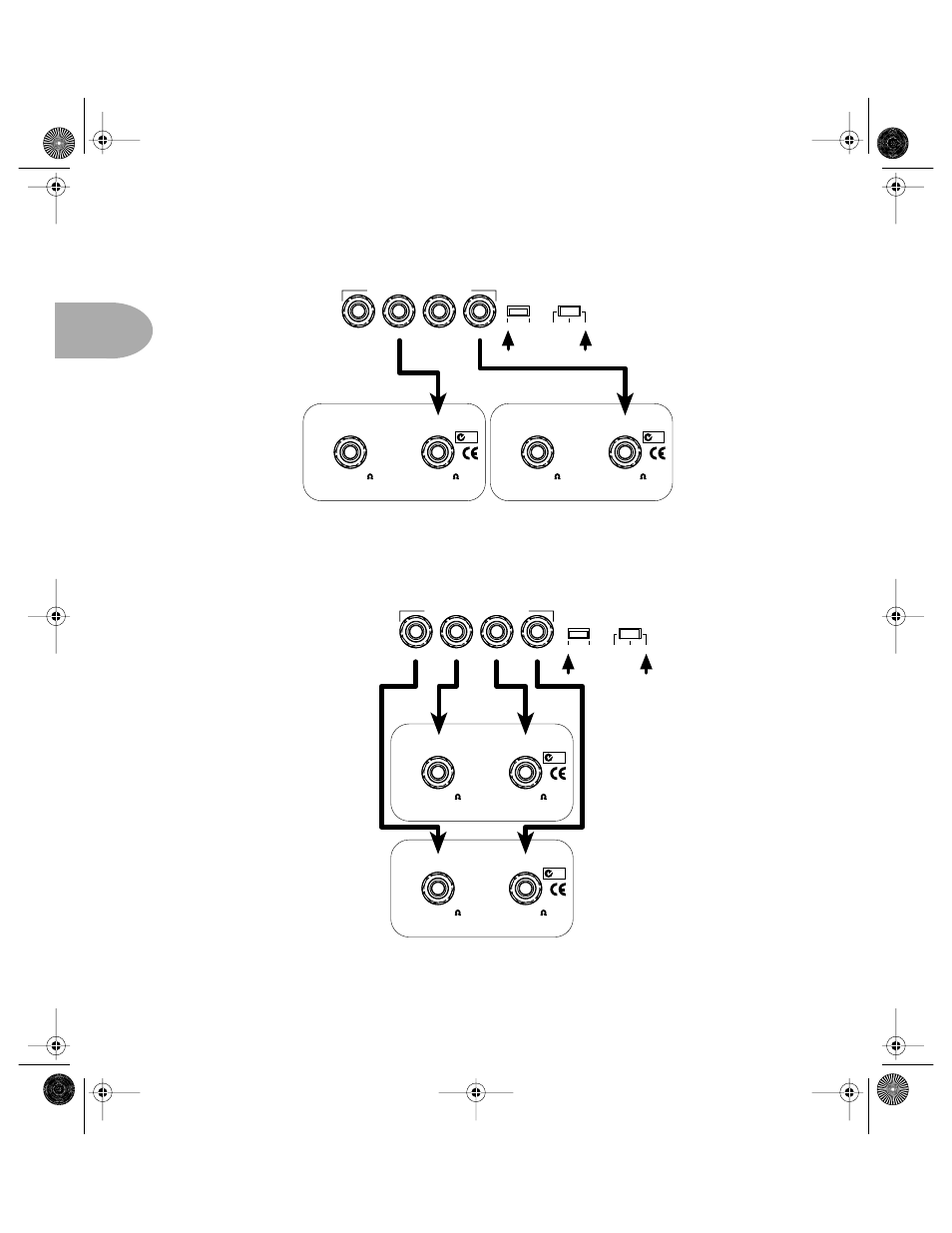

Hooking up your HD in side by side stereo with two 2x12s
Hooking up your HD in stacked stereo with two 2x12s
LEFT RIGHT
STEREO - 8
USE BOTH JACKS
80 WATTS MAX PER SPEAKER
MONO - 4
THIS JACK ONLY
160 WATTS TOTAL MONO
N222
LEFT RIGHT
STEREO - 8
USE BOTH JACKS
80 WATTS MAX PER SPEAKER
MONO - 4
THIS JACK ONLY
160 WATTS TOTAL MONO
N222
*
*If you are using an open
back cabinet such as the
Duoverb Extension
Cabinet select OPEN
CABINET MODELING. OUTPUT
IMPEDANCE
4 OHMS
CABINET
MODELING
OPEN 8 OHMS CLOSED OFF
RIGHT LEFT RIGHT
SPEAKER OUTS / CLASS 2 WIRING
LEFT - MONO -
*If you are using an open
back cabinet such as the
Duoverb Extension
Cabinet select OPEN
CABINET MODELING.
LEFT RIGHT
STEREO - 8
USE BOTH JACKS
80 WATTS MAX PER SPEAKER
MONO - 4
THIS JACK ONLY
160 WATTS TOTAL MONO
N222
LEFT RIGHT
STEREO - 8
USE BOTH JACKS
80 WATTS MAX PER SPEAKER
MONO - 4
THIS JACK ONLY
160 WATTS TOTAL MONO
N222
*
OUTPUT
IMPEDANCE
4 OHMS
CABINET
MODELING
OPEN 8 OHMS CLOSED OFF RIGHT LEFT RIGHT
SPEAKER OUTS / CLASS 2 WIRING
LEFT - MONO -
